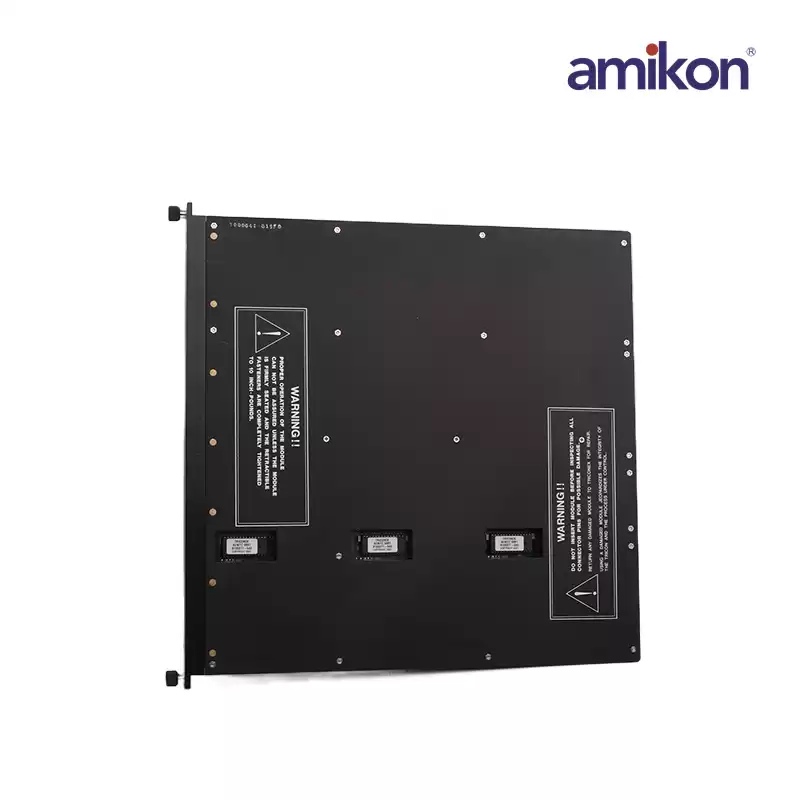

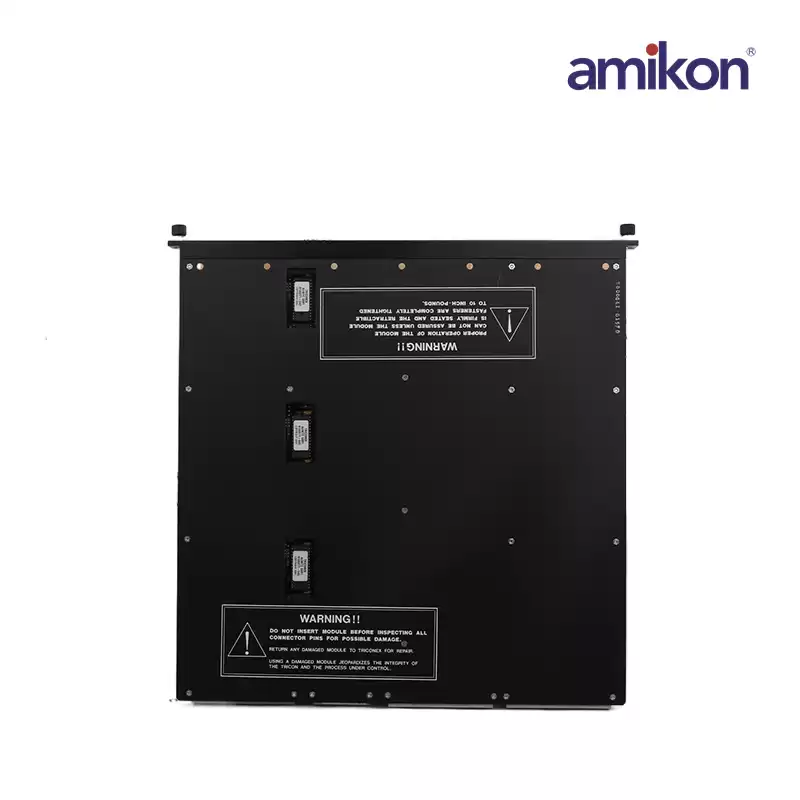

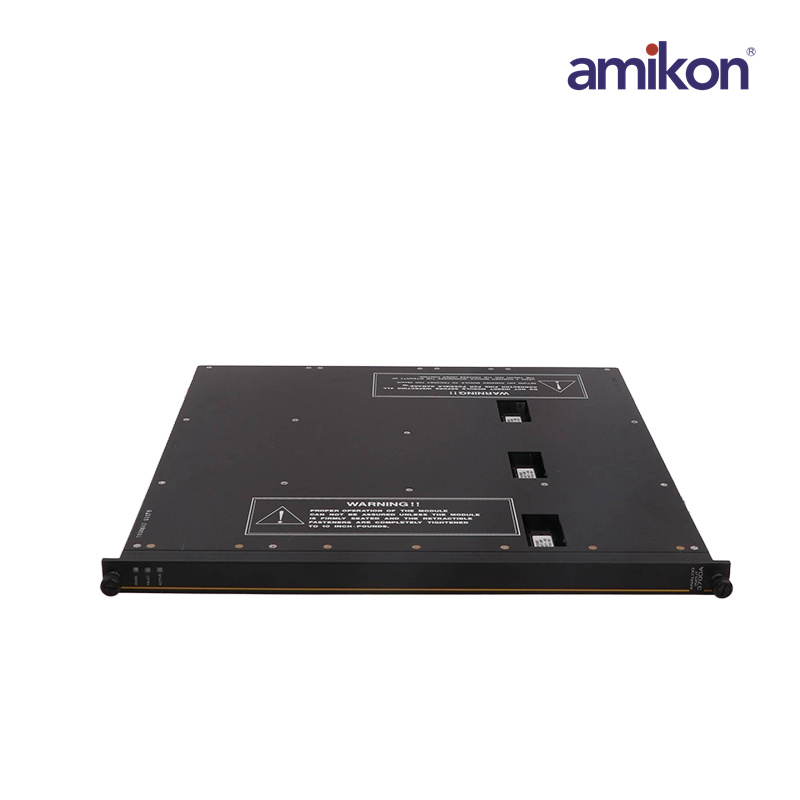

Triconex 3700A Analog Input Module

Weight: 2.85KG

Dimensions ：49x45.3x6.8cm

Voltage:0-5 VDC

Resolution：12 bits

Current Range;0-20 mA

Full Description:Invensys 3700A Analog Input Module KF- Module: KFD2-STC4-Ex1 (single channel)

Triconex 3700A  Analog Input Module

Triconex 3700A is TMR Analog Input Module. An analog input (AI) module includes three independent input channels. Each input channel receives variable voltage signals from each point, converts them to digital values, and transmits the values to the three main processor modules on demand. In TMR mode, one value is then selected using a midvalue selection algorithm to ensure correct data for every scan.

The analog input module requires a separate external termination panel (ETP) with a cable interface to the Tricon backplane. Each module is mechanically keyed for proper installation in a Tricon chassis.Analog input modules support hotspare capability which allows online replacement of a faulty module.
