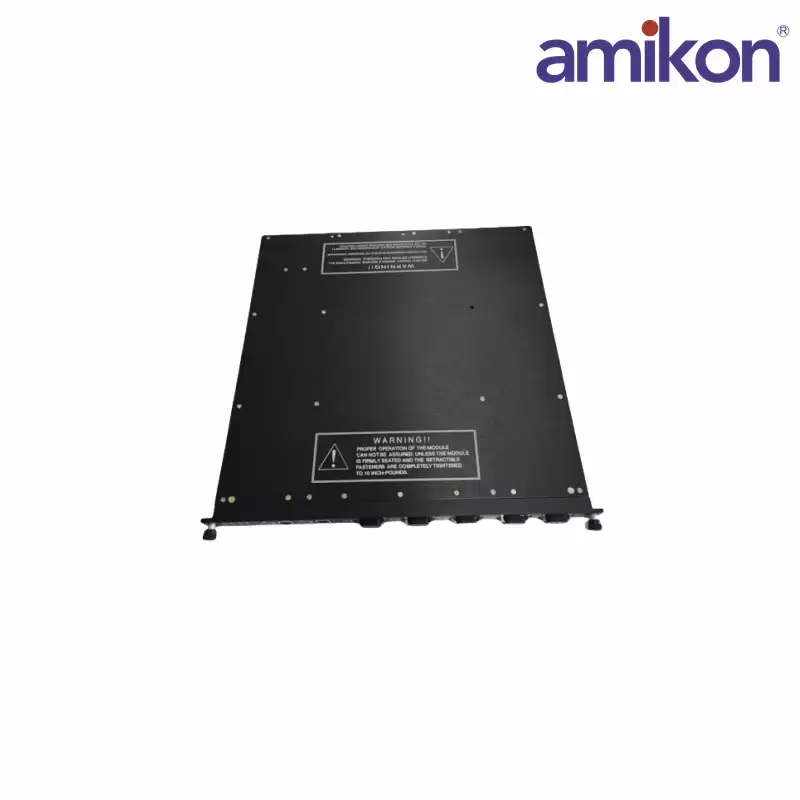

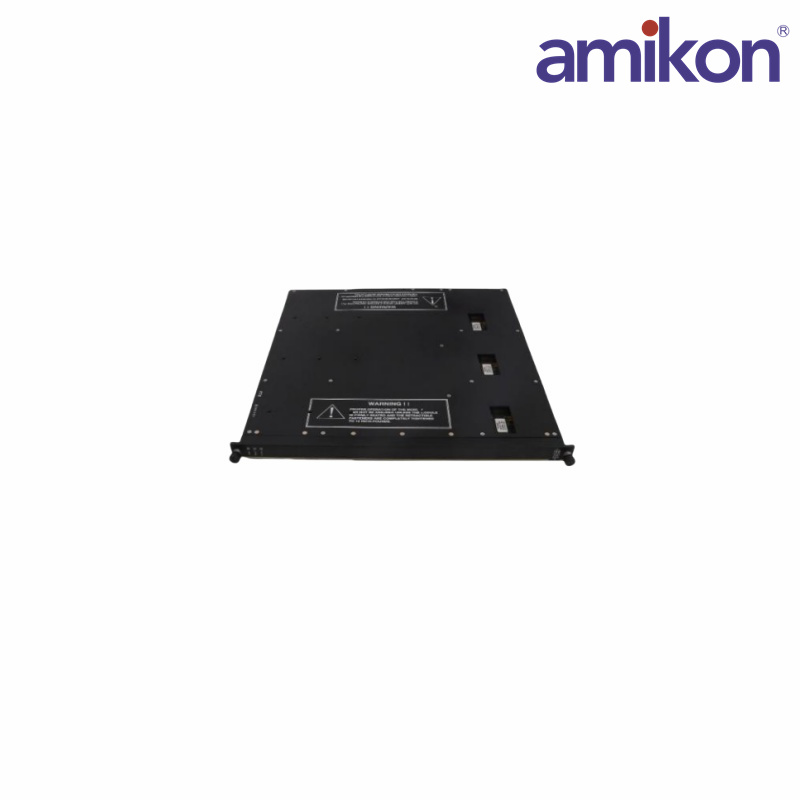

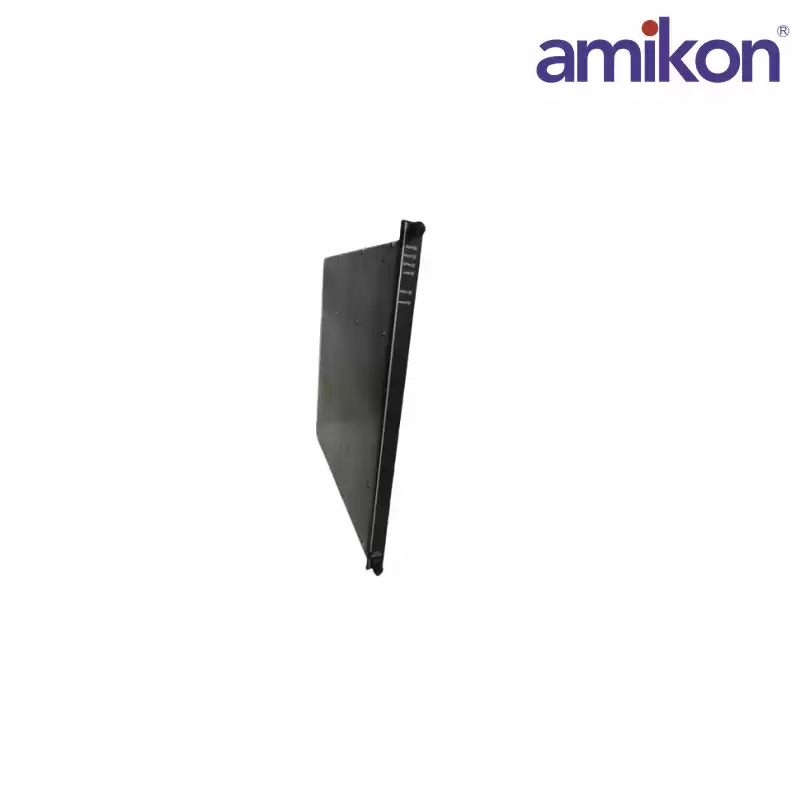

Triconex 3703E Analog Input Module

Weight: 3.2KG

Dimensions ：49x45.3x6.8cm

Voltage:0-5 VDC

Resolution：12 bits

Current Range;0-20 mA

Full Description:Invensys 3703E Isolated Analog Input Module Function: Analog Input + HART Channels: 16

Triconex 3703E Analog Input Modules

Triconex 3703E is Isolated Analog Input Module. The analog input module requires a separate external termination panel (ETP) with a cable interface to the Tricon backplane. Each module is mechanically keyed for proper installation in a Tricon chassis.Each analog input module sustains complete, ongoing diagnostics for each channel. Failure of any diagnostic on any channel activates the Fault indicator for the module, which in turn activates the chassis alarm signal.

The module’s Fault indicator merely reports a channel fault, not a module failure—the module can operate properly with as many as two faulty channels. In TMR mode, one value is then selected using a midvalue selection algorithm to ensure correct data for every scan.
