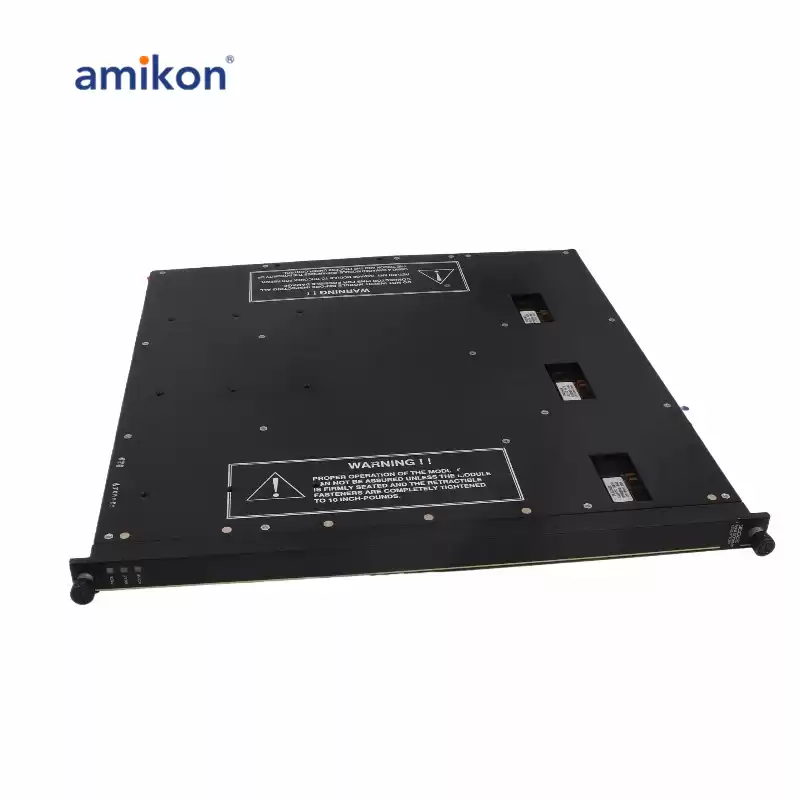

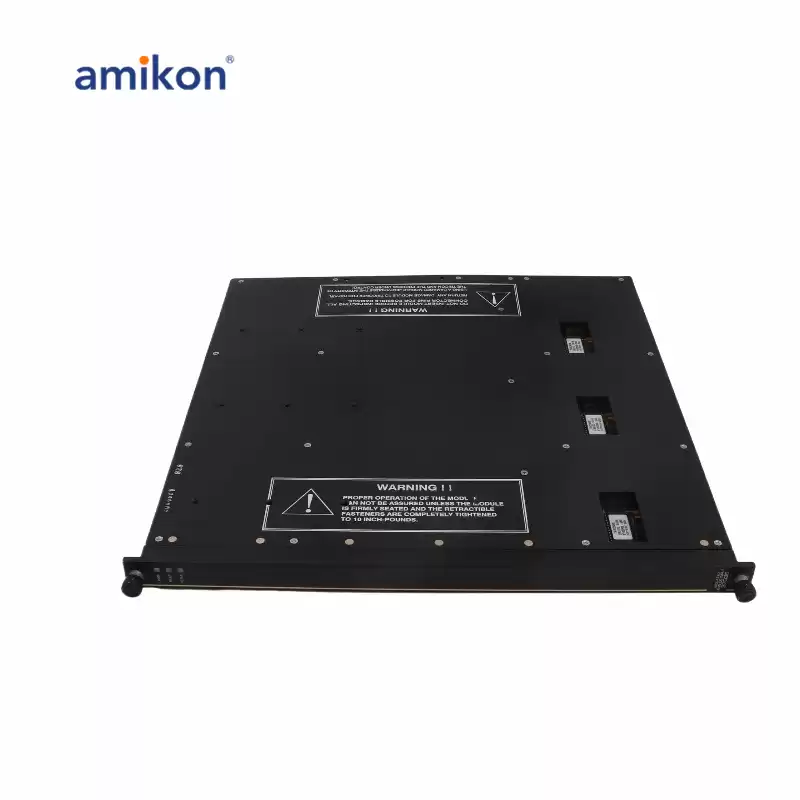

Triconex 3703E Isolated Analog Input Module

Brand new and original sealed//Same Day Shipment

3703E is Termination Board.An analog input (AI) module includes three independent input channels. Each input channel receives variable voltage signals from each point, converts them to digital values, and transmits the values to the three main processor modules on demand.
3703E Description:	Voltage 0-5V or 0-10V1, + 6% Type TMR, AI No. of Input Points 16, diff, isolated Isolated Points Yes Input Update Rate 50 ms Resolution 12 bits Accuracy < .15% of FSR, from 0° to 60°C
	Input Resistance (load) 30 MΩ (DC), min. Power-Off Resistance 30 MΩ (DC), min. Common Mode Rejection -90 dB @ 60Hz, min. -100 dB @ DC, min. Common Mode Range +200V peak
	In TMR mode, one value is then selected using a midvalue selection algorithm to ensure correct data for every scan.
