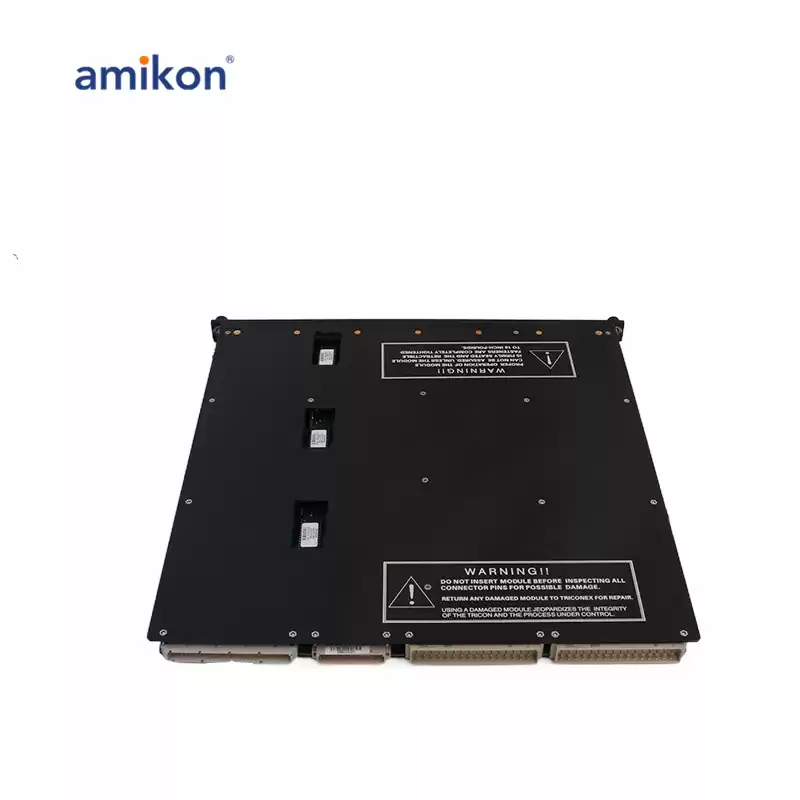

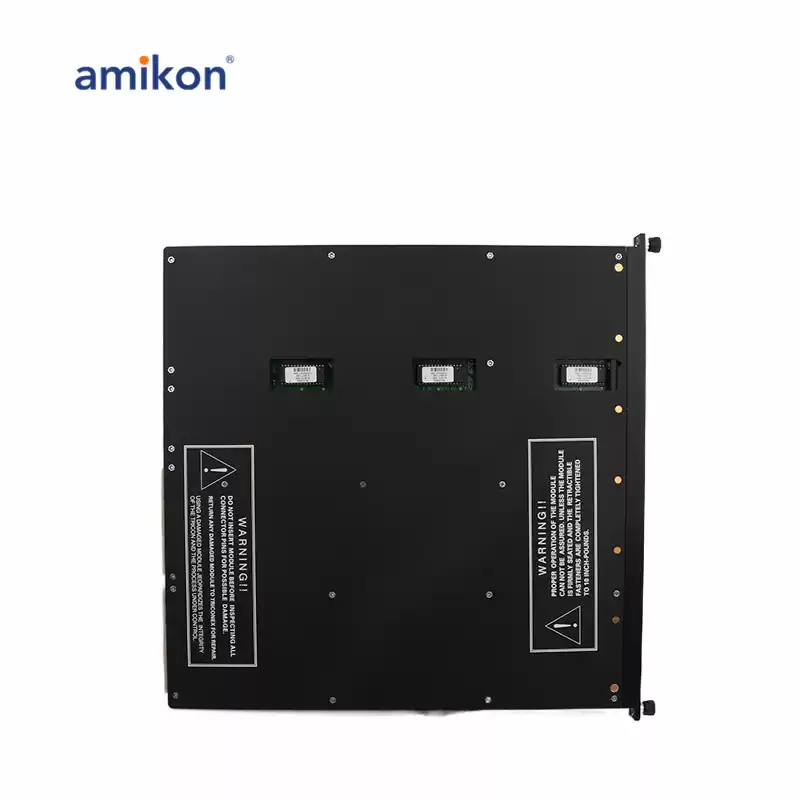

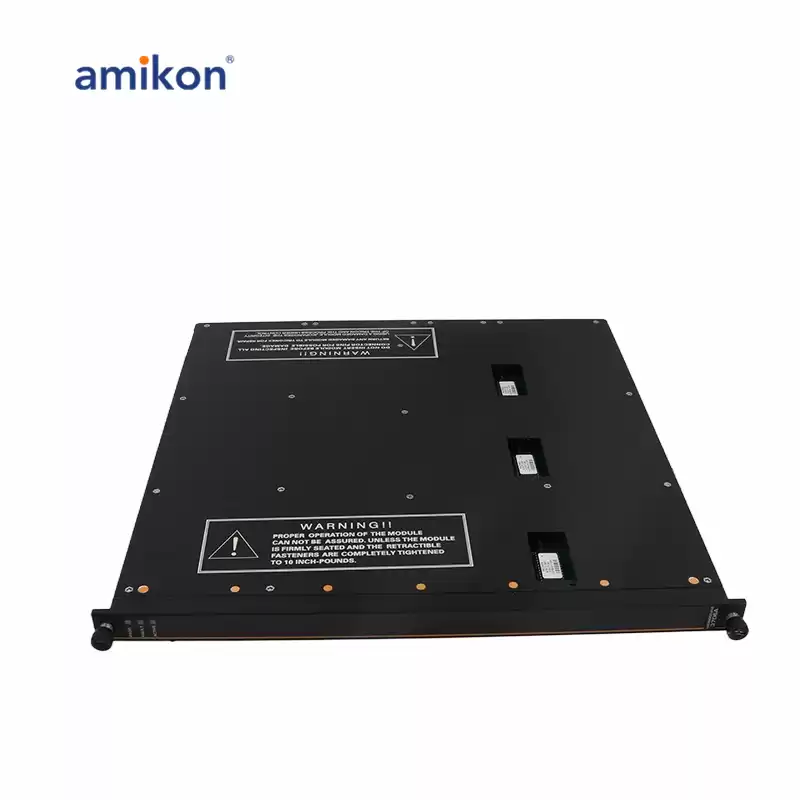

Triconex 3706A Analog Input Module

Brand new and original sealed//Same Day Shipment

Triconex 3706A is Thermocouple Input Module. A thermocouple input (TC) module includes three independent input channels. Each input channel receives variable voltage signals from each point.
3706A Description:	Each channel then transmits 16-bit signed integers representing 0.125 degrees per count to the three main processors on demand.
	The thermocouple input module supports hot-spare capability which allows online replacement of a faulty module.
	Normal mode -17 dB @ 60 Hz Common mode range ∮10 VDC max. (channel-to-channelor channel-to-ground) Leg-to-leg isolation 200 KΩ, typical Input point protection 110 VAC, continuous Reference junction compensation range 32°-140°F (0°-60°C)
