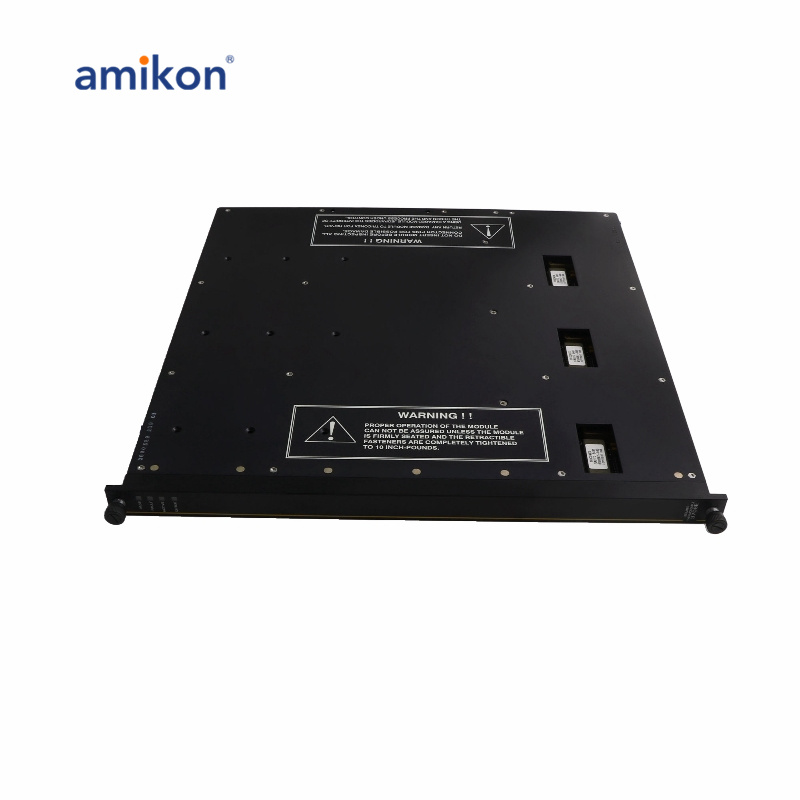

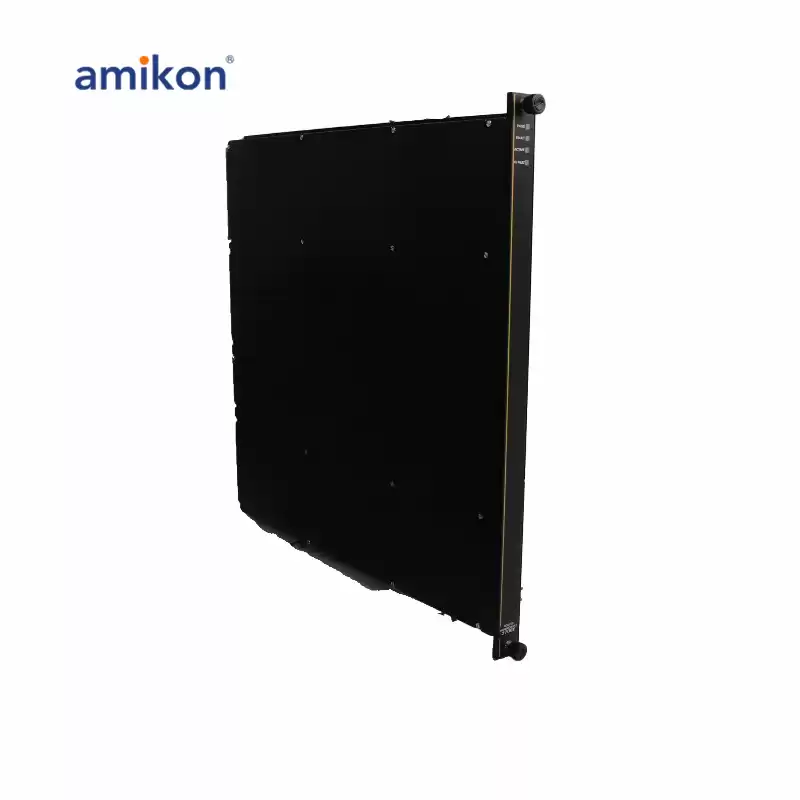

Triconex 3708E Outpout Module

Brand new and original sealed//Same Day Shipment

Leg-to-leg isolation 20 KΩ, typical Input point protection 110 VAC, continuous Reference junction compensation range 32°-140°F (0°-60°C) Diagnostic indicators PASS, FAULT, ACTIVE, CJ FAULT Color code Deep yellow
3708E Data sheet	Type TMR, thermocouple Number of input signals 16 differential, isolated Isolated points Yes Input update rate 50 ms
	Thermocouple types supported2 J, K, T, E Accuracy/temp range See Table B Input resistance (load) 30 MΩ (DC), minimum Noise rejection
	Common mode -90 dB @ 0-60 Hz, minimum -100 dB @ DC, minimum Normal mode -3 dB @ 8 Hz, typical -17 dB @ 60 Hz, typical Common mode range ∮200 VDC, max (channel-to-channel or channel-to-ground)
Award-winning service	More than 25 in stock	Full 12-month warranty	We deliver worldwide
