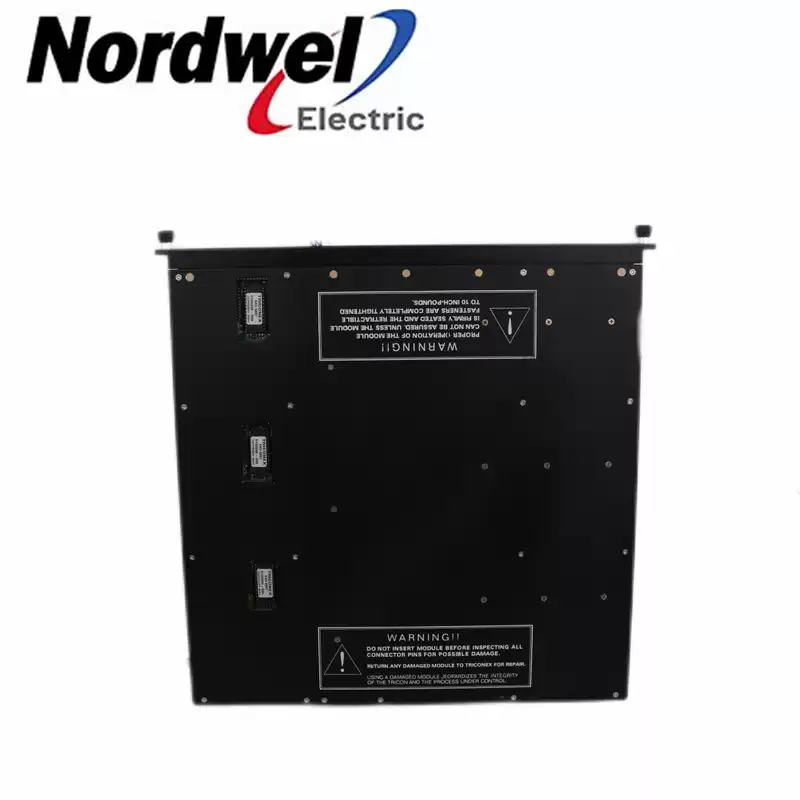

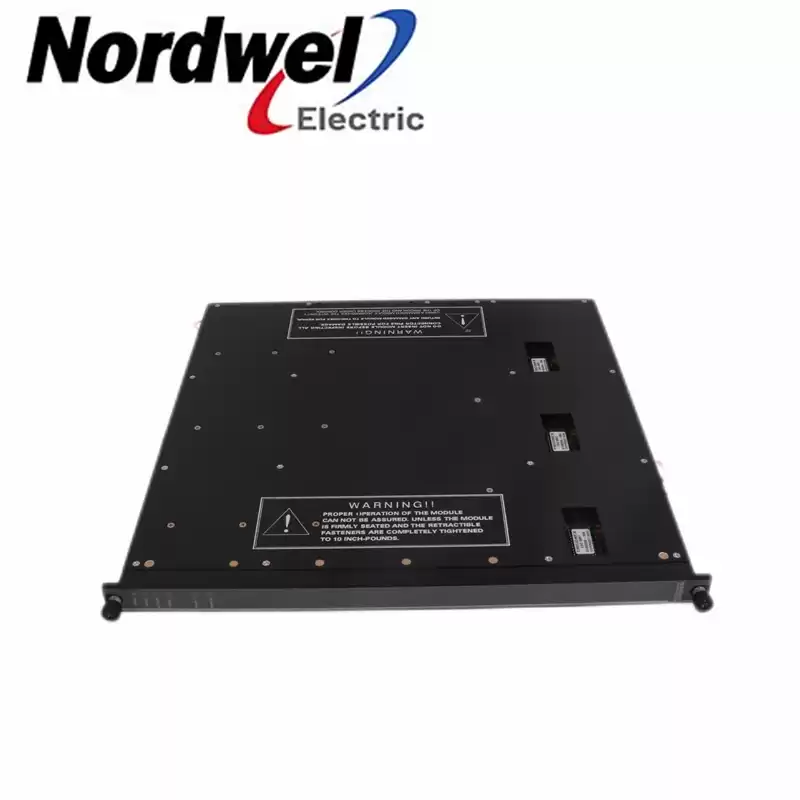

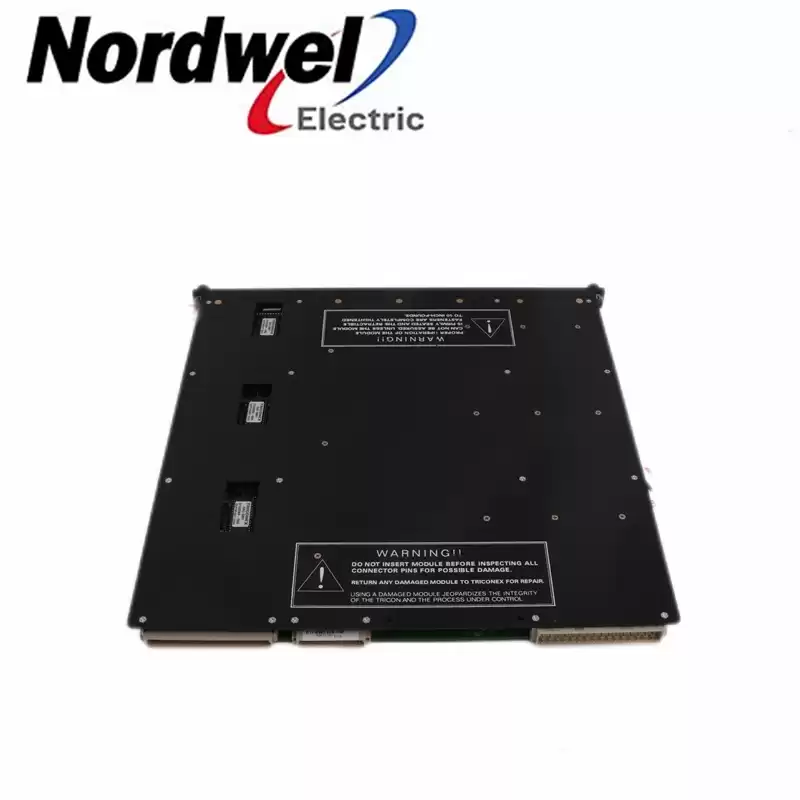

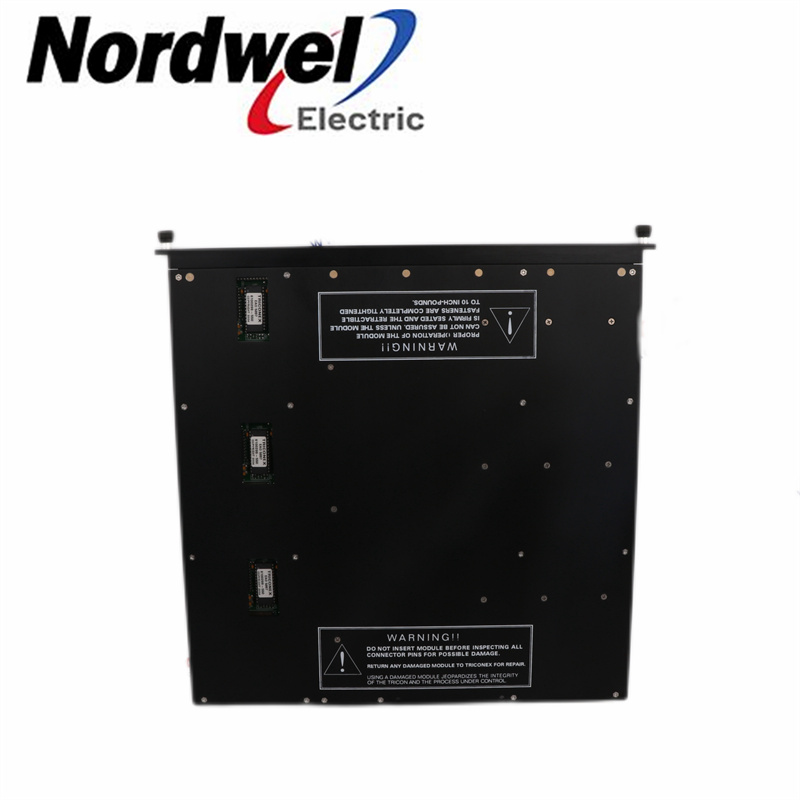

Original new and factory-sealed 3805EN in stock!!!
Color code Pea green
Number of output points 8, output, commoned return, DC-coupled
Resolution 12 bits
Output current range 4–20 mA (+6% over-range)
Output over-range capability 2–21.2 mA
Output accuracy < 0.25% (in range of 4–20 mA) of
FSR (0–21.2 mA), from 0° to 60° C
External loop power (reverse voltage protected) +42.5 VDC maximum
+24 VDC nominal
Output loop power requirement: load Required
Output loop power requirement: 250 Ω load > 20V (1 A minimum)
Output loop power requirement: 500 Ω load > 25V (1 A minimum)
Output loop power requirement: 750 Ω load > 30V (1 A minimum)
Output loop power requirement: 1000 Ωload > 35V (1 A minimum)
