Products Detail:

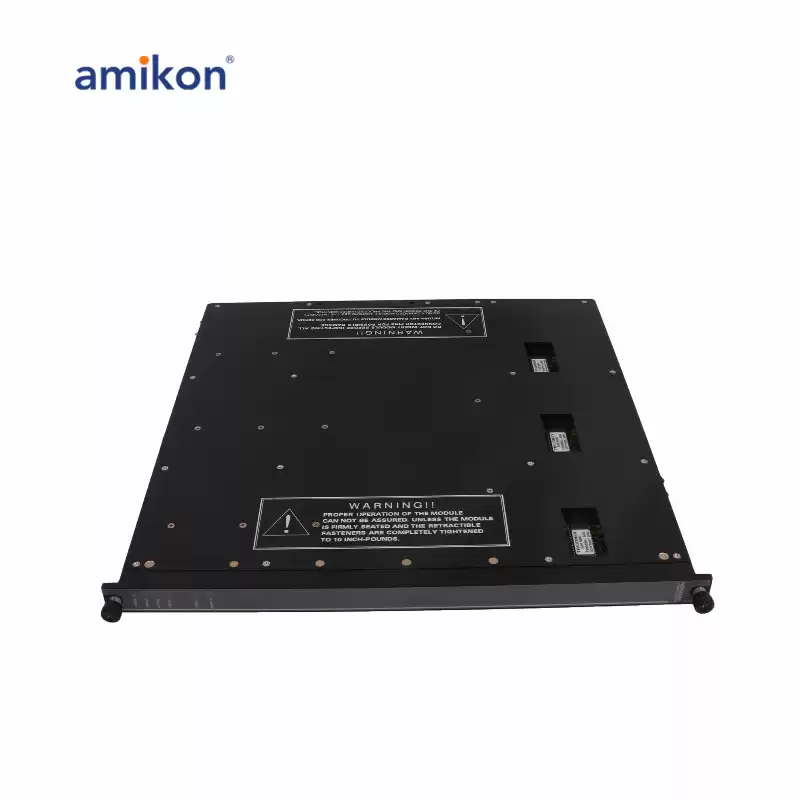

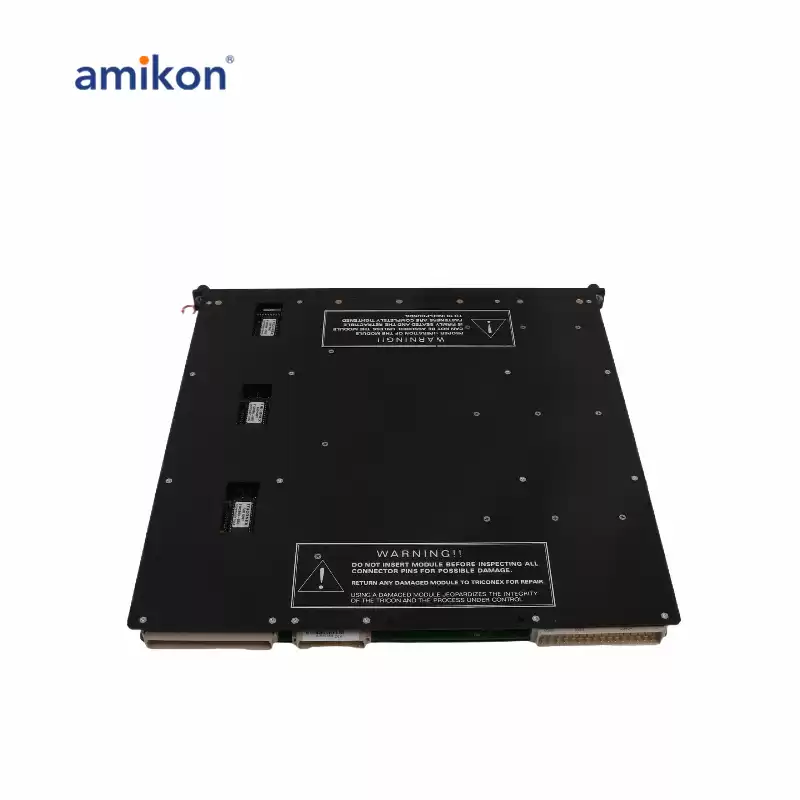

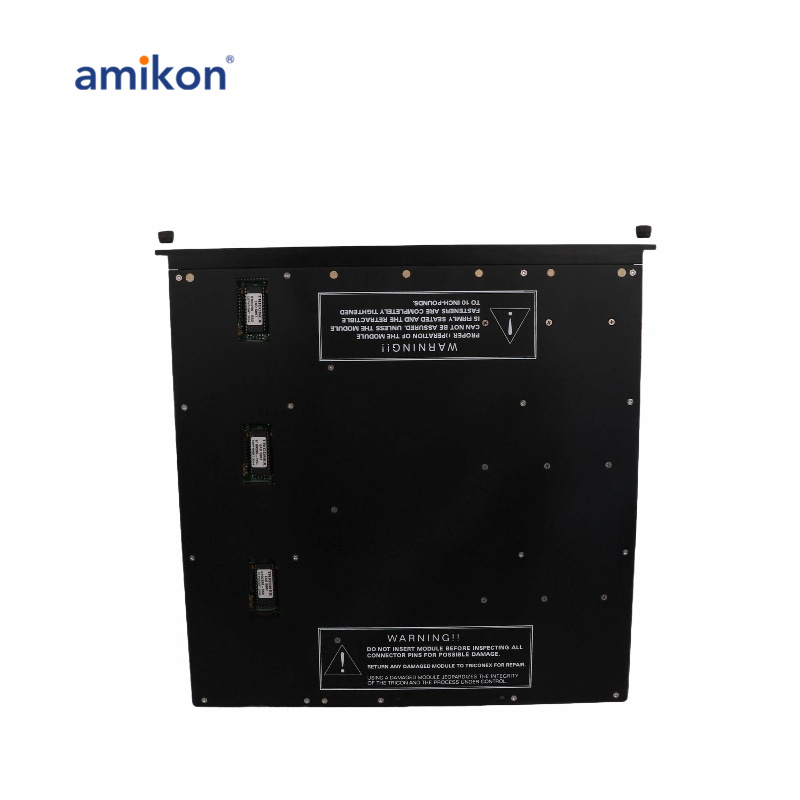

The 3805EN Analog Output Module is designed to receive output signals from the main processor module across three channels. The data from each channel is voted upon, and the healthiest channel is selected to drive the module's eight analog outputs.
This module also monitors its own current outputs (measured as input voltages) and maintains an internal voltage reference for self-calibration. Additionally, it provides valuable module health information to ensure optimal performance.
The 3805EN supports hot-spare capability, allowing for online replacement of a faulty module without system downtime. It is an 8-point TMR (Triple Modular Redundant) analog output module with a 4-20 mA DC output range, offering a 12-bit resolution for precise control.
With these features, the 3805EN module ensures reliable and continuous operation in critical control systems.
FAQ:
1. What is the function of the 3805EN Analog Output Module?
The 3805EN module is designed to receive output signals from the main processor across three channels. It processes and votes on the data from each channel, selecting the healthiest channel to drive the module's eight analog outputs.
2. What type of outputs does the 3805EN module support?
The module supports 8-point TMR (Triple Modular Redundant) analog outputs with a 4-20 mA DC output range, providing 12-bit resolution for precise control.
3. How does the 3805EN module ensure its own reliability?
The 3805EN module monitors its own current outputs (as input voltages) and maintains an internal voltage reference to provide self-calibration and continuous module health monitoring.
