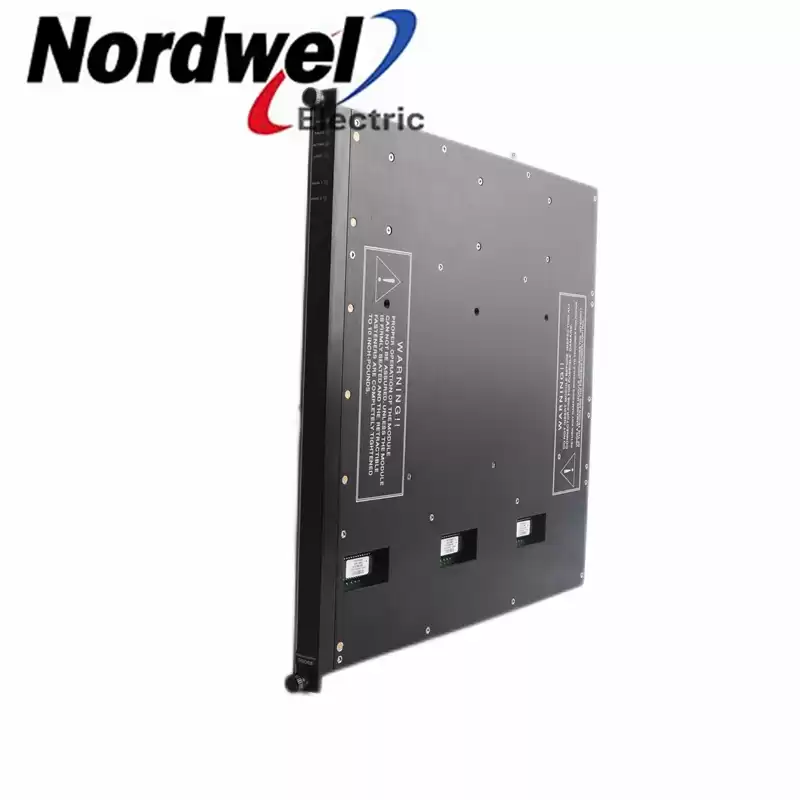

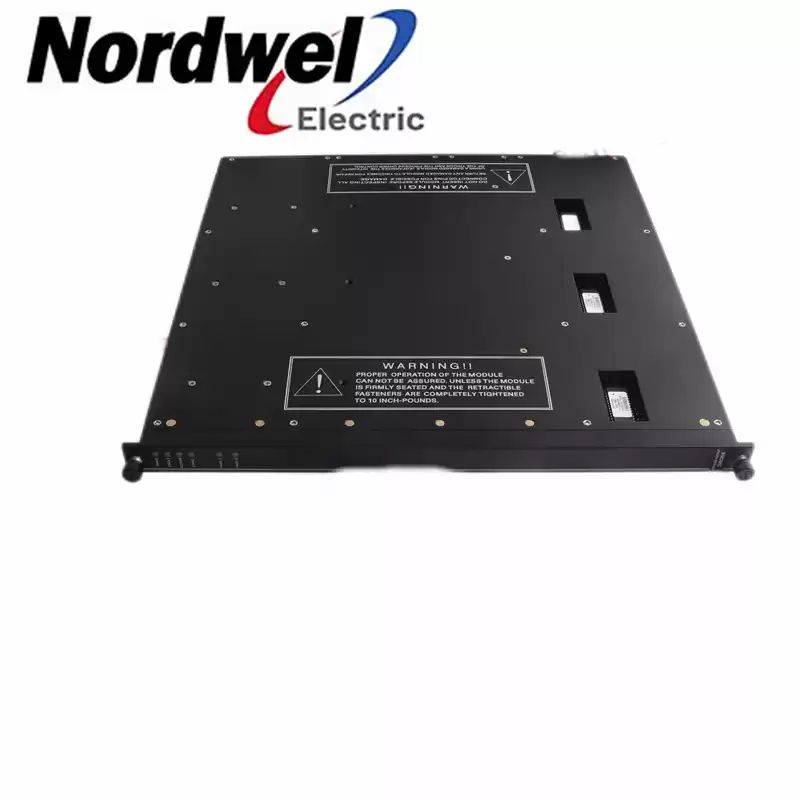

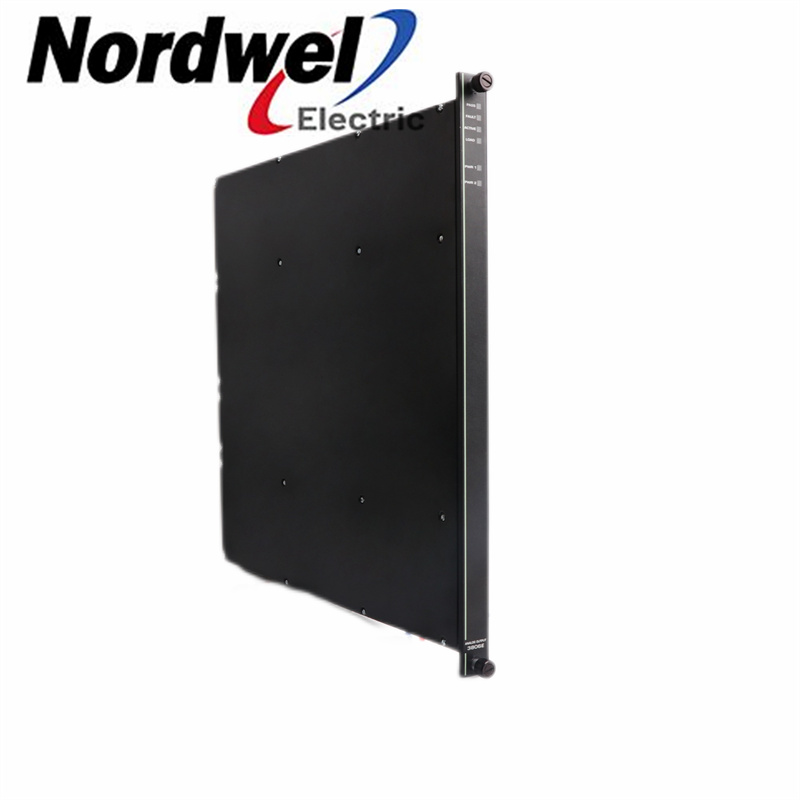

Original new and factory-sealed 3806E in stock!!!
-
Color code Light green
-
Number of output points 6 outputs @ 4–20 mA
-
2 outputs @ 20–320 mA, commoned return, DC coupled
-
Resolution 12 bits
-
Recommended operating voltage range 24–32 VDC, 3 amp minimum
-
Extended operating voltage range 20–36 VDC, 3 amp minimum
-
Over-voltage protection < 42.5 VDC continuous
-
Output current range 4–20 mA
-
Output over-range capability 2–21.2 mA (+6% over-range)
-
Output accuracy < 0.25% (in normal range of 4–20 mA) of
-
FSR (2–21.2 mA), from 0° to 60° C
-
Maximum load vs. external loop voltage ≤ 275 Ω @ 20 VDC
-
≤ 475 Ω @ 24 VDC
-
≤ 650 Ω @ 28 VDC
-
≤ 825 Ω @ 32 VDC
