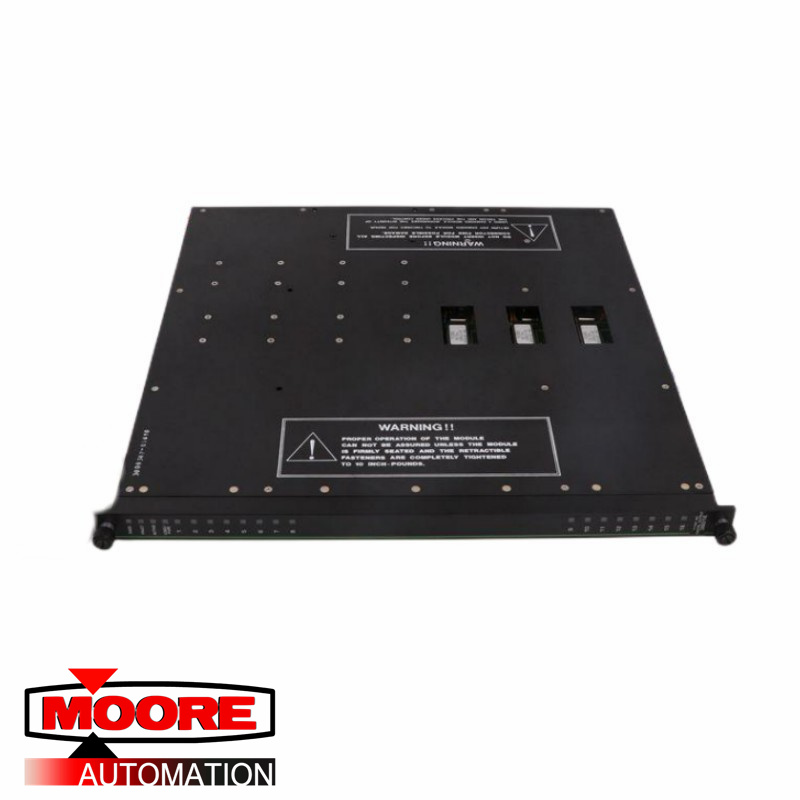

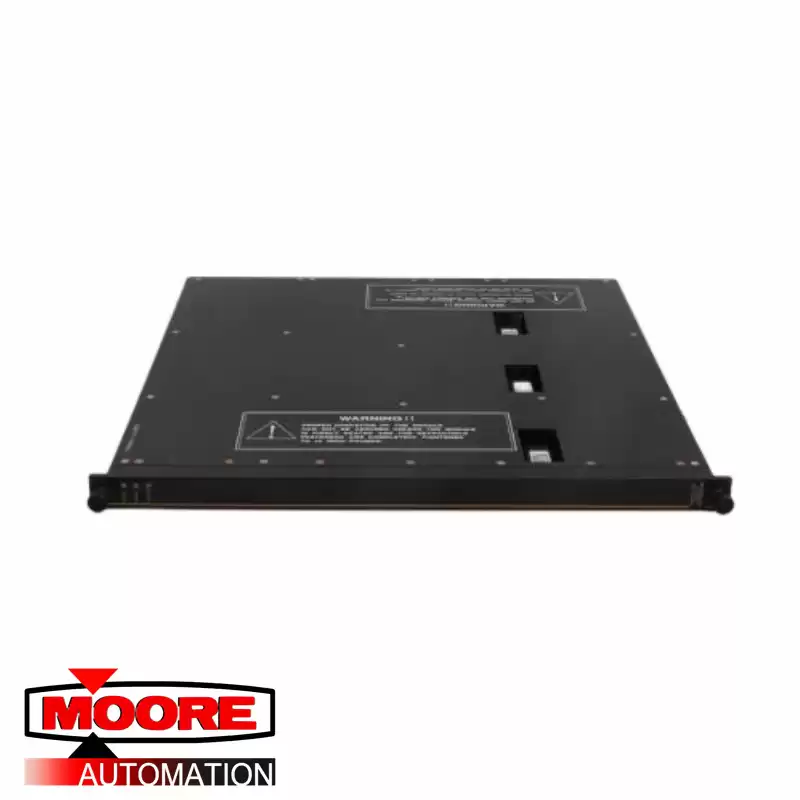

Product Description
Each I/O module transfers signals to or
from the field through its associated
field termination assembly. Two positions in the chassis tie together as one
logical slot. The first position holds the
active I/O module and the second position holds the hot-spare I/O module.
Termination cables are connected to the
top of the backplane. Each connection
extends from the termination module to
both active and hot-spare I/O modules.
Therefore, both the active module and
the hot-spare module receive the same
information from the field termination
wiring.
A program is the highest-level executable logic element in a TriStation
project. It is an assembly of programming language elements (functions,
function blocks, and data variables)
that work together to allow a programmable control system to achieve
control of a machine or a process.
Each program is uniquely identified
by a user-defined type name. A TriStation project can support hundreds of
programs.
