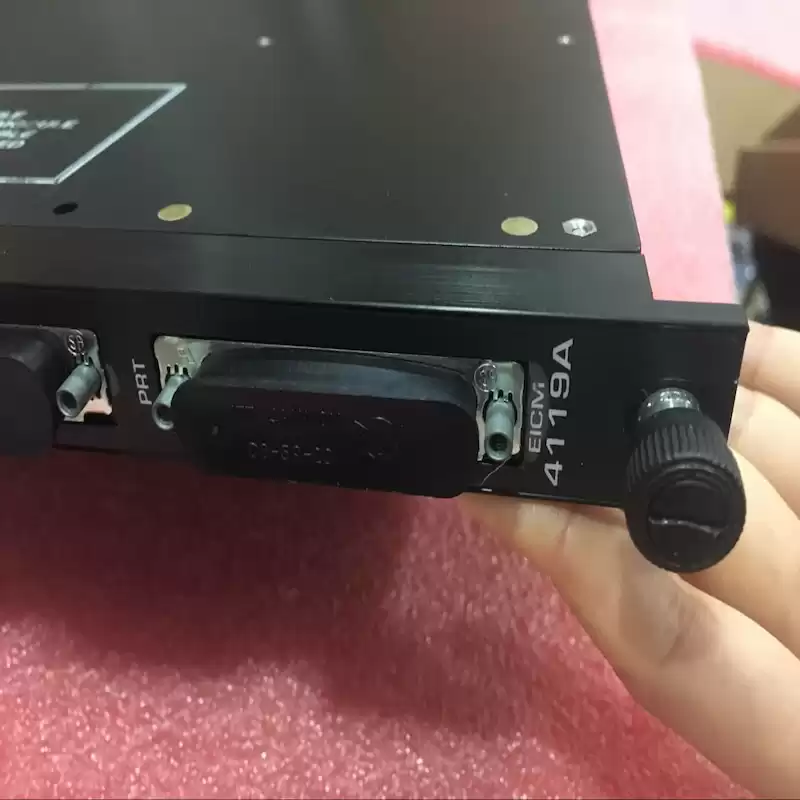

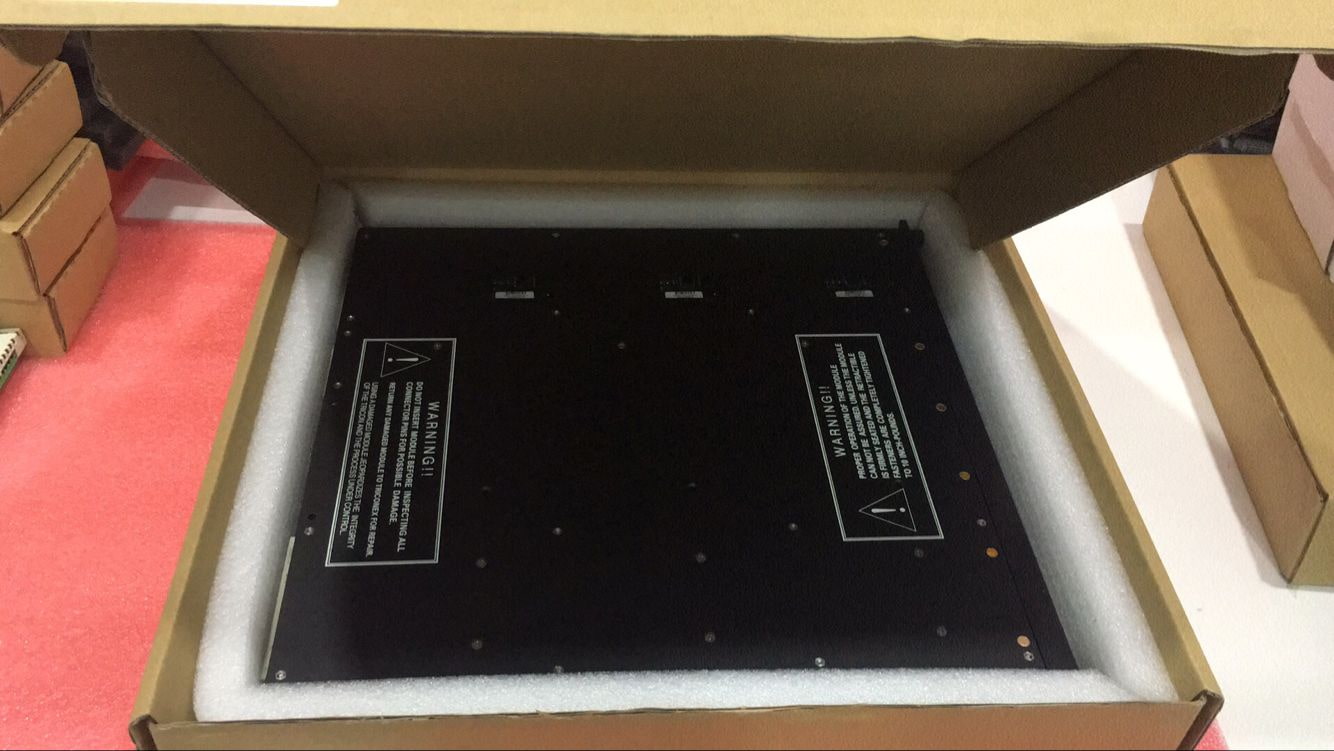

Triconex 4119A Enhanced Intelligent Communication Module

The model 4119A Enhanced Intelligent Communication Module (EICM)

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  Invensys Triconex
 Model  4119A
 Product ID  4119A
 Catalog  Tricon
 Description  Triconex 4119A Enhanced Intelligent Communication Module
 Origin  USA
 Dimension  48.3cm*57.8cm*45.1cm
 Weight  2.3kg



Triconex 4119A Enhanced Intelligent Communication Module

The model 4119A Enhanced Intelligent Communication Module (EICM) allows the Tricon to communicate with Modbus masters and slaves, TriStation and printers.
For Modbus connections, the EICM user can select the RS-232 point-topoint interface for one master and one slave, or the RS-485 interface for one master and up to 32 slaves. The RS-485 network trunk can be one or two twisted-pair wires up to a maximum of 4,000 feet (1,200 meters).
Each EICM contains four serial ports and one parallel port which can operate concurrently. Each serial port can be configured as a Modbus master with up to seven Modbus masters per Tricon chassis. A single Tricon system supports a maximum of two EICMs, which must reside in one logical slot. (The hot-spare feature is not available for the EICM, though you can replace a faulty EICM while the controller is online.) Each serial port is uniquely addressed and supports either theModbus or TriStation interface. Modbus communication can be performed in either RTU or ASCII mode. The parallel port provides a Centronics interface to a printer.



 » Datasheet Link

Triconex 4119A Enhanced Intelligent Communication Module Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
