Technical Specifications for 3706A
|
Manufacturer
|
Triconex
|
|
Condition
|
100% New Original
|
|
Brand
|
Triconex
|
Voltage
|
±10 VDC
|
|
Part Number
|
3706A
|
Input resistance
|
22 MΩ (DC)
|
|
Product Name
|
Thermocouple Input Module
|
Current Range
|
0-20 mA
|
|
Manufacture Year
|
2021
|
Input update rate
|
50 ms
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|
About 3706A
|

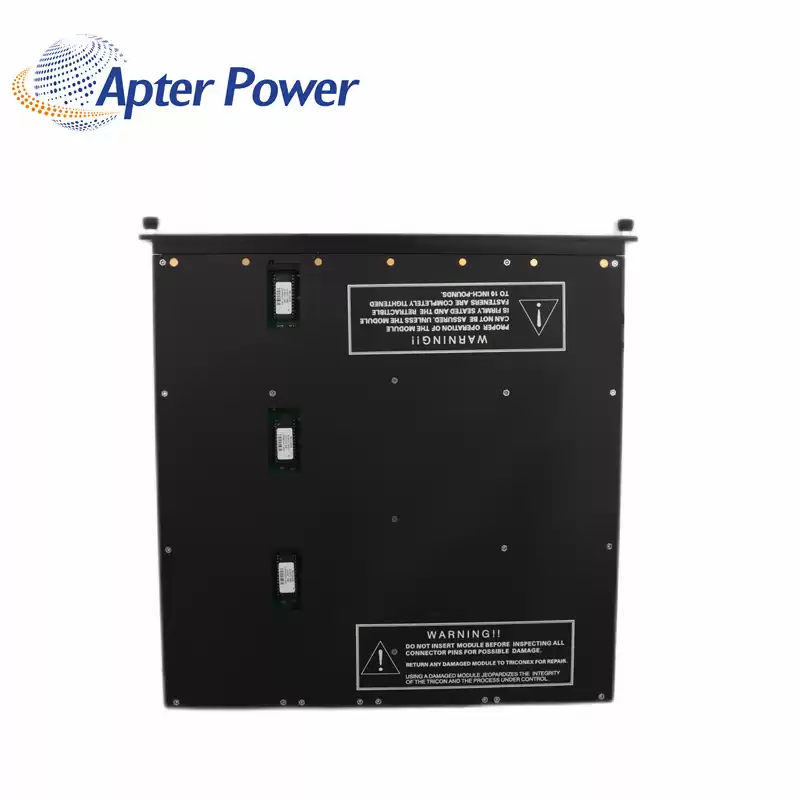

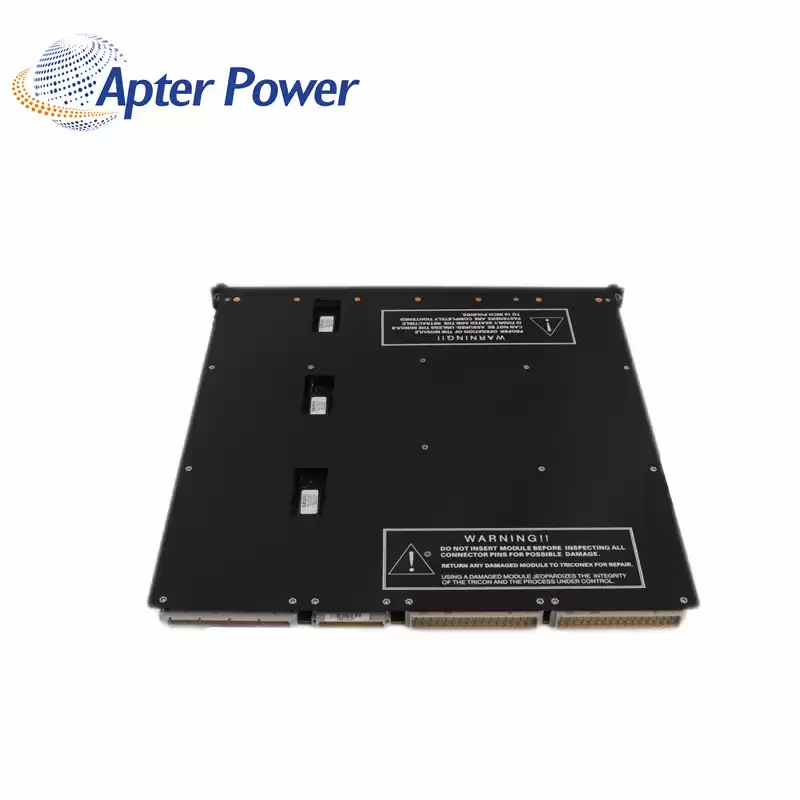

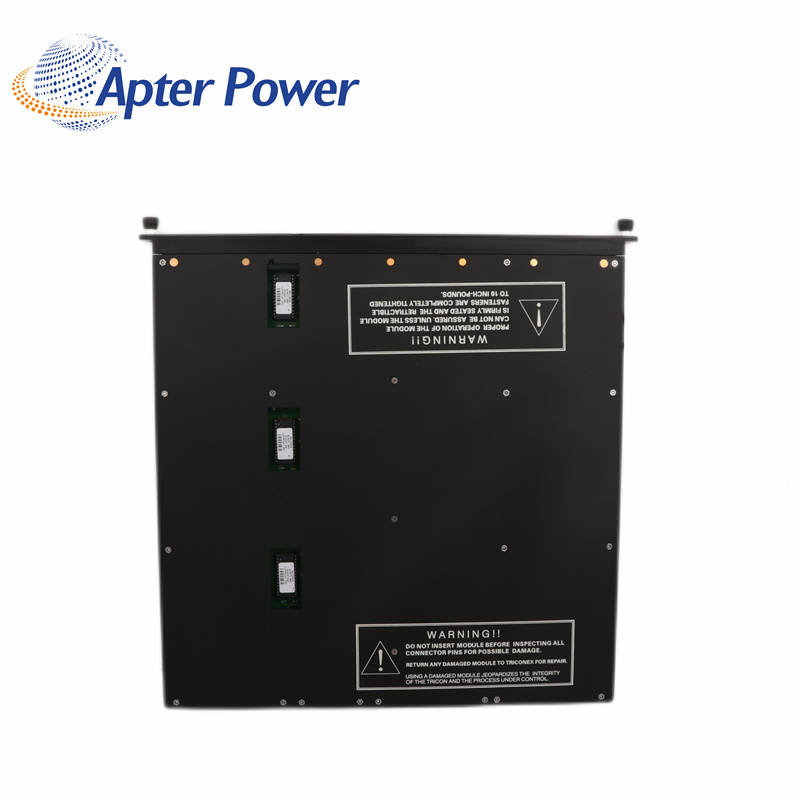

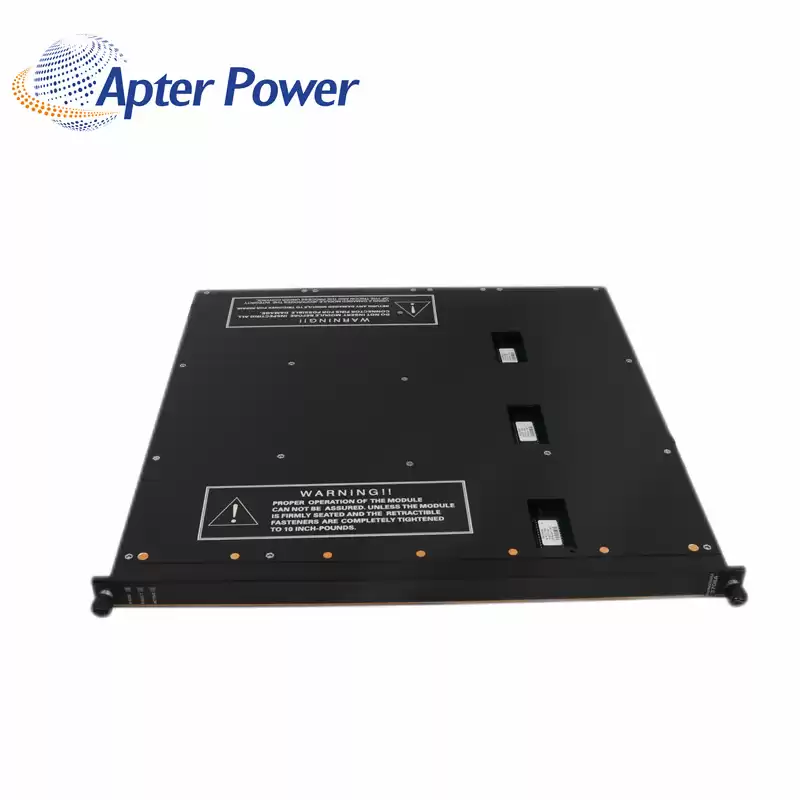

Triconex 3706A is Thermocouple Input Module. A thermocouple input (TC) module
includes three independent input channels. Each input channel receives variable voltage signals from each point,
performs thermocouple linearization
and cold-junction compensation, and
converts the result to degrees Celsius or
Fahrenheit. Each channel then transmits 16-bit signed integers representing
0.125 degrees per count to the three
main processors on demand.
In TMR
mode, a value is then selected using a
mid-value selection algorithm to ensure
correct data for every scan.The thermocouple input module
supports hot-spare capability which
allows online replacement of a faulty
module.The thermocouple input
module requires a separate external
termination panel (ETP) with a cable
interface to the Tricon backplane.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
