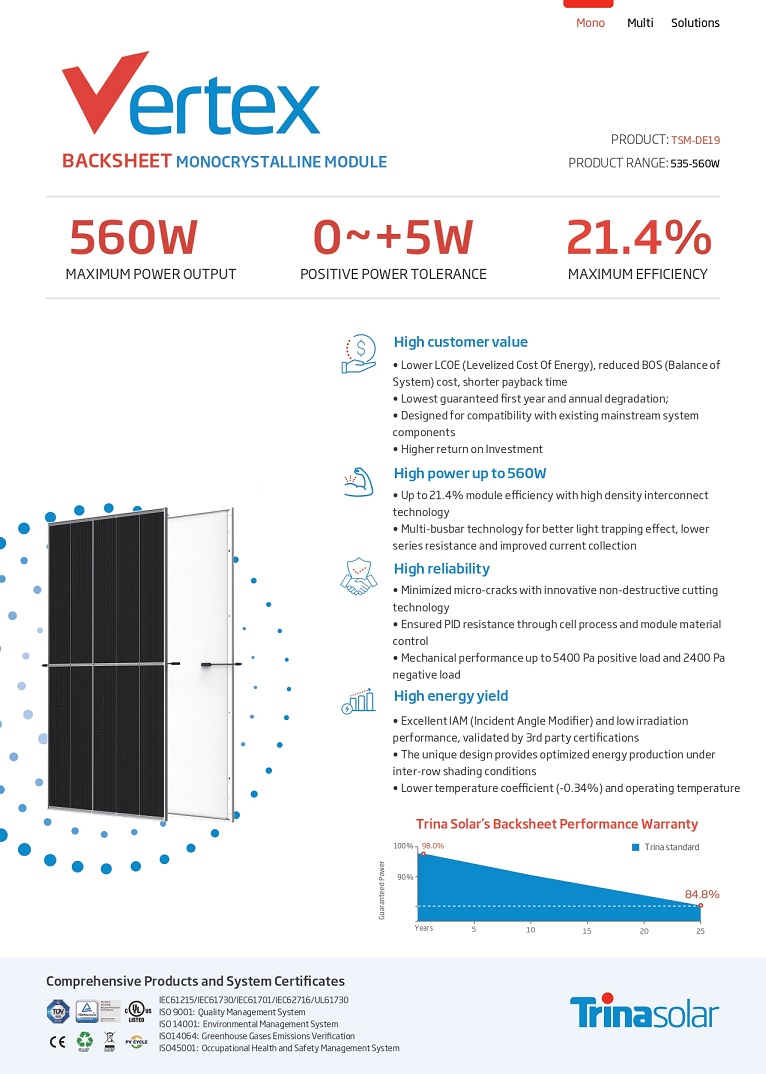

High customer value
• Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of
System) cost, shorter payback time
• Lowest guaranteed first year and annual degradation;
• Designed for compatibility with existing mainstream system
components
• Higher return on Investment
High power up to 560W
• Up to 21.4% module efficiency with high density interconnect
technology
• Multi-busbar technology for better light trapping effect, lower
series resistance and improved current collection
High reliability
• Minimized micro-cracks with innovative non-destructive cutting
technology
• Ensured PID resistance through cell process and module material
control
• Mechanical performance up to 5400 Pa positive load and 2400 Pa
negative load
High energy yield
• Excellent IAM (Incident Angle Modifier) and low irradiation
performance, validated by 3rd party certifications
• The unique design provides optimized energy production under
inter-row shading conditions
• Lower temperature coefficient (-0.34%) and operating temperature

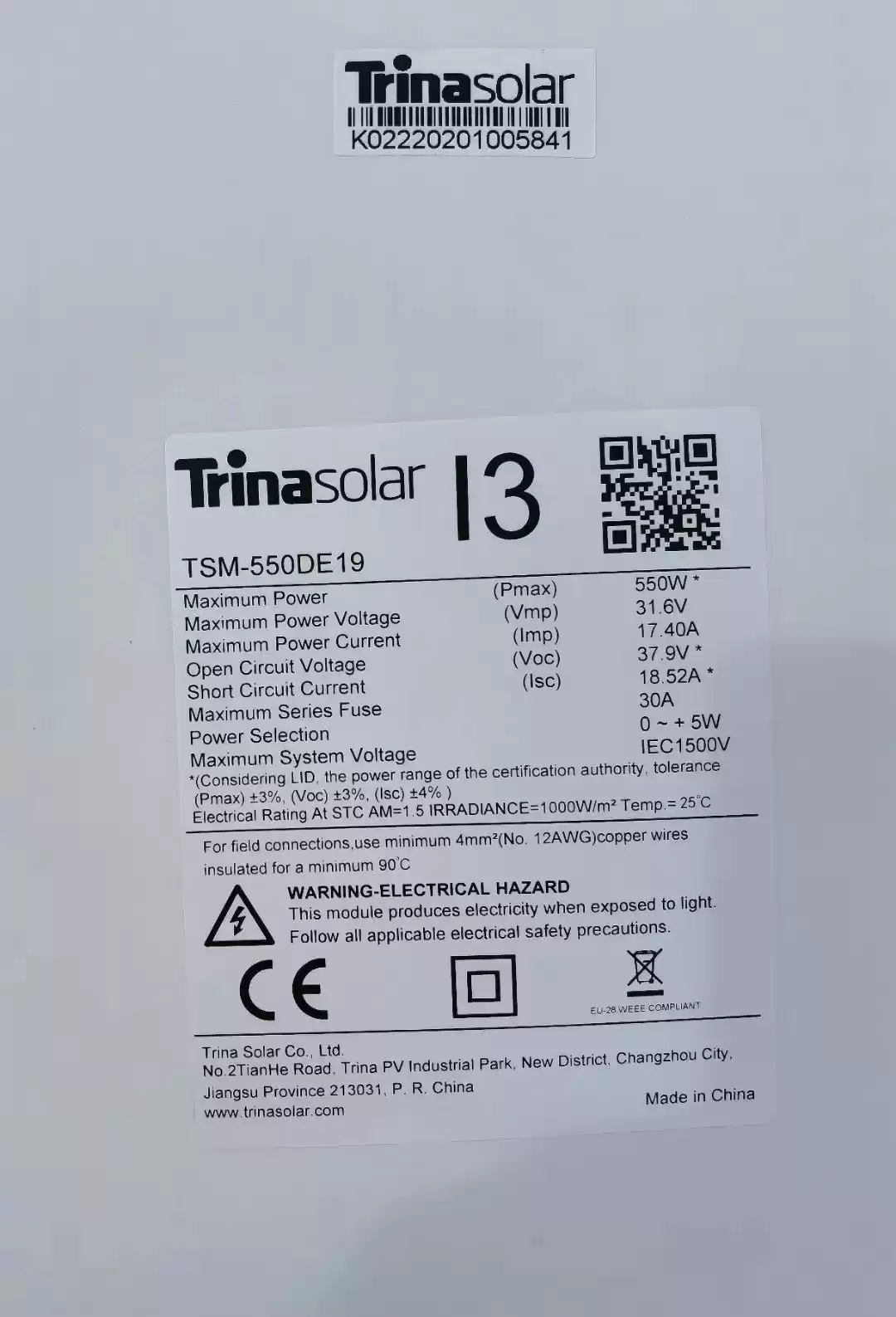

Electrical Specification
| Module Type |
Vertex 550W |
Vertex 555W |
Vertex 560W |
| Maximum power (Pmax/W) |
550 |
555 |
560 |
| Open-circuit voltage (Voc/V) |
37.9 |
38.1 |
38.3 |
| Short circuit current (Isc/A) |
18.52 |
18.56 |
18.60 |
| Peak power voltage (Vmp/V) |
31.6 |
31.8 |
32.0 |
| Peak power current (Imp/A) |
17.4 |
17.45
|
17.49 |
1.Three times EL test to ensure best quality
2.Superior Warranty-12 years products warranty 25 years linear power output warranty
3.Ideal choice for utility and commercial scale projects by reduced BoS and improved ROI
4.Excellent wind load 2400Pa & snow load 5400Pa under certain installation method
FAQ：
What watts of this panel?
Mono 550w 560W solar panel
What dimension of this panel?
2384 ×1096× 35 mm
How Many pcs quantity of one container? How much is the loading quantity and shipping method?

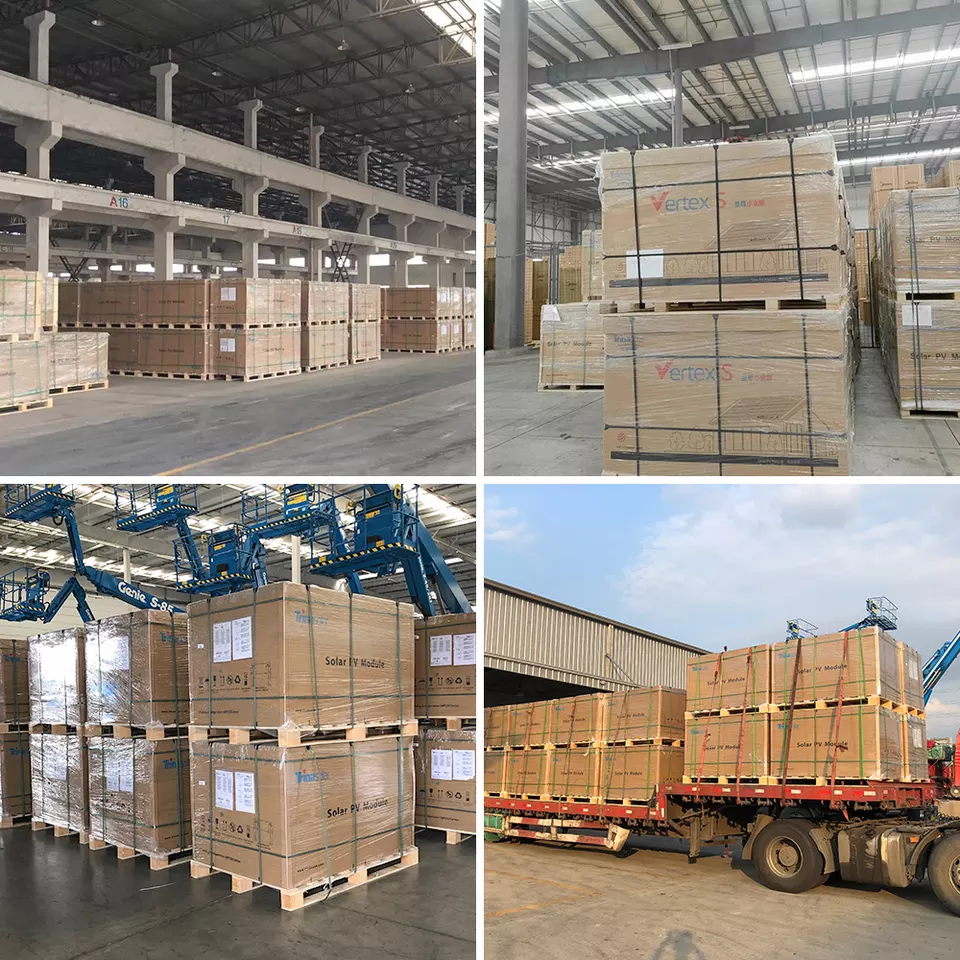

31pcs/pallet. 682pcs/40HQ;Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.
How long is the Delivery time?
Normally production will takes around 10 workings days, depends on the order quantity.
