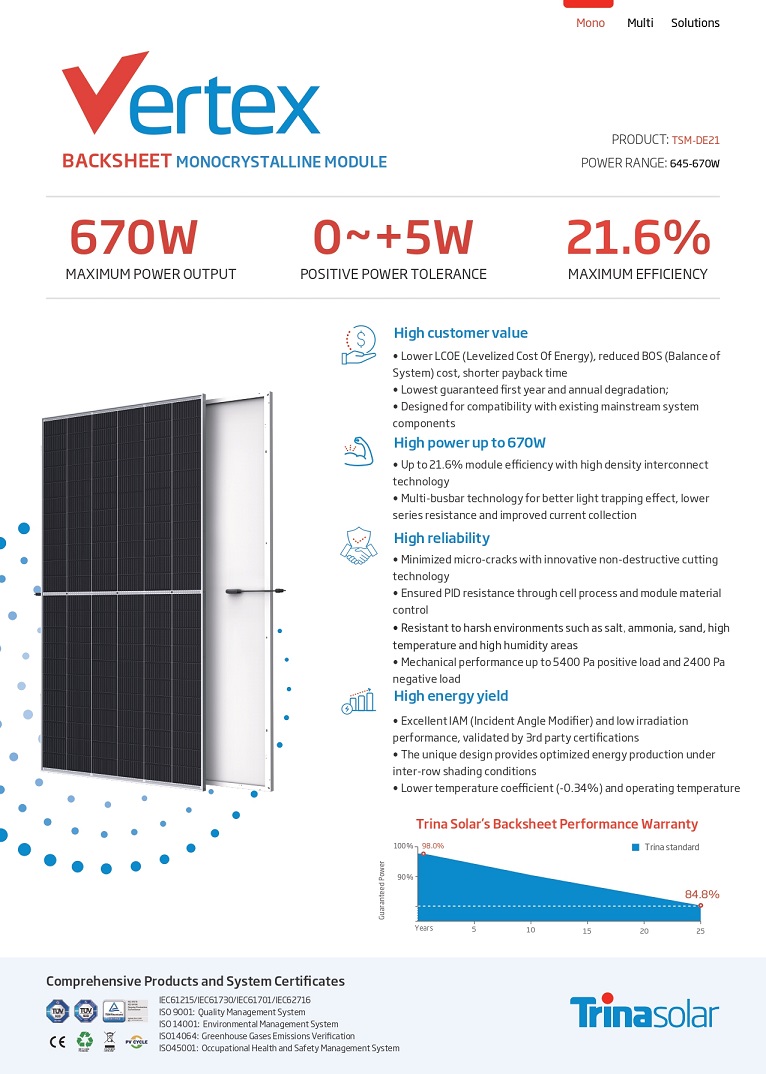

High power up to 670W
• Up to 21.6% module efficiency with high density interconnect
technology
• Multi-busbar technology for better light trapping effect, lower
series resistance and improved current collection
High reliability
Minimized micro-cracks with innovative non-destructive cutting
technology
• Ensured PID resistance through cell process and module material
control
• Resistant to harsh environments such as salt, ammonia, sand, high
temperature and high humidity areas
• Mechanical performance up to 5400 Pa positive load and 2400 Pa
negative load
High energy yield
• Excellent IAM (Incident Angle Modifier) and low irradiation
performance, validated by 3rd party certifications
• The unique design provides optimized energy production under
inter-row shading conditions
• Lower temperature coefficient (-0.34%) and operating temperature
Electrical Specification
| Module Type |
Vertex 660W |
Vertex 665W |
Vertex 670W |
| Maximum power (Pmax/W) |
660 |
665 |
670 |
| Open-circuit voltage (Voc/V) |
45.7 |
45.9 |
46.1 |
| Short circuit current (Isc/A) |
18.53 |
18.57 |
18.62 |
| Peak power voltage (Vmp/V) |
37.8 |
38.0 |
38.2 |
| Peak power current (Imp/A) |
17.47 |
17.51
|
17.55 |
1.Three times EL test to ensure best quality
2.Superior Warranty-12 years products warranty 25 years linear power output warranty
3.Ideal choice for utility and commercial scale projects by reduced BoS and improved ROI
4.Excellent wind load 2400Pa & snow load 5400Pa under certain installation method
FAQ：

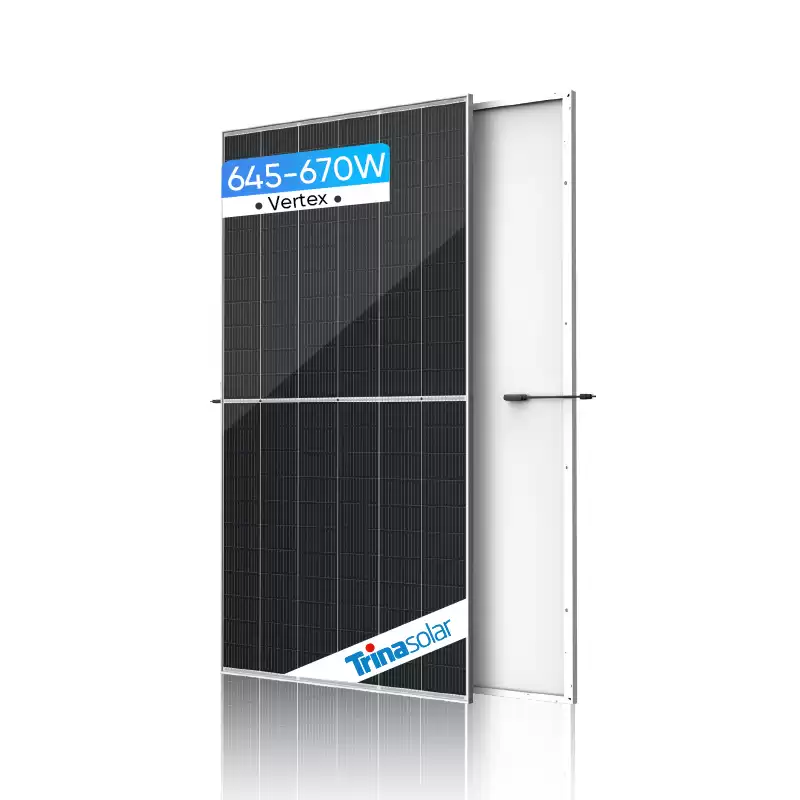

What watts of this panel?
Mono 660w 670W solar panel
What dimension of this panel?
2384 ×1303× 35 mm

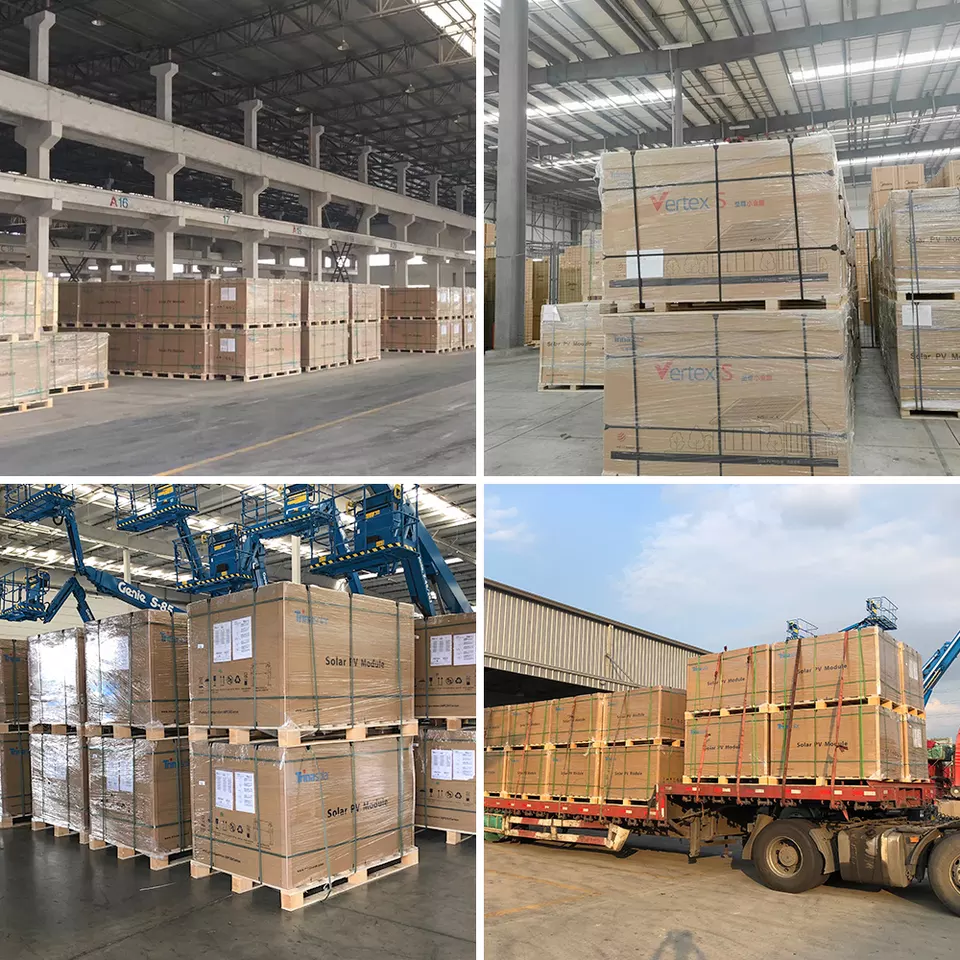

How Many pcs quantity of one container? How much is the loading quantity and shipping method?
31pcs/pallet. 558pcs/40HQ;Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.
How long is the Delivery time?
Normally production will takes around 10 workings days, depends on the order quantity.
