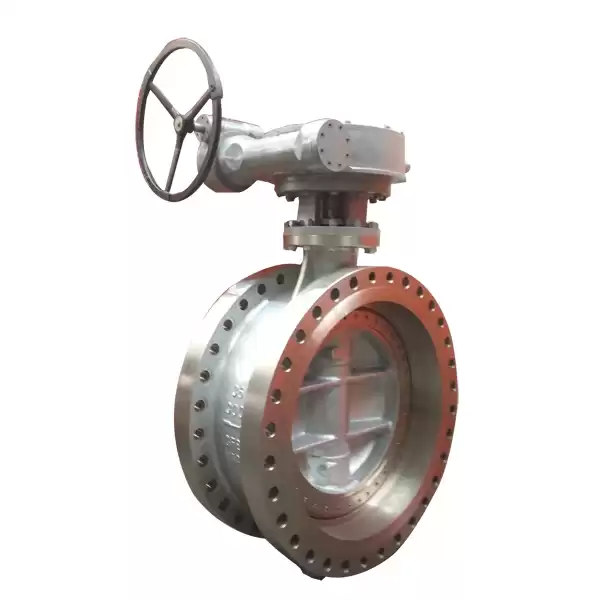

Triple Eccentric Butterfly Valve 36Inch 300LB CF8C

API609 Triple Eccentric Butterfly Valve, Manufacture STAVAL Factory Offers.

SeatSoft Seat, Metal Seat
ConstructionTriple Eccentric, Concentric, Eccentric ,High Performance
BoreFull Bore
End ConnectionBW, Flange, Lug, Wafer
Material RangeCarbon Steel, Stainless Steel, Alloy Steel, Bronze, Specialize Material
Pressure Range 150LB ~ 2500LB (PN16 ~ PN420)
Size Range2Inch ~ 60Inch (DN50 ~ DN1600)
Working Temp. -196°C to +600°C

Key Specification

Type	Butterfly Valve
Size	36Inch
Pressure	300LB
Construction	Triple Eccentric, Two way seal, Zero Leakage
Connection	RF End
Body Material	A351 CF8C
Disc Material	A351 CF8C+STL
Stem Material	A182 F347
Seat Material	A351 CF8C+STL
Bolt/Nut	B8M/8M
Design Standard	API 609
Face to Face Dimension	ASME B16.5
End Connection	ASME B16.10
Inspection & Test Std.	API598
Temperature Range	-29℃~+538℃
Medium	Oil, Water, Gas
