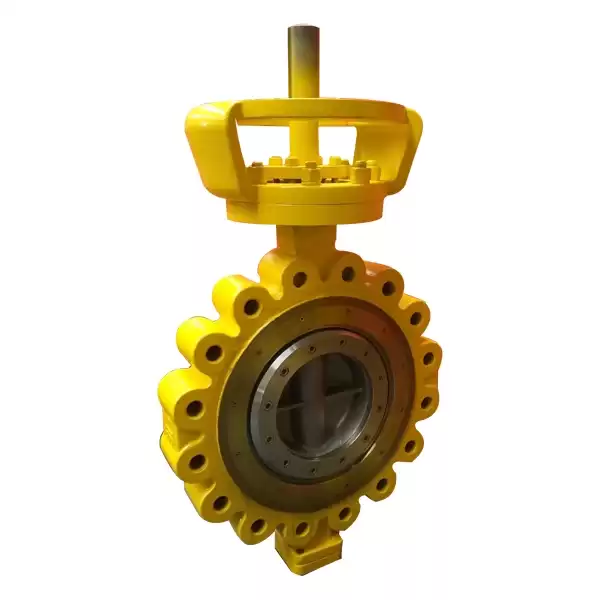

Triple Eccentric Lug Type Butterfly Valve 12Inch 300LB WCB

API609 Triple Eccentric Butterfly Valve, Manufacture STAVAL Factory Offers.

BoreFull Bore
ConstructionTriple Eccentric, Concentric, Eccentric ,High Performance
Material RangeCarbon Steel, Stainless Steel, Alloy Steel, Bronze, Specialize Material
Pressure Range150LB ~ 2500LB (PN16 ~ PN420)
Size Range2Inch ~ 60Inch (DN50 ~ DN1600)
End ConnectionBW, Flange, Lug, Wafer
SeatSoft Seat, Metal Seat
Working Temp. -196°C to +600°C

Key Specification

Type	Butterfly Valve
Size	16Inch
Pressure	300LB
Construction	Triple Eccentric, Two way seal, Zero Leakage
Connection	Lug End
Body Material	A216 WCB
Disc Material	A216 WCB+STL
Stem Material	A182 F6A
Seat Material	A216 WCB+STL
Bolt/Nut	B7/2H
Design Standard	API 609
Face to Face Dimension	ASME B16.5
End Connection	ASME B16.10
Inspection & Test Std.	API598
Temperature Range	-29℃~+459℃
Medium	Oil, Water, Gas
