Main Features:
l Low insertion loss
l High isolation between each input port
l Low PIM as -153dBc@2x43dBm
l Modularity: Double unit
l Available for all indoor and outdoor applications
l Connectors: DIN type female
|
Electrical Specifications
|
|
Port
|
Band1
|
Band2
|
Band3
|
|
Frequency Range
|
698-960MHz
|
1710-2170MHz
|
2300-2700MHz
|
|
Return Loss
|
＞20dB
|
＞20dB
|
＞20dB
|
|
Insertion Loss
|
≤0.2dB
|
≤0.4dB
|
≤0.4dB
|
|
Power Handling
|
300W
|
300W
|
300W
|
|
Isolation
|
≥55dB@1710-2170MHz
≥55dB@2300-2700MHz
|
≥55dB@698-960MHz
≥55dB@2300-2700MHz
|
≥55dB@698-960MHz
≥55dB@1710-2170MHz
|
|
DC Pass
|
3A
|
3A
|
3A
|
|
PIM
|
≤-155dBc@2x20W
|
|
Impedance
|
50Ω
|
|
Mechanical Specifications
|
|
Weight
|
4.30kg
|
|

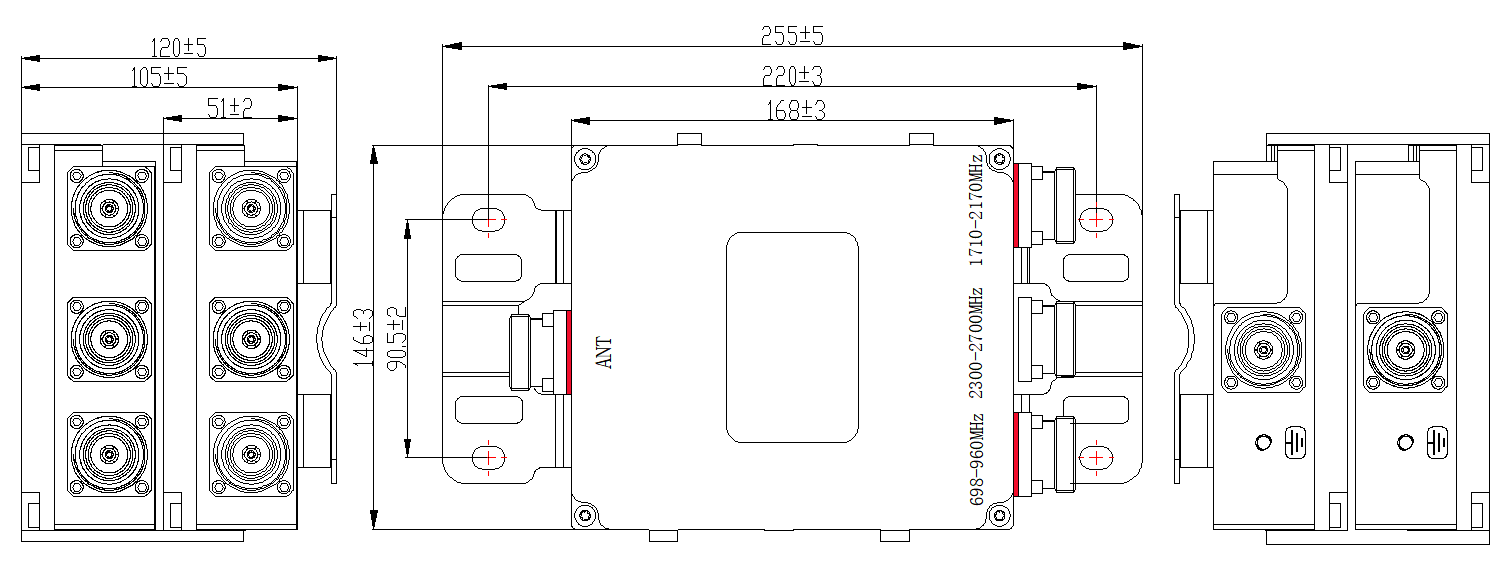

Dimensions
|
168*146*105mm
|
|
Connector
|
DIN type female
|
|
Colour
|
Grey or customized
|
|
Operating Humidity
|
0-95%
|
|
Operating Temperature
|
0 to 55ºC
|
|
Application
|
Outdoor
|
|
Mounting
|
Pole or Wall Mount
|
|
Waterproof grade
|
IP65
|
