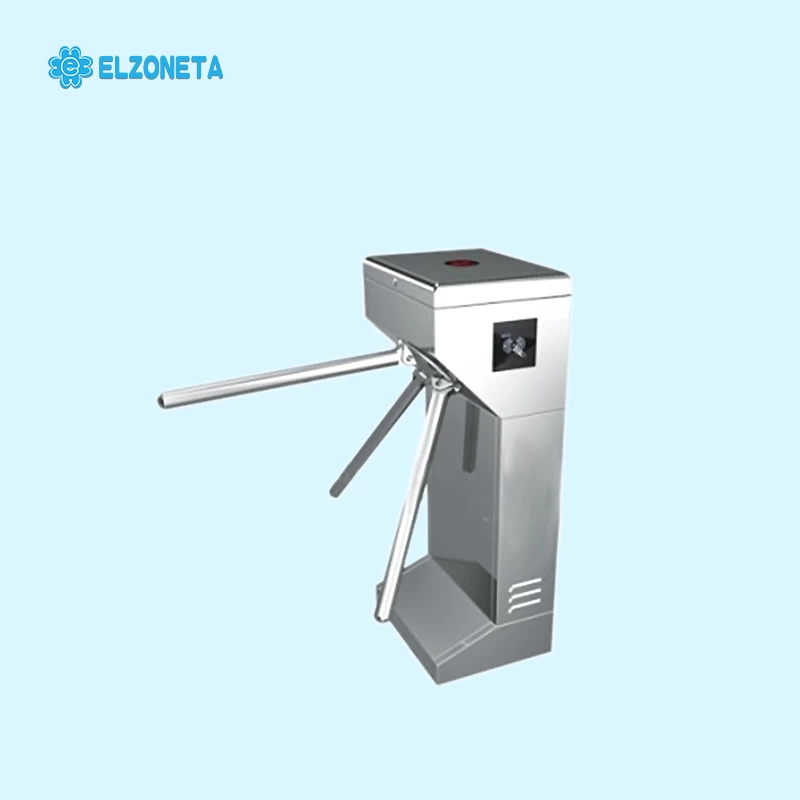

EC-ACS-TT01 Tripod Turnstile Speed Gate
Feature
1. Rainproof housing, anti-corrosion coating iron or #304 stainless steel.
2. CNC stamping and laser drilling, presenting a novel and elegant appearance.
3. Innovative and unique mounting surface ensures simple and convenient installation for system integrators;
4. Direction can be set as single-direction or bi-direction.
5. Direction indicator.
6. Can be used with variety of card readers: IC / ID card readers, bar codes,fingerprints, etc. (Access controller needed)
7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically;
8. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
9. Dual-bearing device, keeping the gate in balance when there is external force.
Specifications
|
Model
|
EC-ACS-TT01
|
|
Manual, Semi or Full-automatic
|
Semi-automatic
|
|
Material of Housing
|
304 Stainless Steel
|
|
Thickness of Housing
|
1.2mm
|
|
Dimension of Housing
(L×W×H mm)
|
480×280×980
|
|
Length of Arm
|
510mm
|
|
Diameter of Arm
|
40mm
|
|
Net Weight
|
90kg
|
|
Rotating Direction
|
Double Direction
|
|
Power Supply
|
220V±10%, 110V±10%
|
|
Frequency
|
50/60HZ
|
|
Working Voltage of Motor
|
DC24V
|
|
Rated Power
|
40W
|
