Truck Frame Straightening Machine

The truck frame machine platform is made of I-beam tube, the maxing lifting weight 40T

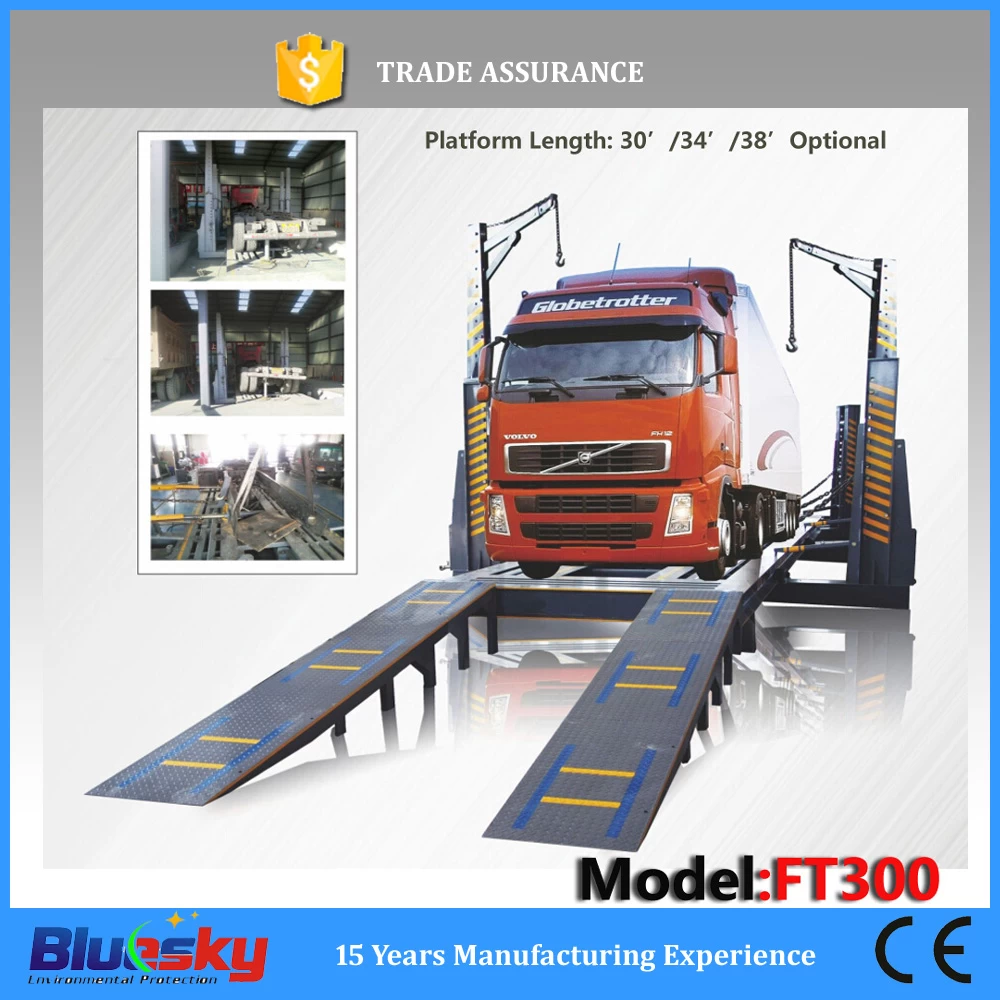

Truck Frame Machine FT300


Main technical performance and parameter of FT300:

FT300

A

B

C

Working platform length

30'/9.1m

34'/10.4m

38'/11.6m

Working platform width

85'/2.6m

85'/2.6m

85'/2.6m

Working platform height

24''/0.6m

24''/0.6m

24''/0.6m

      Max working pressure of hydraulic

     70MPa(10000psi)

    70MPa(10000psi)

   70MPa(10000psi)

Max lifting force of tower cylinder

245KN

245KN

245KN

Pulling range of the tower

27/360°

27/360°

27/360°

The pressure of the air source

0.8MPa

0.8MPa

0.8MPa

Max lifting weight

40000kg

40000kg

40000kg

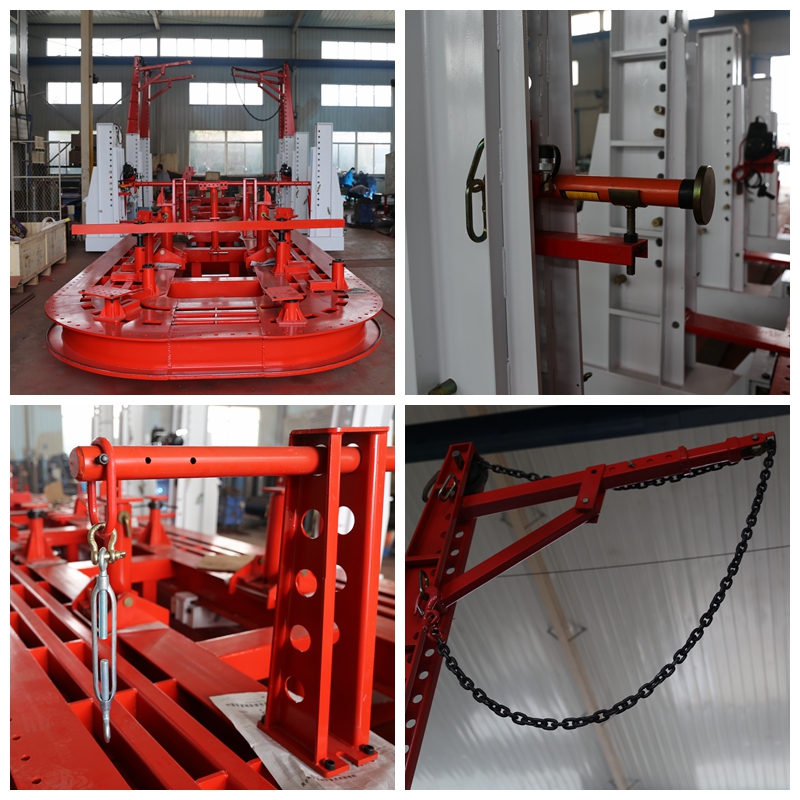

Frame machine Features:

1. The platform is I-beam tube.

2. The hydraulic towers can be moved freely alongside the platform and turn 360 as operating.  The hydraulic cylinders work vertically, resulting in maximum force and most powerful effectiveness.

3. High quality chains and plate tools are used flexibly and conveniently with long life. The entire series of tools accessories enable to do any misshape correction work.

4. Hydraulic system with good design has powerful driving force, long life and low failure rate.

5. Major clamps fix the auto quickly, firmly and accurately.

6. Applying parallelconnect synchronous hydraulic cylinder with high synchronous precision; the integral mechanical lock is processed one-time.

7. Without synchronous errors; the sharing beam adopts high quality manganese plate and all the welding positions ensure the position of shafts and holes.

8. Special design for lifting forces; in order to improve the service life of the oil cylinder, increase the oil cylinder diameter is increased and double oil cylinder lift at the same time.
