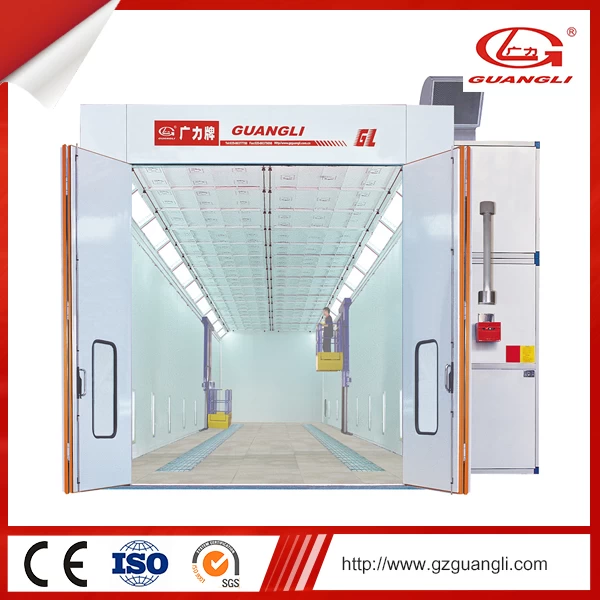

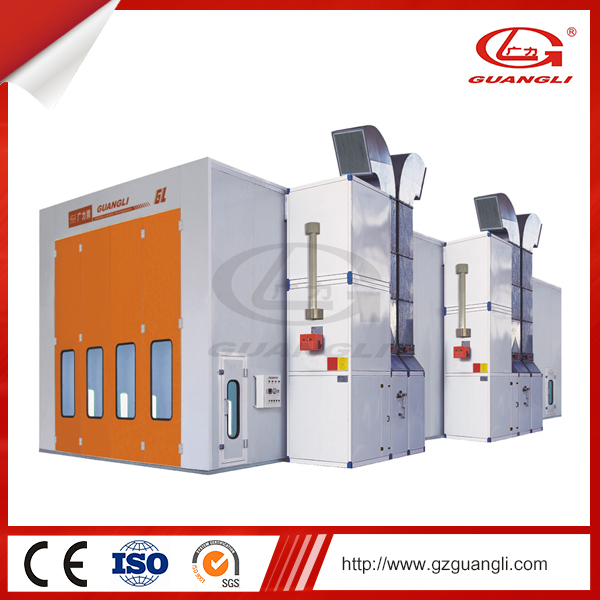

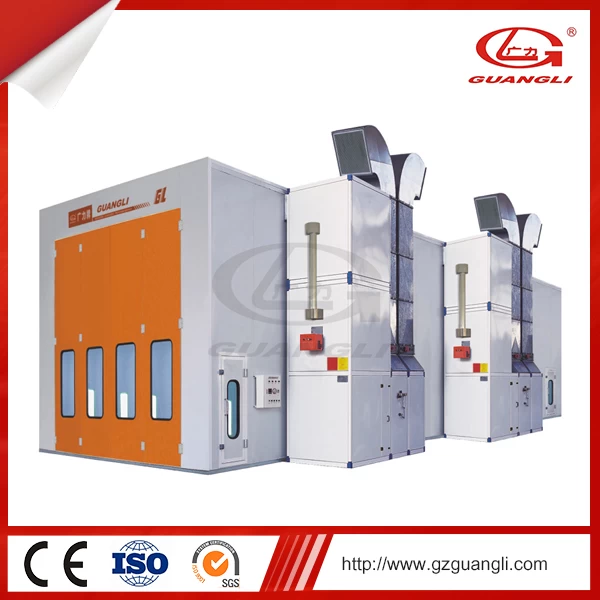

GL10 Truck Spray Painting Booth/Bus Paint Booth
Truck Booths are designed for repairing, painting and baking such as large bus, truck, boat, agricultural vehicle, industry machine, aircraft etc. Most of orders are customized according clients requirement.
Successful case in Thailand, Myanmar, Australia, New zealand, Indonesia, Russia federation, European area, Mid-east, Africa and The United State etc more than 60 countries.
Truck Spray Booth Specifications as below:
The main room:
Wall panel：EPS Sandwich style, Thickness 50mm. rock wool optional
Basement: Concrete Structure made by the customers, 2 rows of grids, 3D Lifts as optional
Door: 4 pieces of front door without aluminum side cover. 2 pieces of emergency door with pressure lock.
Generator System:
Two units of 11 kw intake fans and two units of 11 kw exhaust fans.
2 pieces of floor filter and 2 pieces of air mouth filter.
Light system：
Upper light: 20 sets, 4*40w per set. side lights: 16 sets, 4*40w.
Two sets of exhaust/intake ducts, 5 meters straight, one 90° bend, and one 60° bend each. two sets of chimney, 5 meters straight and 2 small bends.
2 sets of manual VCD exhaust/intake dampers, electrical VCD as optional.
Spraying/baking transition damper, automatically air controlled.
Heat system:
Heat ex-changer: stainless steel. 2 units of RIELLO RG5S burners.
Roof filter: 16 pieces of filter, mounted above support frame, which is made of steel and powder coated.
Control system:
Control box: imported components, overload, overheat, phase-lacking, phase-lacking protection , engine star-delta start.
Automatically stop when preset time is up.Constant temperature spraying.
Environmental filter :either M style or drawer style active carbon equipment can be adopted.
Special Pneumatic Lifts, Wall Man lift for the truck booth for option
|
Technical Specifications
|
GL10-CE
|
|
External size(m) (LxWxH)
|
15.2×6.7×5.0
|
|
Internal size(m) (LxWxH)
|
15.0×5.0×4.4
|
|
Door width(m)
|
4.0
|
|
Door height(m)
|
4.0
|
|
Air flow ( m3/h)
|
72000
|
|
Inside on-load air speed(m/s)
|
0.3-0.35
|
|
Water-based Paint Device
|
As option
|
|
Temperature(℃)
|
20-80
|
|
Power (Kw)
|
50
|
|
Color
|
Orange,Blue,Red,White
|
|
Exhaust type
|
Full-undershot,Bilateral,Semi-down,Unilateral
|
