Trustworthy Construction Tower Crane QTZ63 (5013-max. load: 6T)
Parameter of tower crane QTZ63
1. Tower crane model:QTZ63 TC5013
2. maximum load capacity is 6t,Tip load is 1.3t
3. maximum radius is 50m.
4. Independent height is 40m,Max. Possible height is 150m.

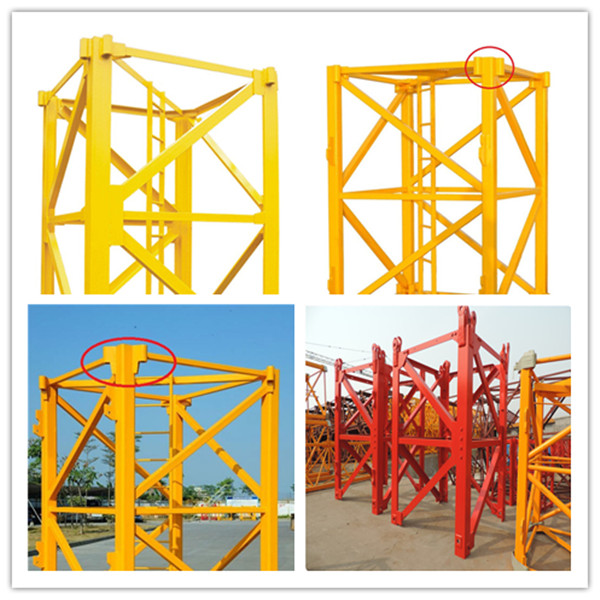

5. Mast section dimension:1.68*1.68*2.5m,Main chord:160*160*16
6. Rated lifting moment:630kn m
7. Slewing speed:0.63r/min
8. Derricking speed:44/22m/min
9. Jacking speed:0.4m/min
10. equipped with complete set of safety devices
Advantage of China 6t tower crane QTZ63:
1. Robot automatic welding system;
2. Automatic impeller blasting and spraying assembly line;
3. CNC plasma cutting machine;
4. Precision machine tools;
4. France Schneider contactor;
5. Jiangte motor;
6. equipped with complete set of safety devices
7. CE and ISO 9001:2000 certificate
Characteristics topkit tower crane QTZ63
1. QTZ63 tower crane, a type of self-elevating top slewing tower crane, is designed and manufactured by Shandong Mingwei hoisting equipment Co., Ltd. Which has good quality and competitive price.
2. This tower cane is the crane with vertical arm support, trolley travel and up-rotary hydraulic jack-up system. Its maximum load capacity is 6t. maximum radius is 50m. Tip load is 1.3t, independent height is 40m.
3. The machine is equipped with complete set of safety devices, which can guarantee the safe and high efficient operation of the equipment. Including lifting height limiter, dolly radius limiter, load moment limiter, weight limiter, circumgyrating limiter, etc.
4. Our company use France Schneider contactor, and tests each hoisting mechanism under no-load, static load, dynamic load, etc. To ensure the brake reliable, safe and durable.
5. Mingwei tower crane expands the international market actively, and has successfully exported to Asia each country, middle east, Brazil, Russia and north America, which has become foreign trade long-term cooperation.
6. We comply with CE and ISO9001-2000 international quality management system standards.
7. Reliable quality, advanced technology and equipment, competitive price, the best configuration, high safety factor, cost-effective ---MINGWEI products is trust worthy, we can ensure the customers buy the products assured and use happy.
FAQ:
Q1: What is the Warranty for tower cranes?
A1: For the tower cranes, we can supply 1 years warranty.
If there is any quality problems of any parts (excluding easy worn spare parts) on our side during this period, we will supply the new one by free for replacement.
Q2: What is the meanning of QTZ and TC for tower crane model? And please illustrate.
A2: QTZ is classified according to China National Standard.
“Q” is the acronym of Crane in Chinese language(Qing Zhongji),
“T” is the acronym of Tower head type in Chinese language(Ta Shi) and
“Z” is the acronym of self rising in Chinese language(Zi Sheng Shi)
“TC” is the acronym of Tower Crane in English language.
For example: QTZ63(5013) means topkit tower crane, the rated lifting moment is 630KN.M
(63 is 1/10 of the rated lifting moment).
The working jib length is 50 meter and tip load is 1.3t when jib length is 50m.
Q3: What are the optional parts for your tower cranes?
A3: 1) Anemometer
2) Air conditioner for operation cab
3) Black box for operation cab
4) Remote control
5) Full VFD(Variable Frenquency Drive) control
Q4: How many types of foundation for your tower crane?
A4: the most popular types of foundation are Cross-beam type, Well-frame type,
Base with ballast type and Outrigger type.
Our default one is Cross-beam type,
if you need other types, please let us know when you make the order. Thanks
Q5: How to confirm a suitable tower crane model?
A6: My dear friends, please tell us the below basic parameters to confirm tower crane model:
a. Building height or tower crane working height.
b. Max load capacity and tip load capacity.
c. Span or jib length
d. Other Special requirements
