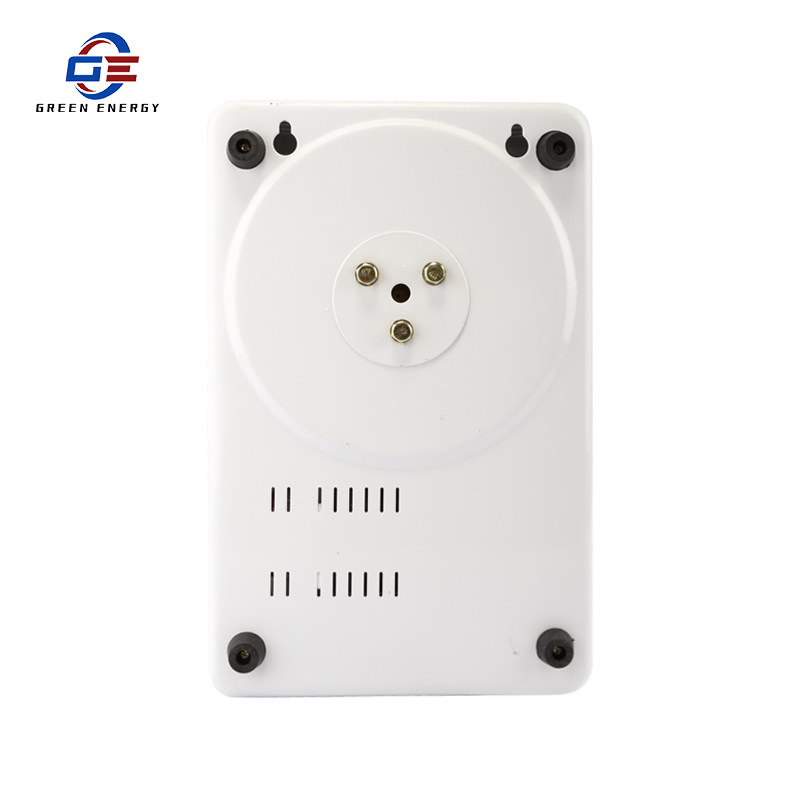

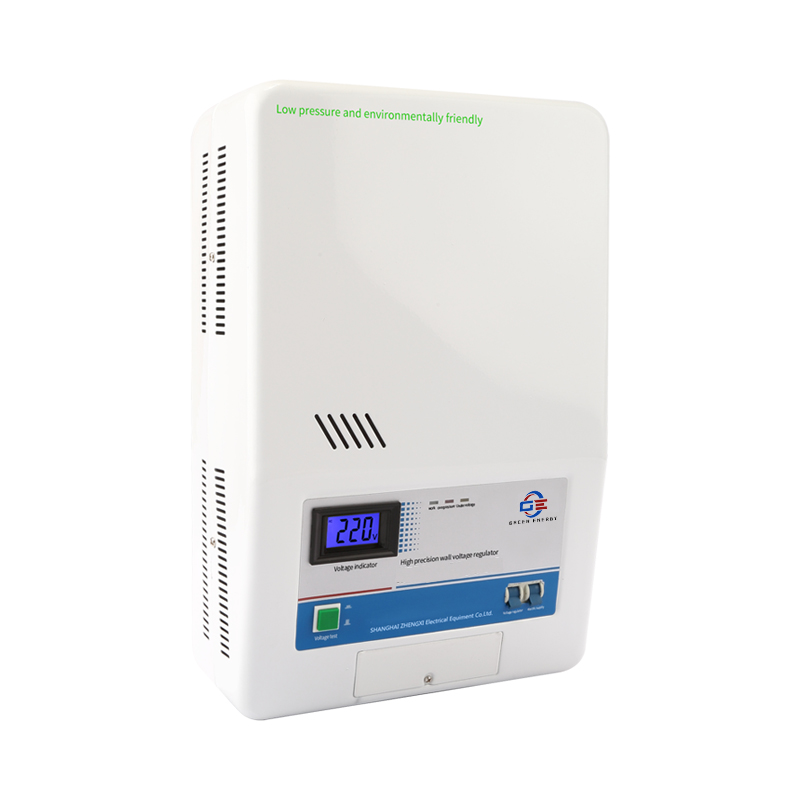

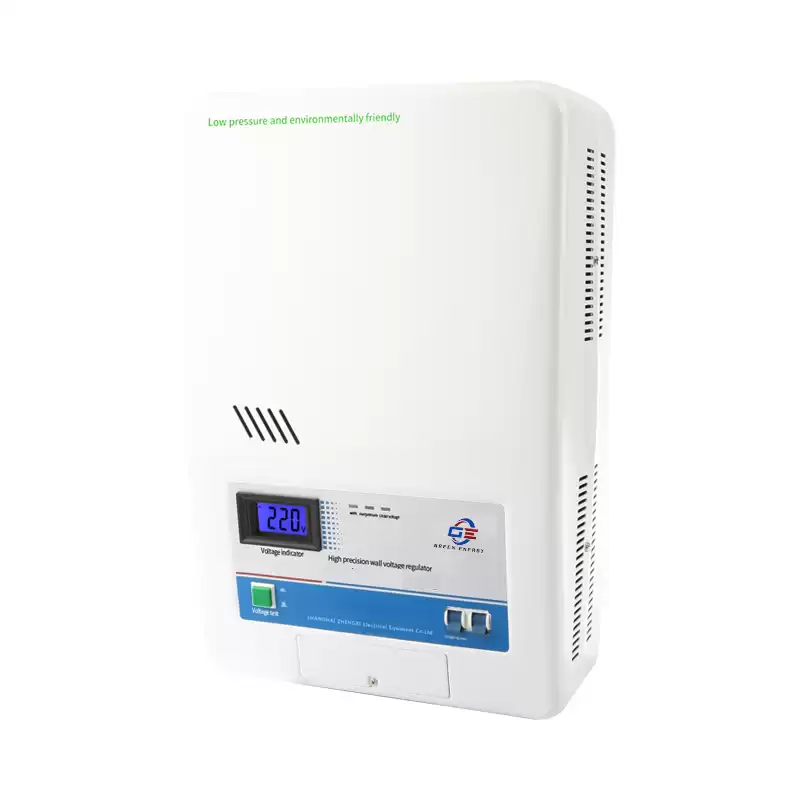

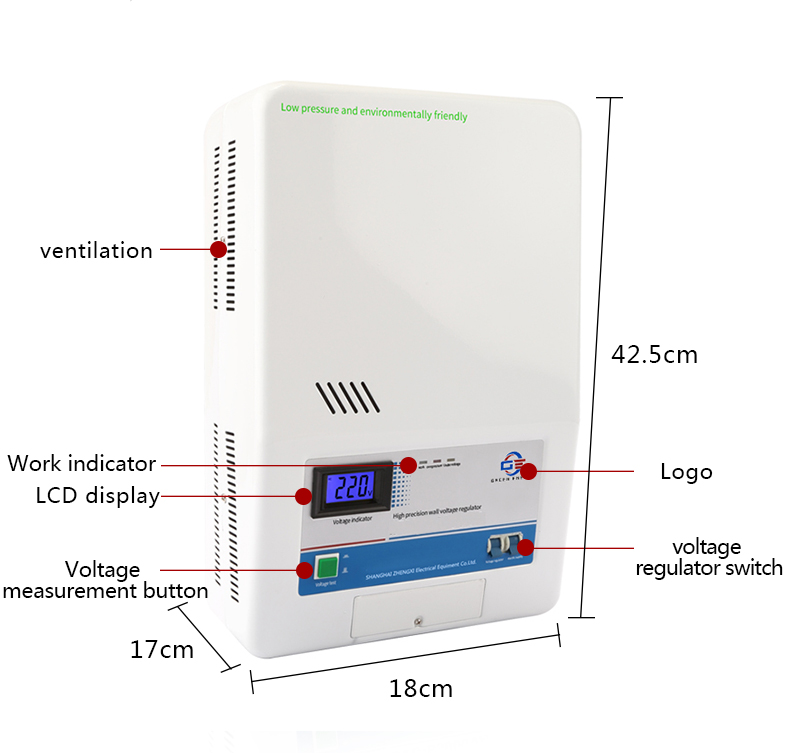

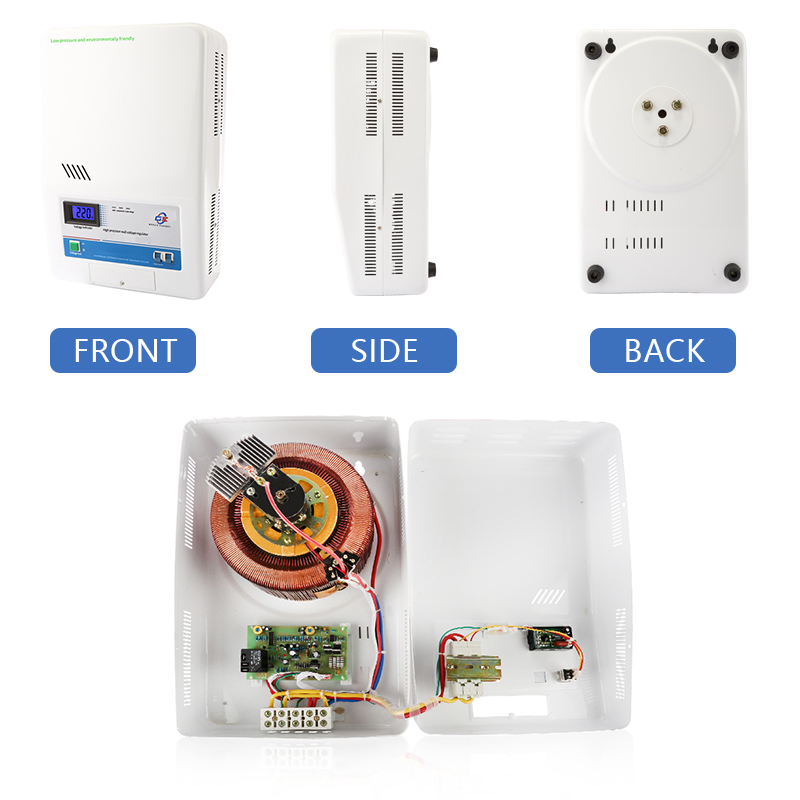

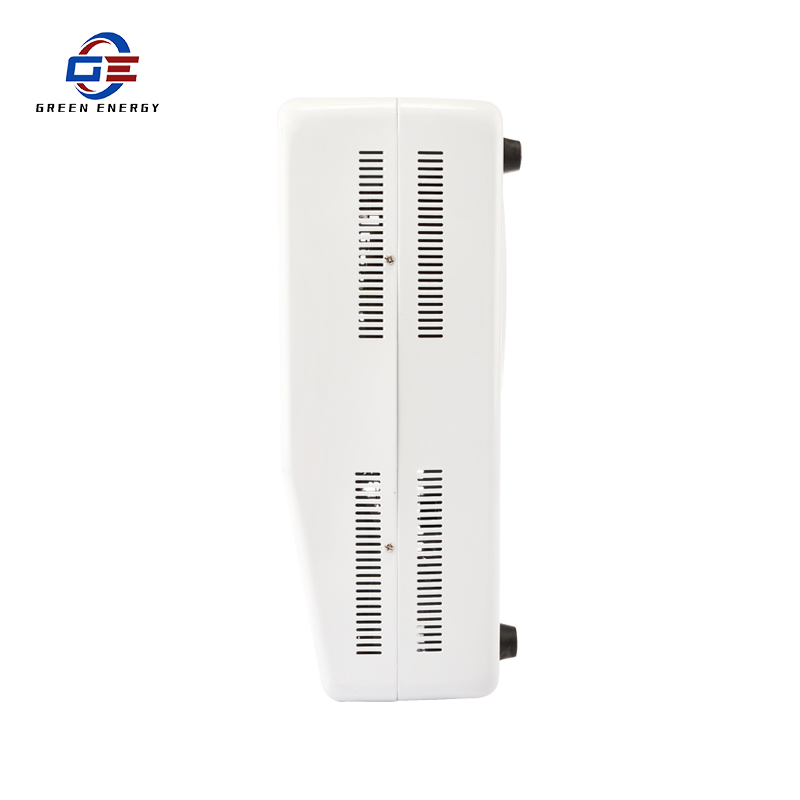

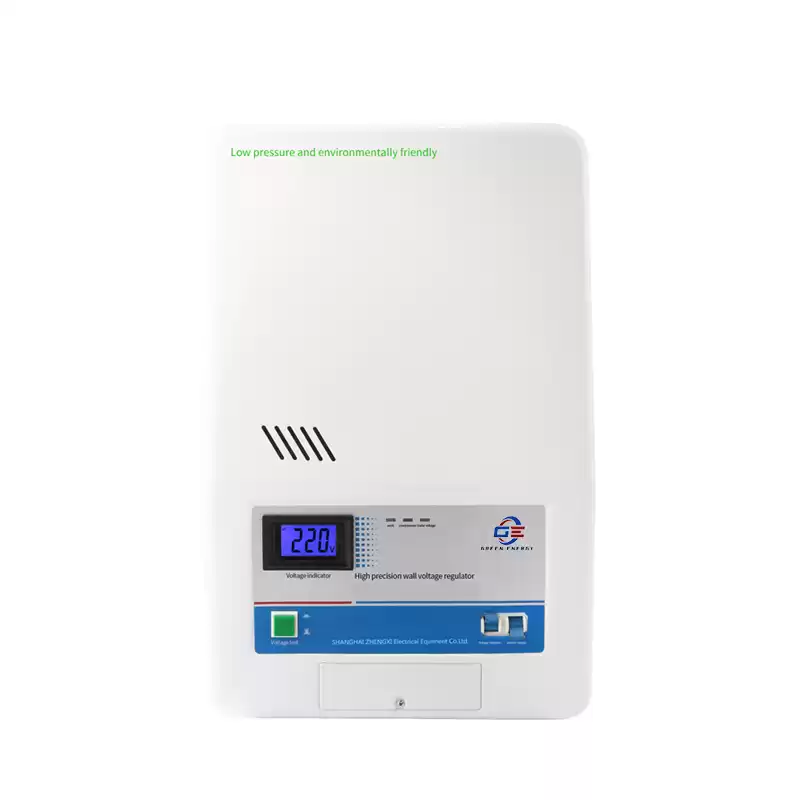

TSD Home Wall-Mounted Voltage Stabilizer
⇒ PRODUCT DESCRIPTION

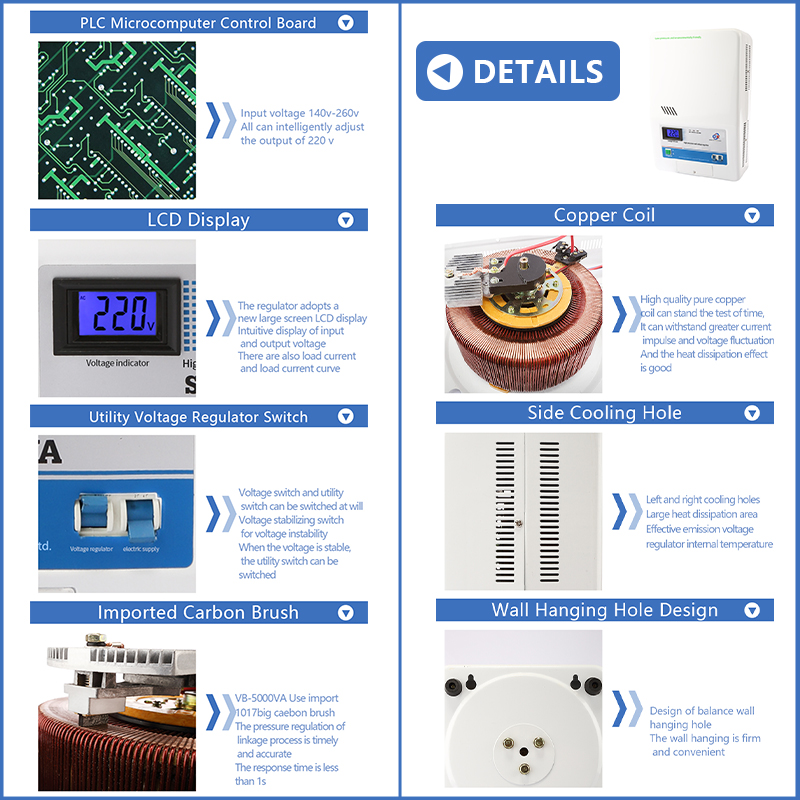

TSD series wall-mounted servo AC voltage stabilizer is a re-designed product based on SVC series products. Installation, can effectively expand and use the space, the appearance is soft, giving people a new look. Widely used in households, hospitals, offices, industrial automation and other occasions requiring voltage regulation.
| Input Voltage |
135V-250V/140-260V/160V-280V |
| Output Voltage |
220V |
| Output Precision |
±3% |
| Frequency |
50-60Hz |
| Efficiency |
≥90% |
| Response Time |
≤1s |
| Ambient Temperature |
-10℃～+40℃ |
| Relative Humidity |
<90% |
| Insulation Resistance |
≥5MΩ |
| Waveform Distortion |
No additional waveform distortion |
| Output Overvoltage Protection |
AC246±4V |

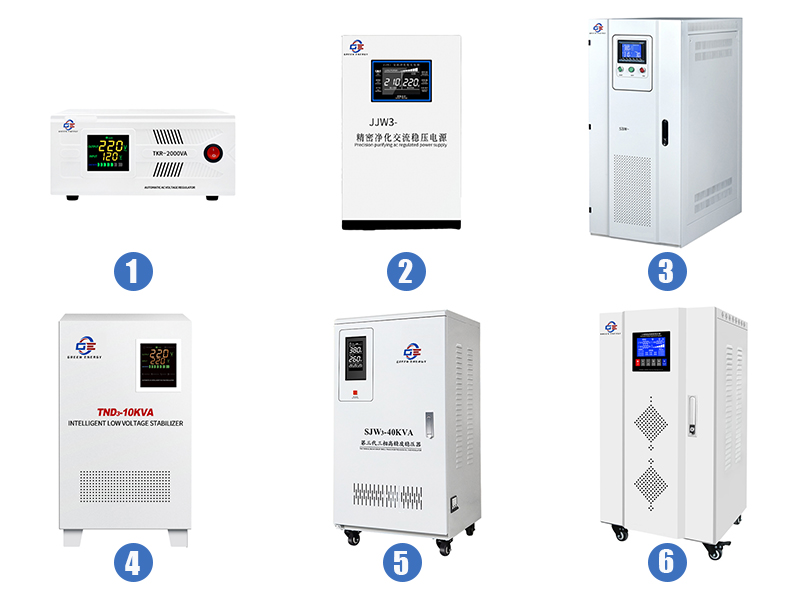

⇒ RELATED PRODUCT
