TSD standard COG FSTN 128x64 mono LCD module with metal pin

TSD standard COG FSTN 128x64 mono LCD module  with metal pins

Product description:

Item Specification
Part No. TSG12864W-MD6
LED Backlight: 4 PCS White LED Backlight , If=60±5mA & Vf=3.0±0.2V
Display 128*64 LCD display module,COG
Display Type FSTN, 6 O’CLOCK, Transflective / Positive
Driving Method: 1/65DUTY, 1/9 BIAS
Built-in controller: ST7565R
Module Size 77.4(W)x52.4 (H)x6.5(D)
VIEWING AREA 70.0(W) x 40.0(H)
ACTIVE AREA 66.54 (W) x33.26(H)

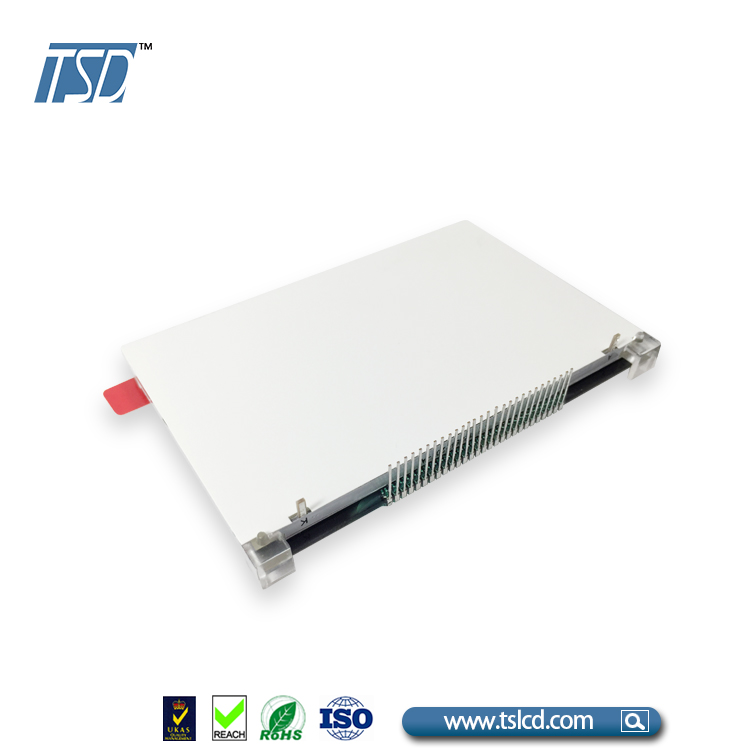

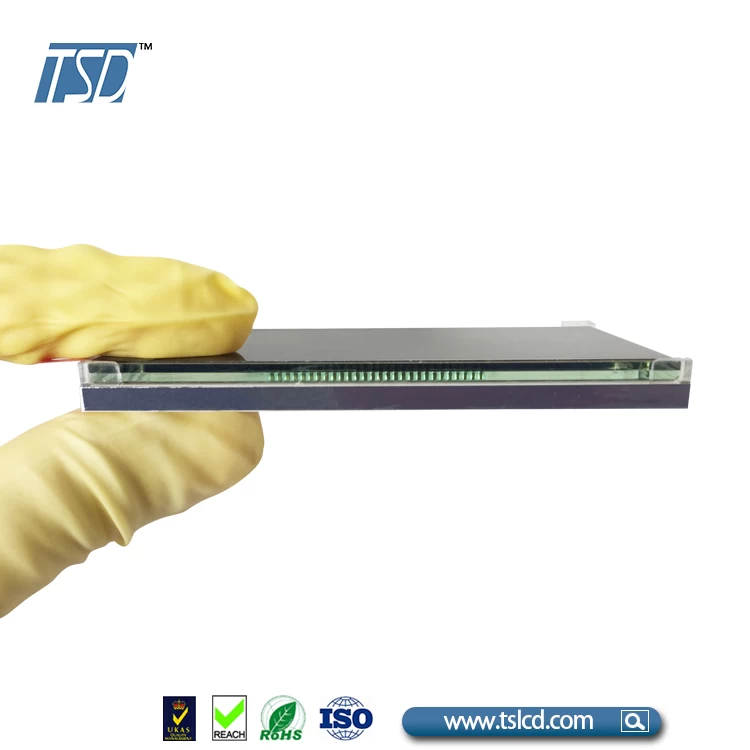

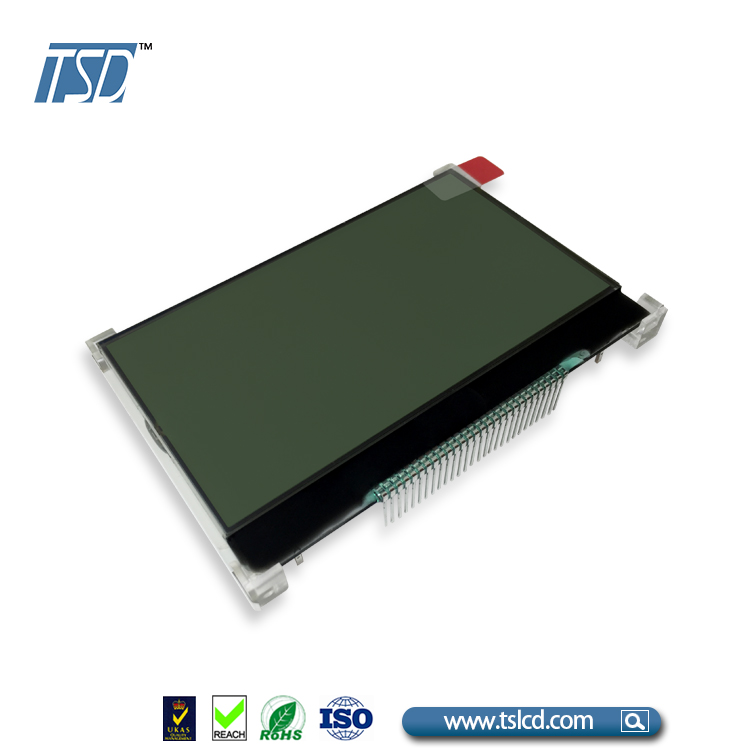

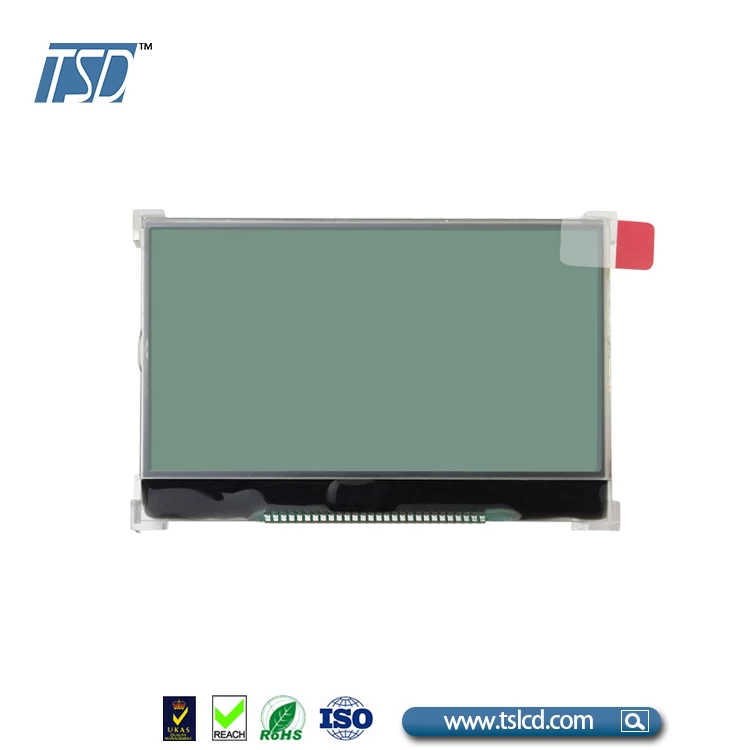

The Pictures of  128*64 graphic LCD (TSG12864W-MD6):



Product description:

Item Specification
Part No. TSG12864W-MD6
LED Backlight: 4 PCS White LED Backlight , If=60±5mA & Vf=3.0±0.2V
Display 128*64 LCD display module,COG
Display Type FSTN, 6 O’CLOCK, Transflective / Positive
Driving Method: 1/65DUTY, 1/9 BIAS
Built-in controller: ST7565R
Module Size 77.4(W)x52.4 (H)x6.5(D)
VIEWING AREA 70.0(W) x 40.0(H)
ACTIVE AREA 66.54 (W) x33.26(H)



Character Module Series:

  1. Various LCD Type Available
  2. Various Backlight Color Available
  3. Various 232 or USB interface Available
  4. Compatible Various Control IC:S6A0069.SPLC780D,ST7066U
  5. Supply Various Characters: English, Japan, European, Russian etc.
  6. Our standard character module:8x2,16x1,16x2,16x4,20x2,20x4,40x2,40x4.

Graphic Module Series: COB/COG available

128*32,128*64,160*128,240*320,240*128,256*128,etc.



TFT Module Series:

1. Our standard tft lcd module size:

1.44", 1.77", 2", 2.4", 2.8", 3", 3.2", 3.5",

4"(3.97"), 4.3", 5", 5.6", 5.7", 7", 8", 10.1".

2. New products: 3.5", 4.3", 5.0", and 7" TFT LCD with CTP and MCU interface .

3. 2.2", 3.5" transflective/ sun readable tft lcd.

4. Our Specials Technology : can make AR( Anti-reflective), AF(Anti-fingerprint),AG(Anti-Glare)and also use EWV(extremely wide view) polarizer.

5. Specails items: 4.3'' 5.0'' 7.0'' developed 1000nits brightness.
