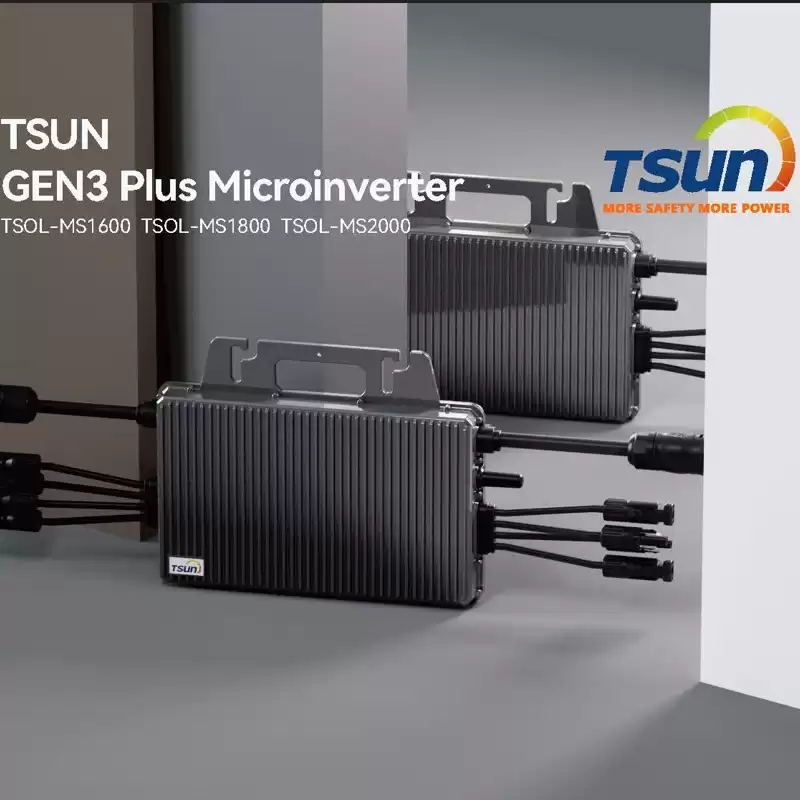

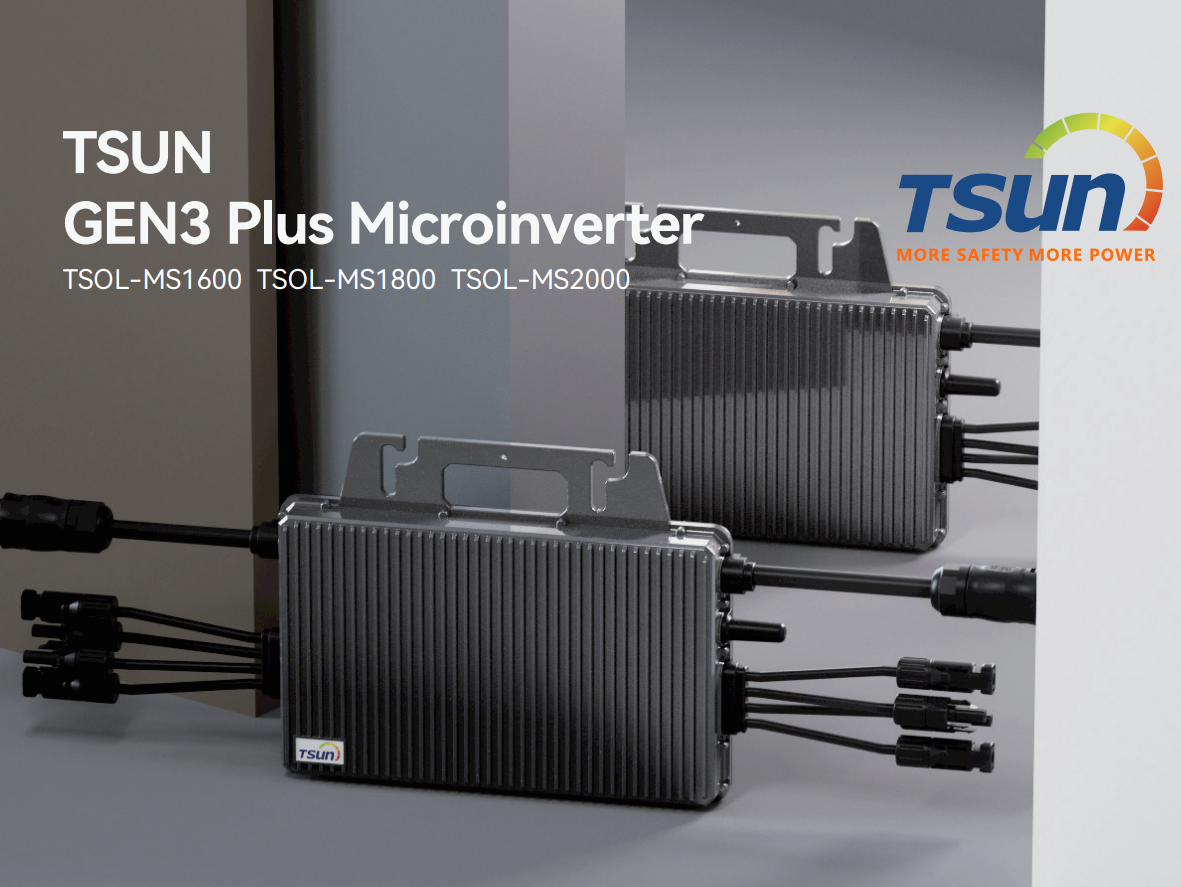

TSUN Micro Inverter GEN3 Plus TSOL-MS1600 MS1800 MS2000 Balcony smart Micro Solar Inverter

Maximized Efficiency

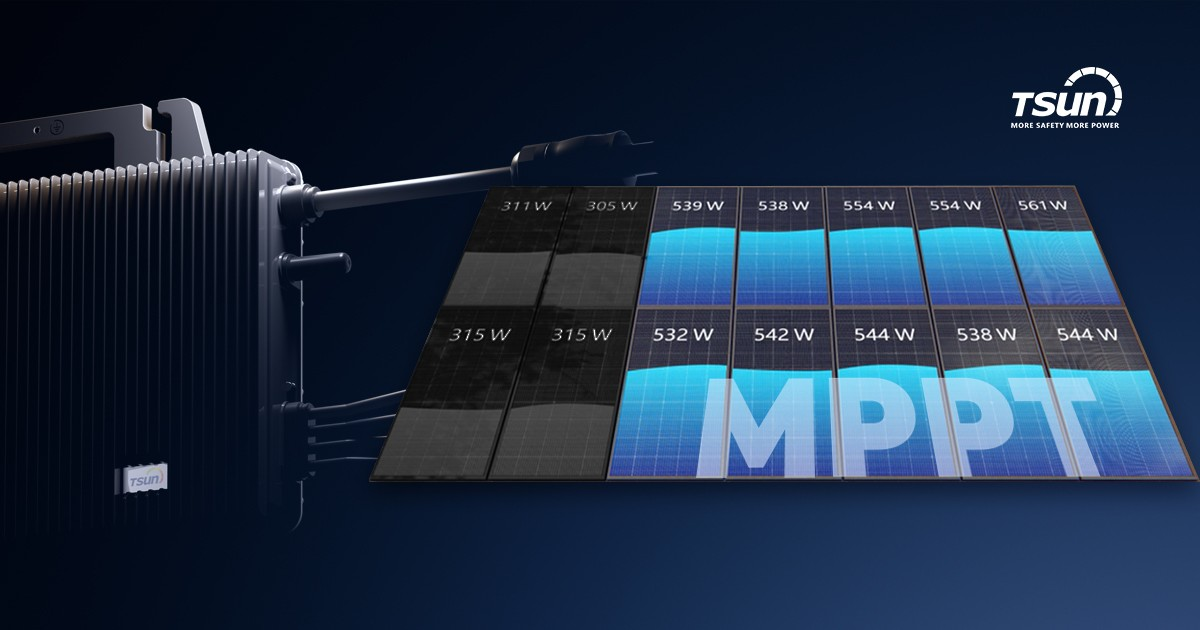

Individual optimization, se-parate dedicated MPPT for each panel.

New topology design, max efficiency up to 96.7%.

Flexibility

Plug & play installation, Easy to install.

Safety

Max. DC voltage 60V. No threat for high DC voltage.

Integrated LoM protection function. Ensure the safety of power grid.

Reliability

Die casting design and glue filling technology.

Better thermal dissipation.

Standard 12 years warranty, Quality guaranteed.



Facebook Twitter Pinterest LinkedIn 分享

Product Description
Product Details
Specification
Model
TSOL-MS1600
TSOL-MS1800
TSOL-MS2000
Input(DC)
Recommended Module Power [W]
300~700+
300~700+
300~700+
Start up Voltage per Input@Rated condition [V]
22
22
22
Mppt Voltage Range per Input [V]
16~60
16~60
16~60
Max. Input Voltage per Input [V]
60
60
60
Max. Input Current [A]
16
16
16
Max. Input Short-circuit Current [A]
25
25
25
Quantity of MPPT
4
4
4
Output [AC]
Max. Continous Output Power [VA]
1600
1800
2000
Nominal Continous Output Power [W]
1600
1800
2000
Nominal Output Current [A]
7
7.8
8.7
Max Output Current [A]
8
9
10
Nominal Output Voltage [V]
220/230/240, L/N/PE
Nominal Frequency [Hz]
50/60
Power Factor
>0.99 default， 0.8 leading … 0.8 lagging
Output Current Harmonic Distortion
<3%
Nominal MPPT Efficiency
99.9%

At Rongstar Energy we are proud to play an important part in the global solar energy development. We have years-long experience in the distribution and supply chain of solar panels, inverters, energy storage systems, mounting structures, cables and other components for photovoltaics. Utilizing the strength of our parent company - DJS Group, we have more advantages in global sourcing, supply chain, localized warehousing, technical service for global customers. Our company has much experience in solar projects EPC,O&M and solar plants investment. Our expertise are both globally and locally, means we understand the breadth of challenges that solar installers face, from which we can help save the customers’ time and money.
