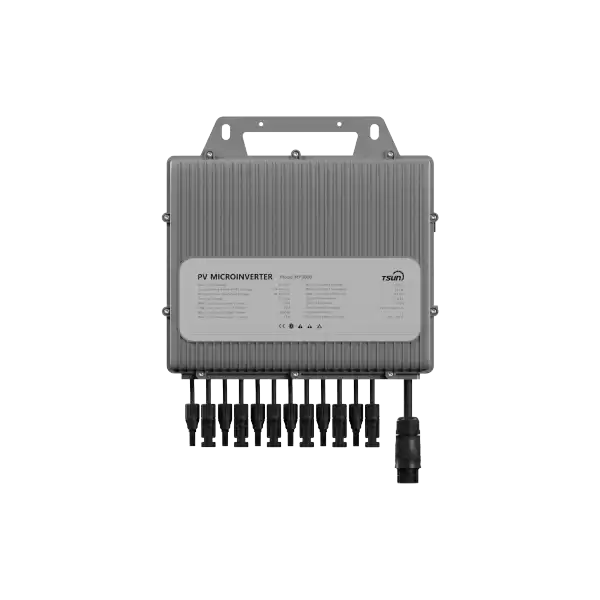

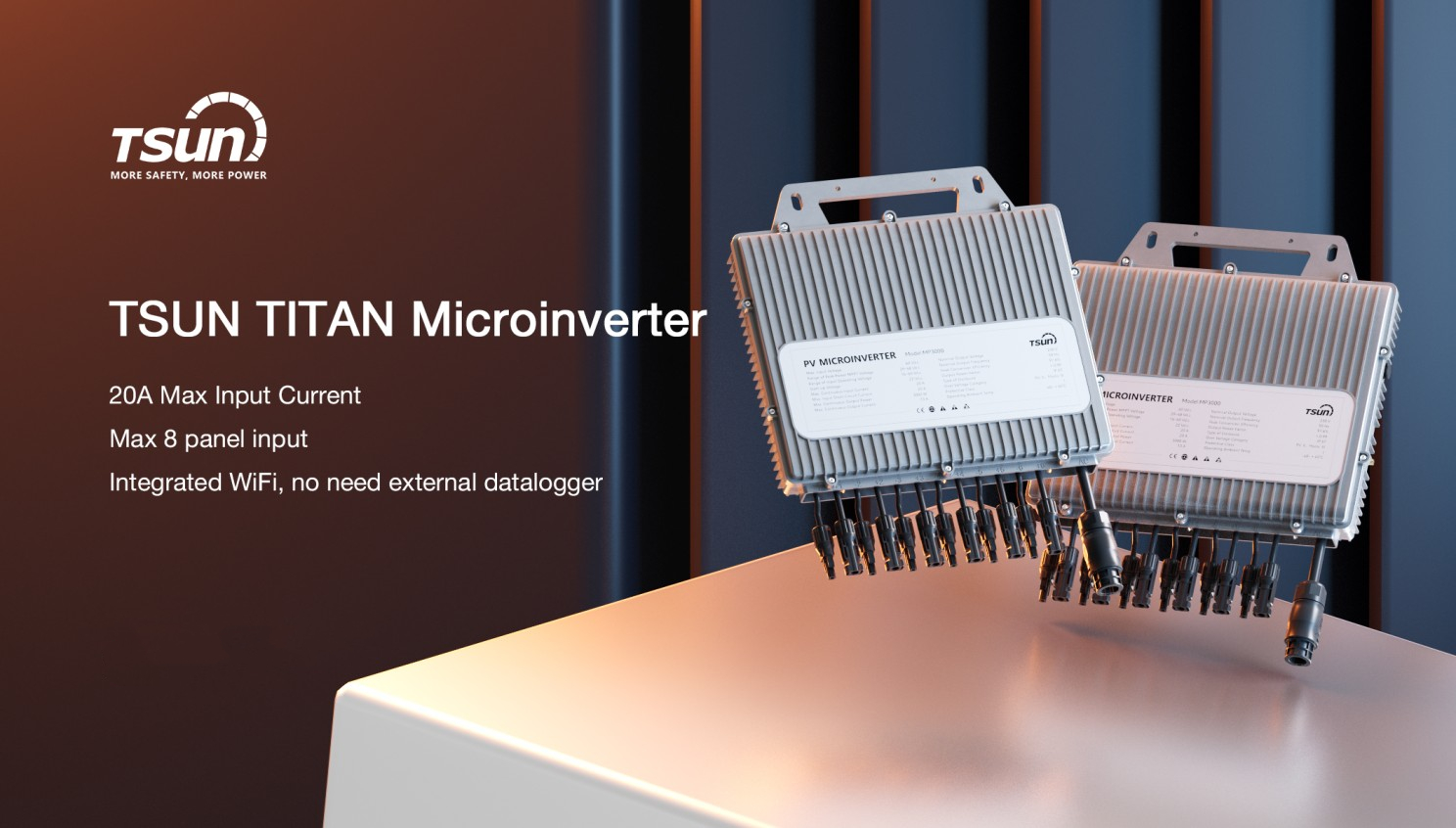

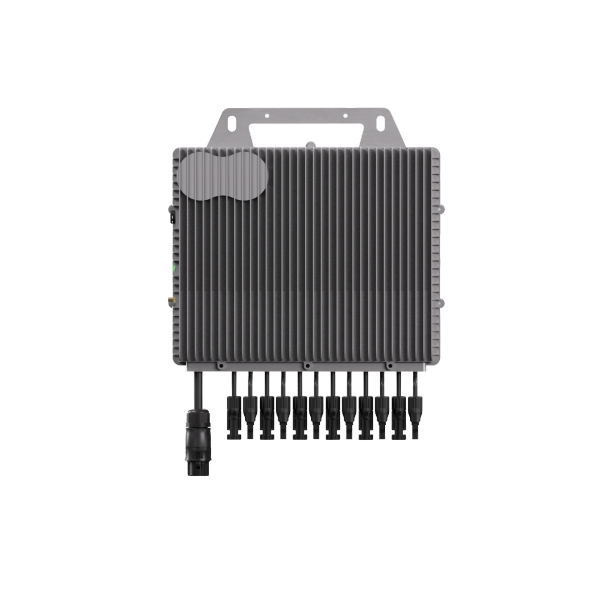

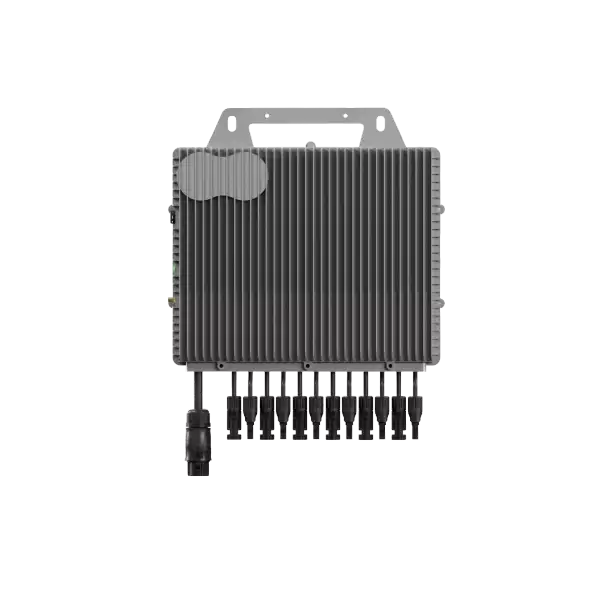

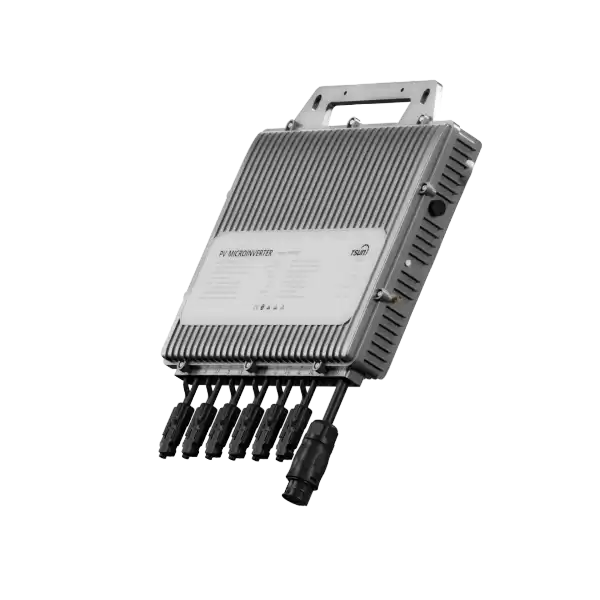

TSUN Micro Inverter Titan TSOL-MS3000 MP3000 On-grid Solar Micro Inverters For Home Solar Syestems

Maximized Efficiency

Higher output power, up to 3000W

Higher input DC current, up to18.5A, compatible with 182/210solar module

Individual power conversion, up to6 MPPTs, fit for complicated roof installation

Unique topology design, Max.efficiency up to 97.2%

High Safety

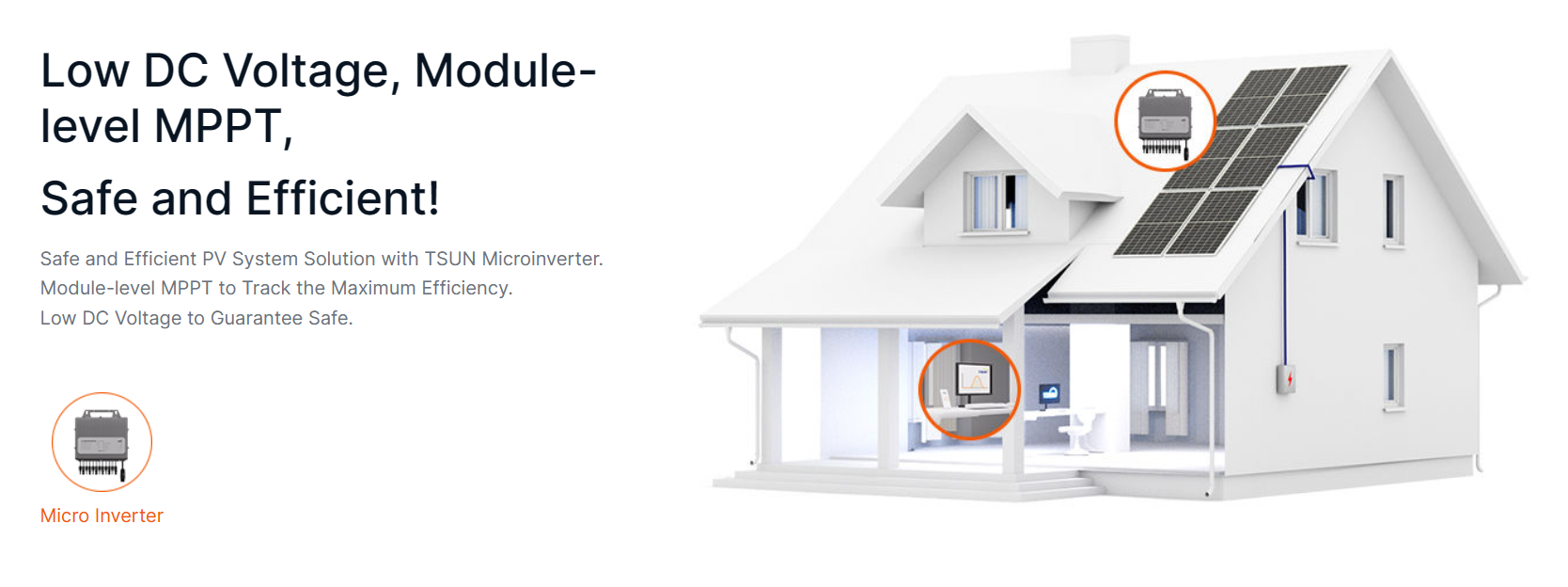

Low DC input voltage, no risk for DC Arc

Comply with the requirements of rapid shutdown

High Usability

Plug & Play design, fast installation and wiring

Integrated with TSUN independent developed communication module, no extra monitor device needed

"One-button" networking configuration with multiple micro inverters at the same time, unique monitoring solution for microinverter

High Reliability

IP67 design, high level of dustproof and waterproof,suitable for outdoor

Unique radiating fin design, good heat dissipation, longer life time

Standard 12 years warranty including the communication module

Facebook Twitter Pinterest LinkedIn 分享
Product Description
Product Details



Specification
Model
TSOL-MP3000
TSOL-MS3000
Input(DC)
Quantity of Input
6 inputs, 5~6 Panels
4 inputs, 7~8 Panels
Recommended Module Power [W]
480~700+
380~600+
Start up Voltage per Input@Rated condition [V]
22
24
Mppt Voltage Range per Input [V]
18~60
22~120
Max. Input Voltage per Input [V]
60
120
Max. Short-circuit Current per Input(A)
20
16
Max. Input Current per Input [A]
18.5
15
Quantity of MPPT
6
4
Output [AC]
Max. Continous Output Power [VA]
3000
3000
Nominal Continous Output Power [W]
3000
3000
Nominal Output Current [A]
13.6
13.6
Max Output Current [A]
14
14
Nominal Output Voltage [V]
220/230/240, L/N/PE
Nominal Frequency [Hz]
50/60
Power Factor
>0.99 default， 0.8 leading … 0.8 lagging
Output Current Harmonic Distortion
<3%
Nominal MPPT Efficiency
99.9%

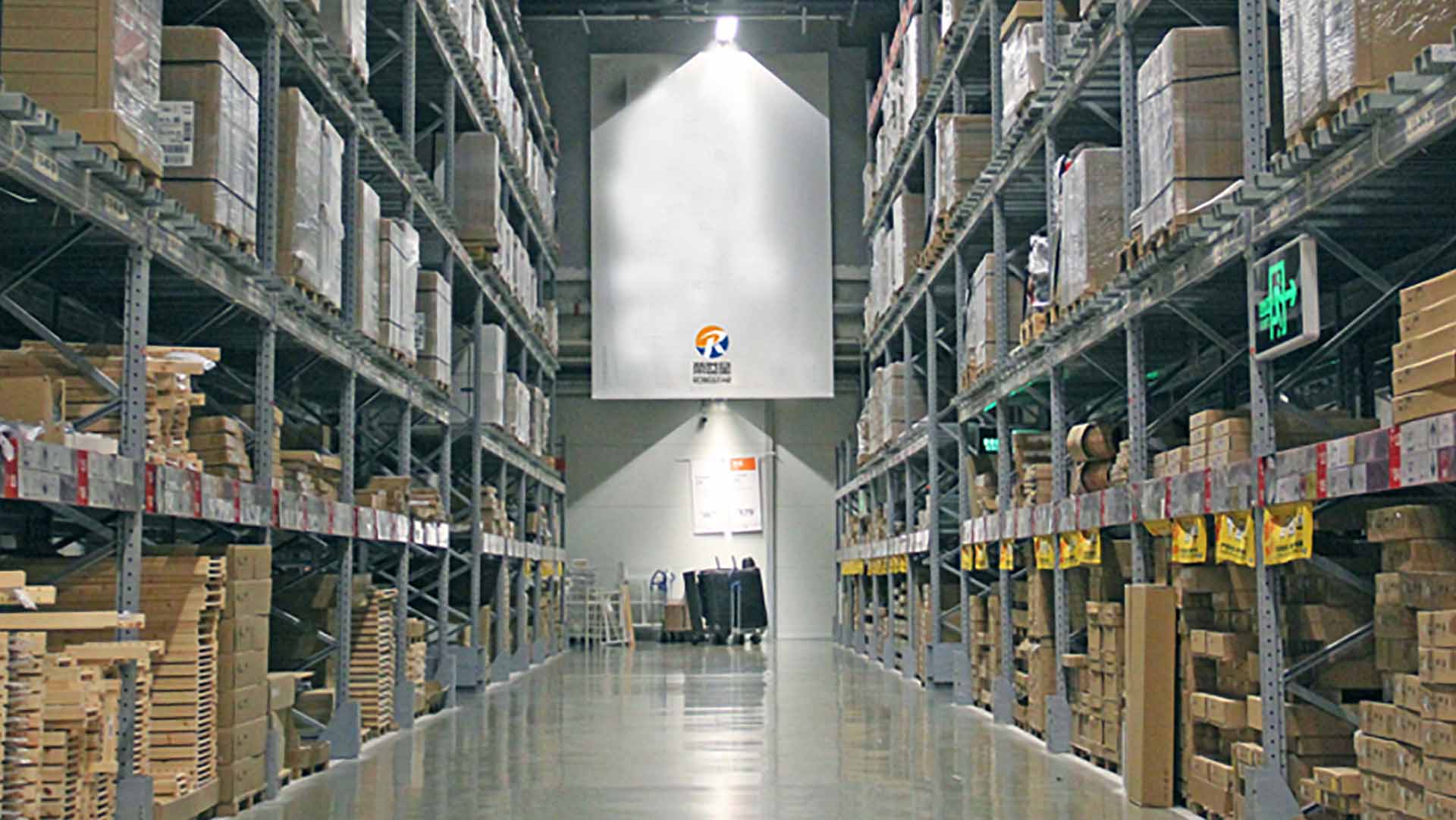

At Rongstad Energy we are proud to play an important part in the global solar energy development. We have years-long experience in the distribution and supply chain of solar panels, inverters, energy storage systems, mounting structures, cables and other components for photovoltaics. Utilizing the strength of our parent company - DJS Group, we have more advantages in global sourcing, supply chain, localized warehousing, technical service for global customers. Our company has much experience in solar projects EPC,O&M and solar plants investment. Our expertise are both globally and locally, means we understand the breadth of challenges that solar installers face, from which we can help save the customers’ time and money.
