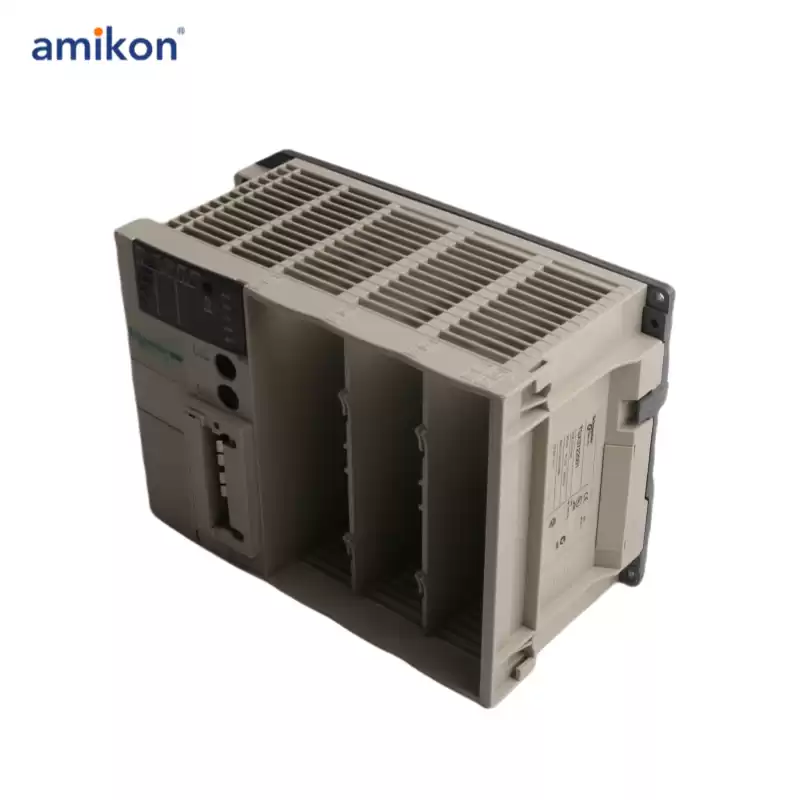

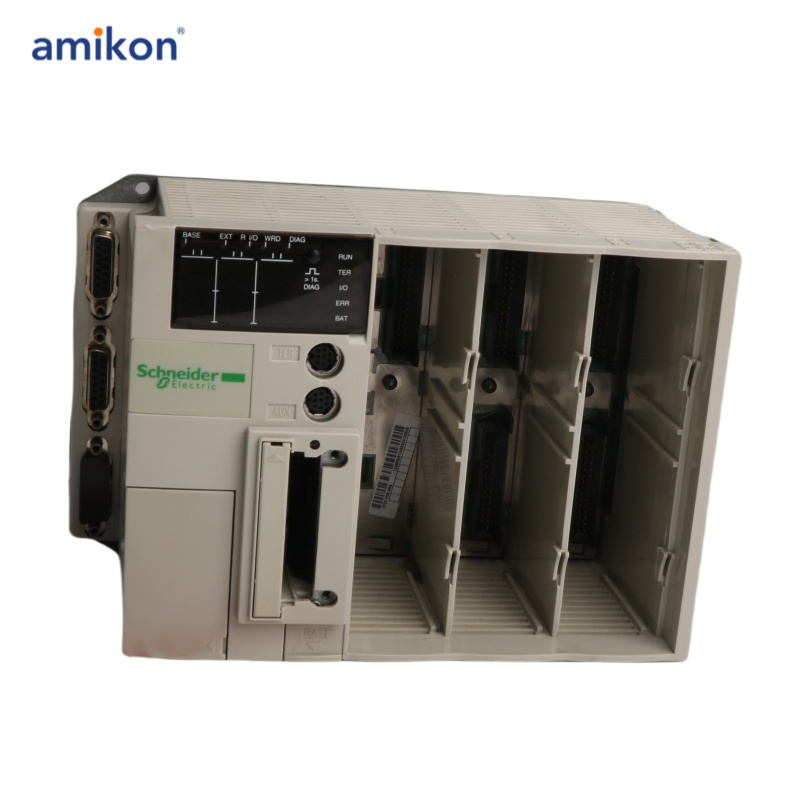

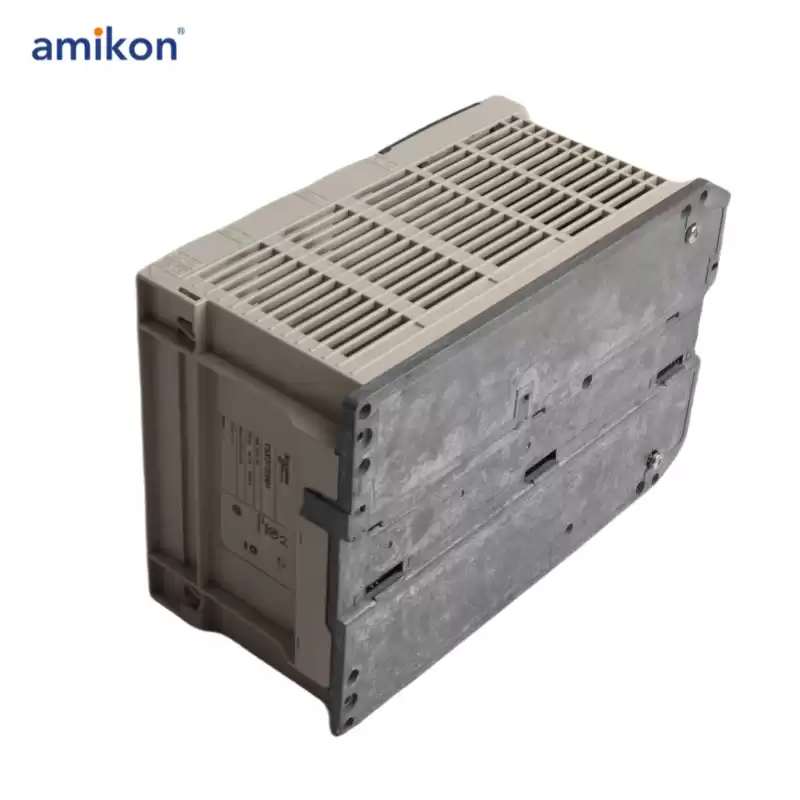

TSX3722001 Schneider Modular base controller
This product is part of the Modicon TSX Micro range, an offer of Programmable Logic Controllers (PLC). This modular base controller has 3 slots. It is a modular base controller with a primary voltage of 100V to 240V, 90V to 264V AC and 0.5A output current. Integrated connections are 1 serial link Uni-Telway 19.2kbps and 1 Modbus RTU 19.2kbps. Its dimensions are 341.4mm (width) x 152mm (depth) x 151mm (height) and weighs 1.75kg. It is suitable for infrastructures, machine and manufacturing control applications. The automation platform designed to enhance system's performance. With Micro's accuracy, flexibility and increased productivity, you have a real partner at the heart of the machine.
|
Main
|
|
Range of product
|
Modicon TSX Micro automation platform
|
|
Product or component type
|
Modular base controller
|
|
Primary voltage
|
100...240 V 90…264 V AC
|
|
Input current
|
2 mA 60 A
|
|
Immunity to microbreaks
|
20 ms
|
|
Number output current
|
0.5 A
|
|
Environment
|
|
Ambient air temperature for operation
|
0…60 °C
|
|
Ambient air temperature for storage
|
-25…70 °C
|
|
Relative humidity
|
10…95 % without condensation for operation
|
|
5…95 % without condensation for operation
|
|
Operating altitude
|
0...2000 m
|
|
Width
|
341.4 mm
|
|
Height
|
151 mm
|
|
Depth
|
152 mm
|
|
Net weight
|
1.75 kg
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
15.0 cm
|
|
Package 1 Width
|
17.0 cm
|
|
Package 1 Length
|
24.0 cm
|
|
Package 1 Weight
|
1.832 kg
|
