Specifications
|
Main
|
|
Range of product
|
Modicon Premium Automation platform
|
|
Product or component type
|

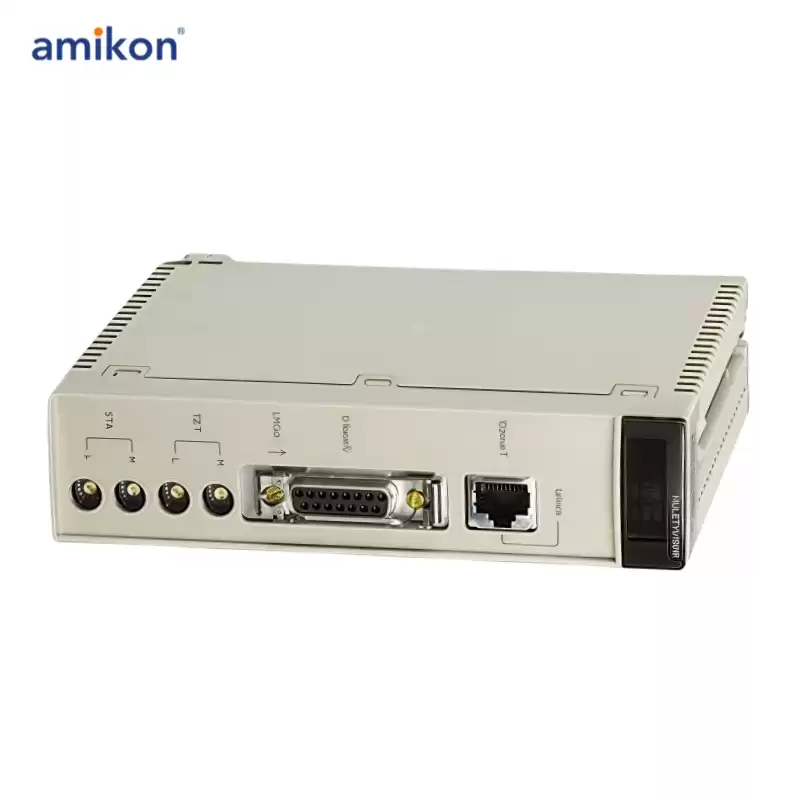

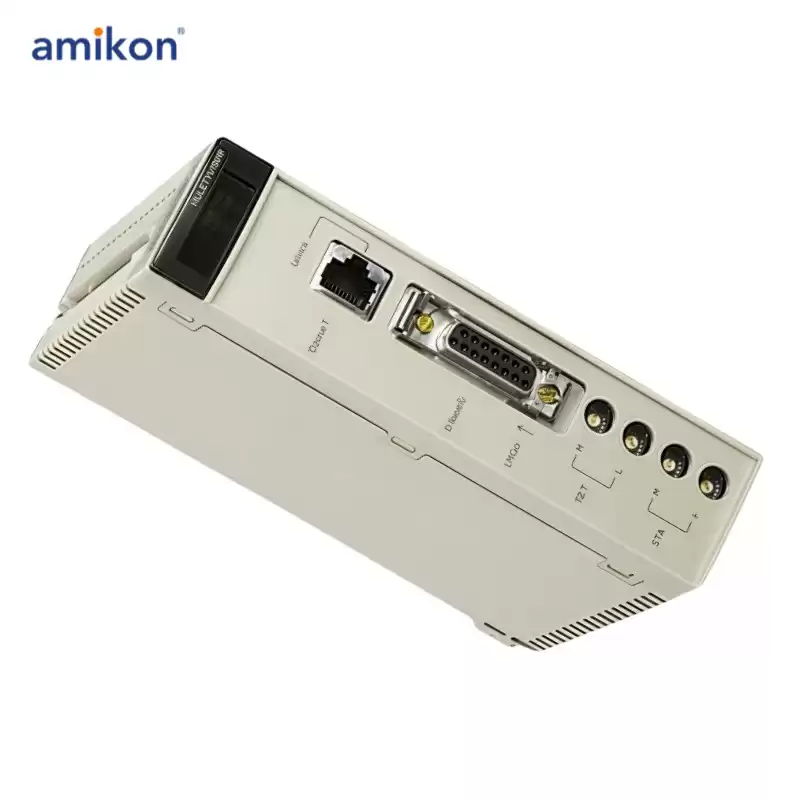

Ethernet TCP/IP module
|
|
Physical interface
|
AUI - 100BASE-5 1 AUI cable
|
|
RJ45 - 10BASE-T 1 twisted pair
|
|
Transmission rate
|
10 Mbit/s
|
|
Communication service
|
Modbus TCP messaging
|
|
Optional TCP open
|
|
SNMP agent
|
|
Uni-TE messaging
|
|
Common words, Ethway/X-Way
|
|
Application to application, Ethway/X-Way
|
|
Supply
|
Via the power supply of the rack
|
|
Local signalling
|
1 LED for collision detection (COL)
|
|
1 LED for Ethernet network status (RUN)
|
|
1 LED for Ethernet port fault (ERR)
|
|
1 LED for transmission/reception activity (TX/TR)
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
5.5 cm
|
|
Package 1 Width
|
18.0 cm
|
|
Package 1 Length
|
26.0 cm
|
|
Package 1 Weight
|
552.0 g
|
|
Unit Type of Package 2
|
S04
|
|
Number of Units in Package 2
|
12
|
|
Package 2 Height
|
30.0 cm
|
|
Package 2 Width
|
40.0 cm
|
|
Package 2 Length
|
60.0 cm
|
|
Package 2 Weight
|
6.624 kg
|
|
Complementary
|
|
Communication port protocol
|
Ethway/X-Way
|
|
Modbus TCP
|
|
Uni-Telway
|
|
Maximum number of connections
|
64
|
|
Web server
|
Transparent ready class C10
|
|
web feature
|
Data Editor (via PC terminal)
|
|
Rack viewer
|
|
FactoryCast configurable
|
|
Memory description
|
User web page size 1.4 MB
|
|
Marking
|
CE
|
|
Product compatibility
|
PL7 Pro
|
|
Current consumption
|
1200 mA 5 V DC with remote power supply (AUI)
|
|
800 mA 5 V DC without remote power supply (RJ45)
|
|
Module format
|
Standard
|
|
Net weight
|
0.37 kg
|
