Landa pull type mini tubular solenoid TU1938 stroke up to 8mm, pull type, no spring return, force up to 10N, 100% duty cycle the power consumption up to 6w, widely use for automation devices.
Product Description
| Specifications | |||
| Brand | Landa | Product Name | tubular push pull solenoid |
| Model | TU1938 | Rated Voltage | DC 12v 24v |
| Power | 4-40w | Force | 0-10N |
| Waterproof Class | IP65 | Duty Cycle | 1-100% |
| Stroke | 0-8mm | Material | Metal, Electronic Parts |
| Action Form | Holding type | Weight(N.W.) | 0.08kg |
| Install Style | Screw | Thread Size & Deepth(mm) | – |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Insulation Class | B |
| Packaging Details | |||
| Body Size | D19*L38(mm) | Carton Box Size(Standard) | 350*310*180(mm), accepted custom |
Features
tubular solenoid features
1. Push-pull type, linear motion, DC solenoid electromagnet, supply reset spring or no reset spring plunger.
2. Tubular solenoid are excellent used for locking solenoids, whether for doors, security or industrial machinery.
3. Typically used for longer stroke, can also be designed for high force heavy duty applications.
4. Single hole mounting holes, easy to install, accepted custom as you needed.
Detailed Images

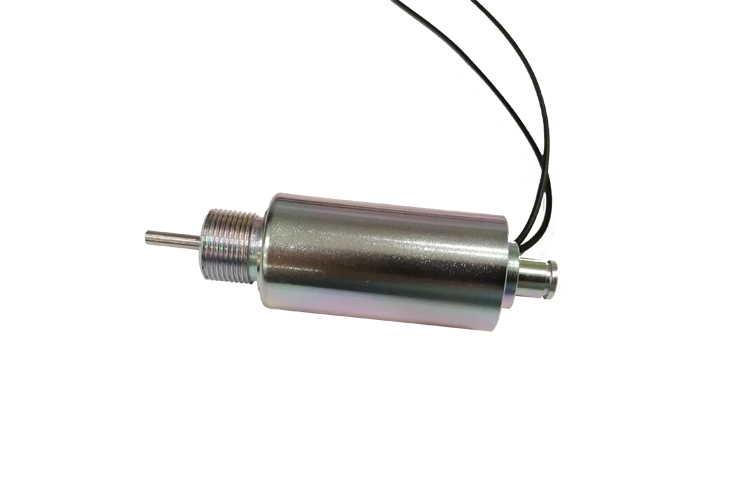

dc 12v 24v tubular solenoid

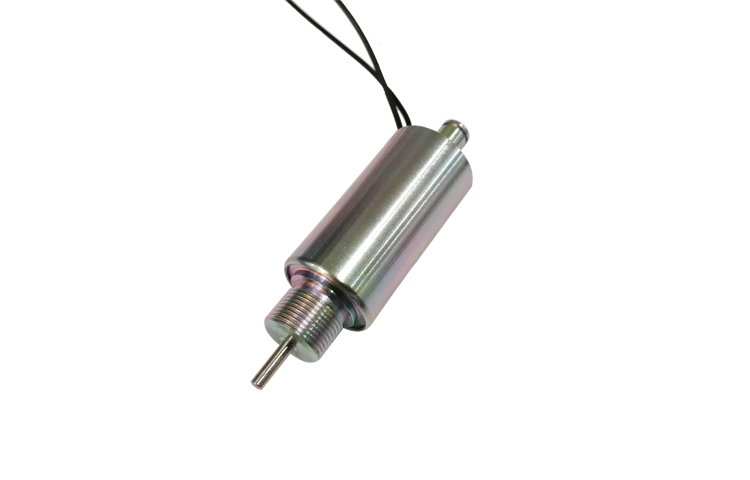

tubular push pull solenoid

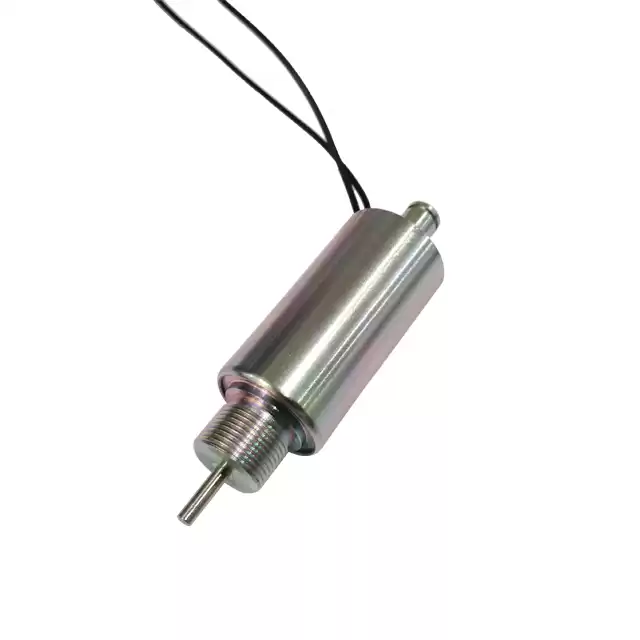

push pull solenoid

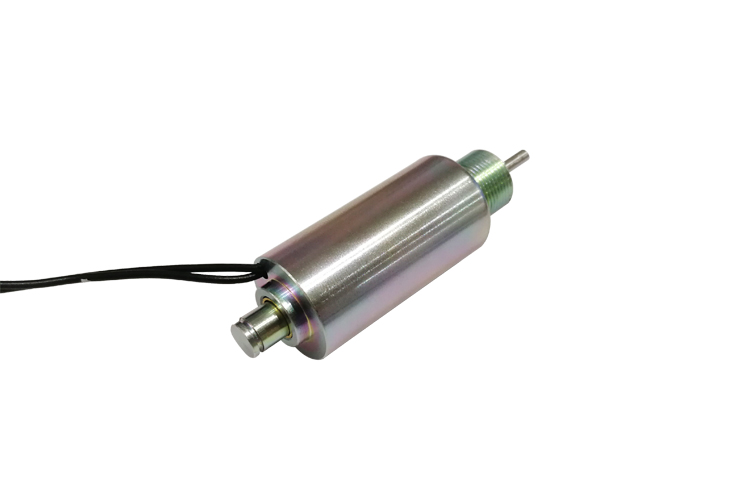

dc solenoid

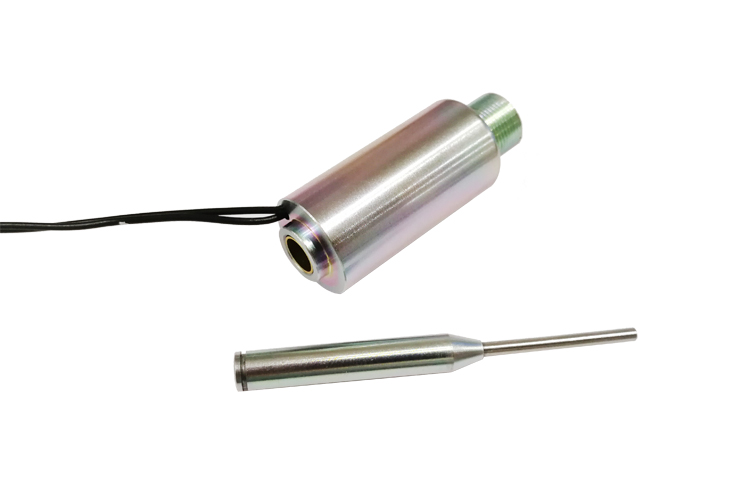

solenoid electromagnet

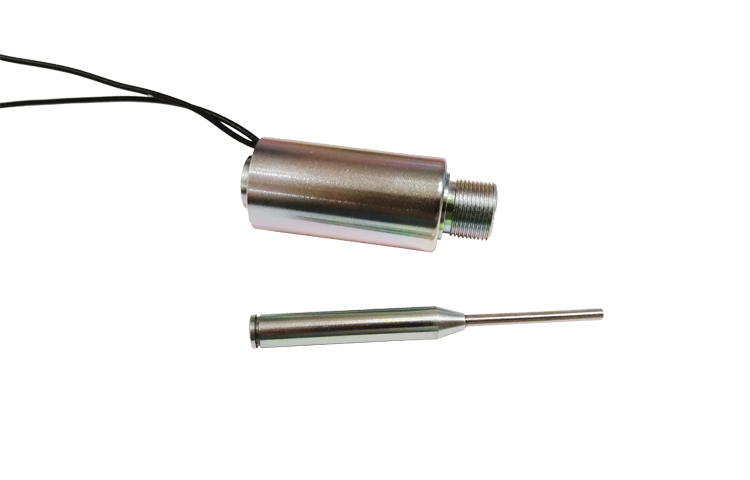

Small Push Pull Linear Solenoid
