Tube and Hollow Section Laser Cutting Machine
|
Model
|
Laser
|
Tube length
|
Cutting range
|
Application
|
|
F6015GE
|
1KW-2KW
|
6 Meters
|
20-150mm
|
SS CS brass, aluminium pipe and tube
|
|
F6020GE
|
1KW-2KW
|
6 Meters
|
20-200mm
|
SS CS brass, aluminium pipe and tube ,U
beam. L beam..
|
|
F6030GE
|
1KW-2KW
|
6 Meters
|
20-300mm
|
SS CS brass, aluminium pipe and tube ,U
beam. L beam..
|
|
Cyptube/Protube
control.WSX or Precitec cutting head.auto materials feeding and finished
parts collection….
|
Tube and Hollow Section Laser Cutting Machine Features:
·
Max raw material length – 6m
·
Weight capacity 15KG per metre.
·
Max outside dia. – 200mm
· auto loading One of 7 tube machines
. follow-up Coordinate positioning tube supporting system
. dual pneumatic control chucks.
Baisheng Tube Laser cutting machine its
capacity to process – tubes made besides carbon steel and stainless steel tubes – tubes made of copper, brass and aluminium.

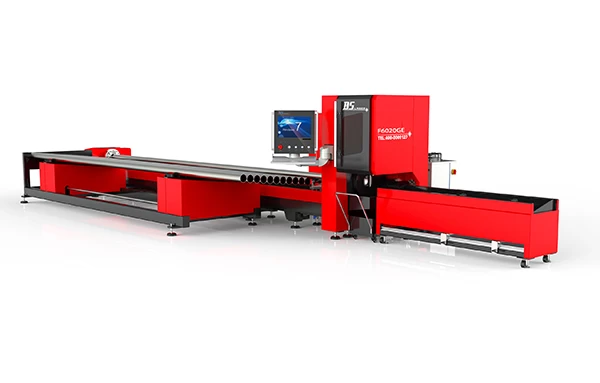

With the pipe laser F6020GE fabricators can provide precise, sub-contract laser tube cutting
services cutting solution for all your
tube, box and hollow section cutting requirements.
Compared to conventional processes such as
sawing, drilling and milling, innovative features implemented during the design
stage, laser tube cutting can result in a reduction of manufacturing costs and
lead times for clients. Find out how simple design changes such as
slotting, tagging and marking can save you time and money.

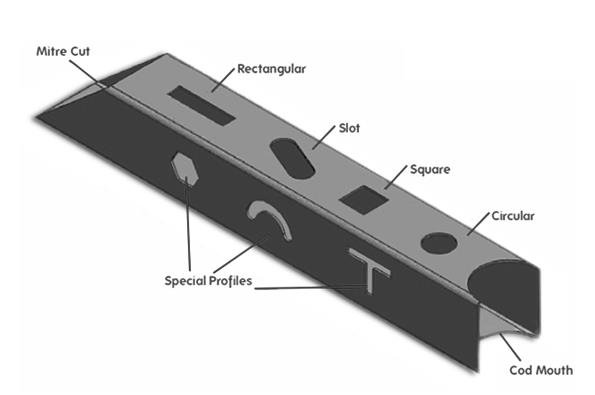

Bslaser tube and box laser cutting machine can
process highly complex shapes including mitre cut, cod mouth, and special
profiles. Offering a quick, precise and effective solution at a fraction of
traditional fabrication costs
