Tube & Pipe Laser Cutting Machine for Round Pipe Square Tube Rectangle Tube

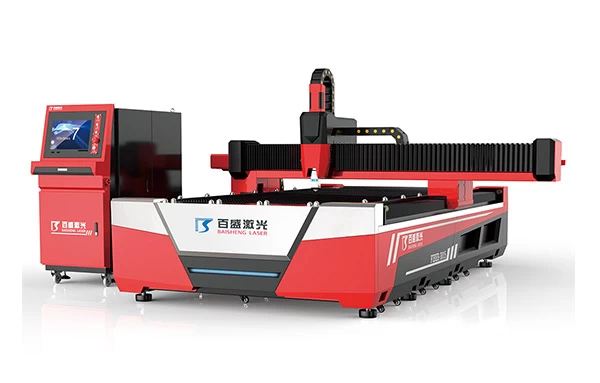

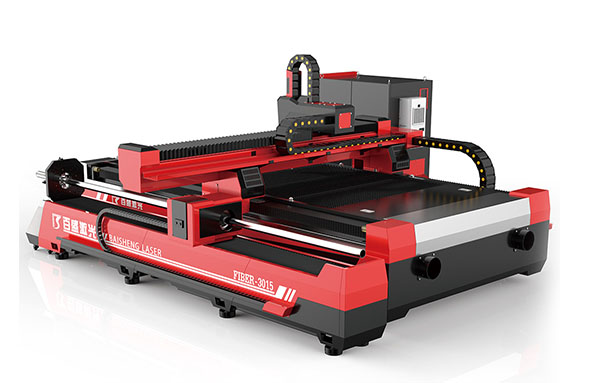

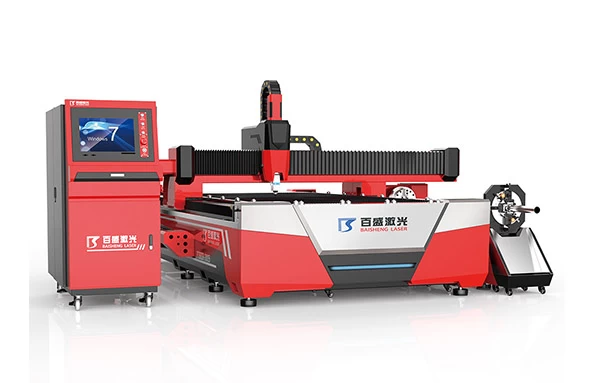

Plate and tube laser cutting machine is designed for cutting both metal pipe and metal plate (Stainless steel, carbon steel, aluminum, brass etc.) it is multifunctional laser ,best for fabricators who providing contract processing serivice.
Features of Plate and tube laser cutting machine:
1.Specialized pipe rotary attachment with advanced pneumatical chuck improving loading materials efficiency
2.Considerate design of dust removing system with different cavities, and huge wind channel improves the working condition
3.Smart control .lubrication system and easy loading materials design
4.Unique“W “ extra beams to strength the machine bed. longer lifespan and allows better cutting accuracy.
5.Extruding aviation grade aluminium beam ,3 guideways with 2 on top and 1 on side wall -7 structure-,lighter in weight but tough.
6.Imported or China origin control systems or auto focus cutting heads.
7.China Earlier manufacturer of dual use pipe and sheet laser with 3 years history of building such laser,hundreds of users .
Parameters of Baisheng Fiber Laser cutting Machine:
|
Brand and manufacturer
|
Baisheng Laser, Guangzhou Baisheng Electron co.Ltd
|
|
Machine Model
|
F3015BE
|
|
Dimension
|
5200*5000*1900mm
|
|
Laser power
|
700w 750w 1000w 1500w 2000W 2200W
|
|
Machine weight
|
4500KG
|
|
Fiber laser Generator
|
Raycus, IPG
|
|
Laser wavelength
|
1080nm
|
|
Laser Beam quality
|
<0.373mrad
|
|
Worktable
|
Sawtooth with pneumatic easy moving attachment
|
|
Fiber Laser cutting head
|
WSX Precitec Raytools..auto focus head
|
|
Focus lens
|
lens and parts are original
|
|
Working life of fiber module
|
More than 100000 hours
|
|
Motors & Drivers
|
Japan or France brand
|
|
Reducer
|
Imported high precision and output torque, low noise
|
|
Guide Rails
|
High accuracy linear , from Taiwan
|
|
Transmit system
|
DUAL drive rack and pinion 4 servo motors .
|
|
Chain system
|
Enclosed high quality
|
|
Water Chiller
|
TEYU ( S&A) brand, or Hanli
|
|
Control system
|
Professional laser control system--Cyptube
|
|
Position type
|
Red Dot pointer
|
|
Cutting thickness
|
≤8mm(stainless steel)
≤16mm(carbon steel)
|
|
Max. Idle Running Speed
|
110M/min
|
|
Max Cutting Speed
|
35m/Min
|
|
Geometric Position Accuracy
|
within ±0.05mm/M
|
|
Reorientation accuracy
|
within ±0.03mm/M
|
|
Lubrication system
|
Auto Electrical motored,smart control led display
|
|
Min. Line Width
|
±0.02mm
|
|
Power Consumption
|
8-21KW total
|
|
Auxiliary gas system
|
Japan SMC series components, dual air inlets, low pressure piercing , automatic pressure adjustment and switching
|
|
Power supply Voltage
|
380V/50Hz/60Hz
|
|
Auxiliary Gas for cutting
|
Oxygen, Nitrogen, Air
|
|
Compatible software
|
Autocad, Coreldraw, etc
|
|
Graphic format
|
DXF/PLT/AI/iges/
|
|
Working method
|
Industrial PC control with console desk and romote
|
|
Total power protection rating
|
IP54
|
