CHARACTERISTICS

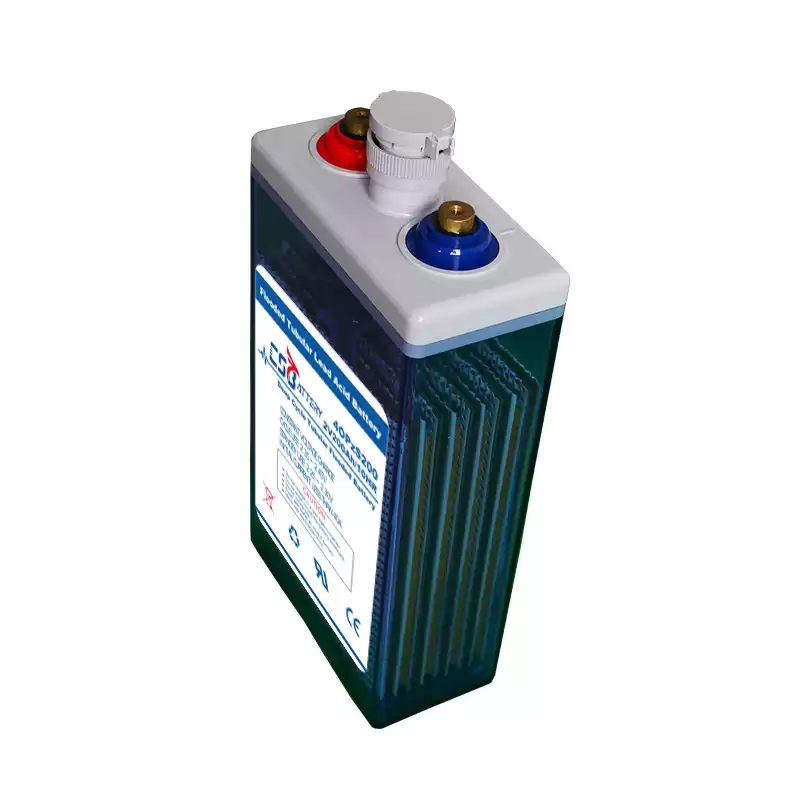

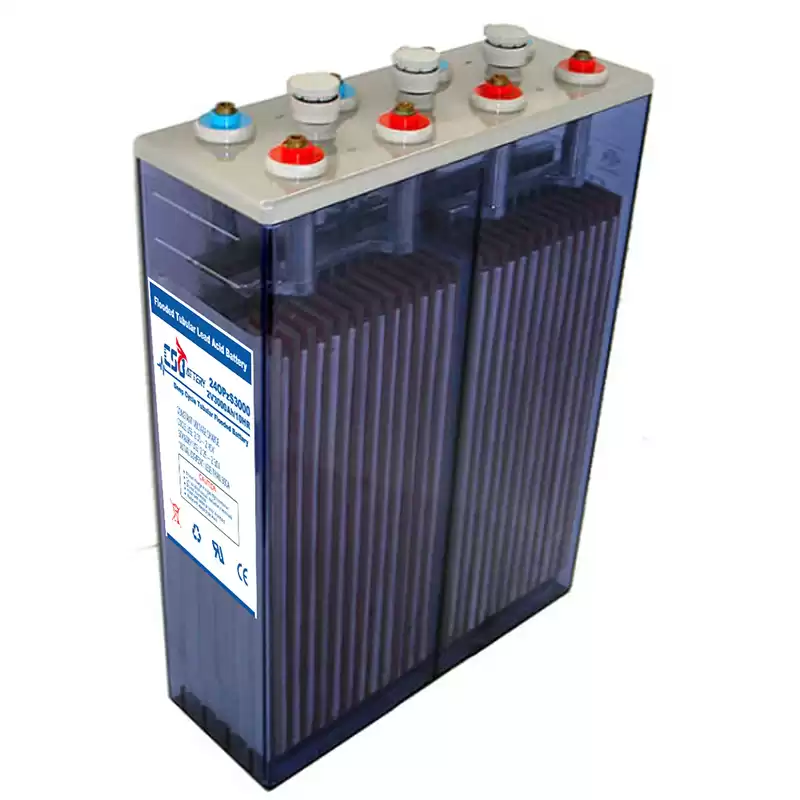

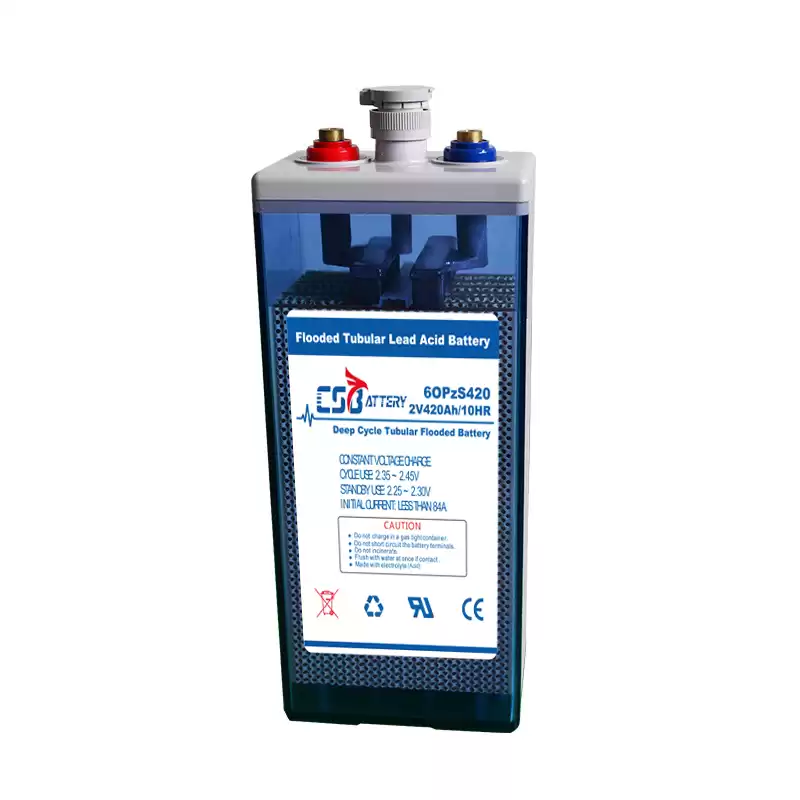

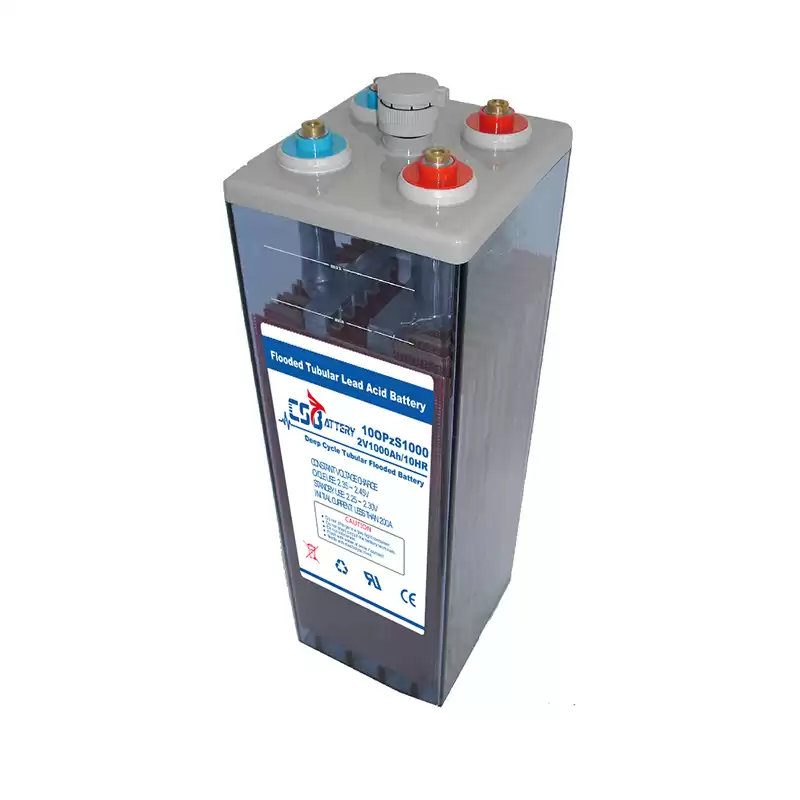

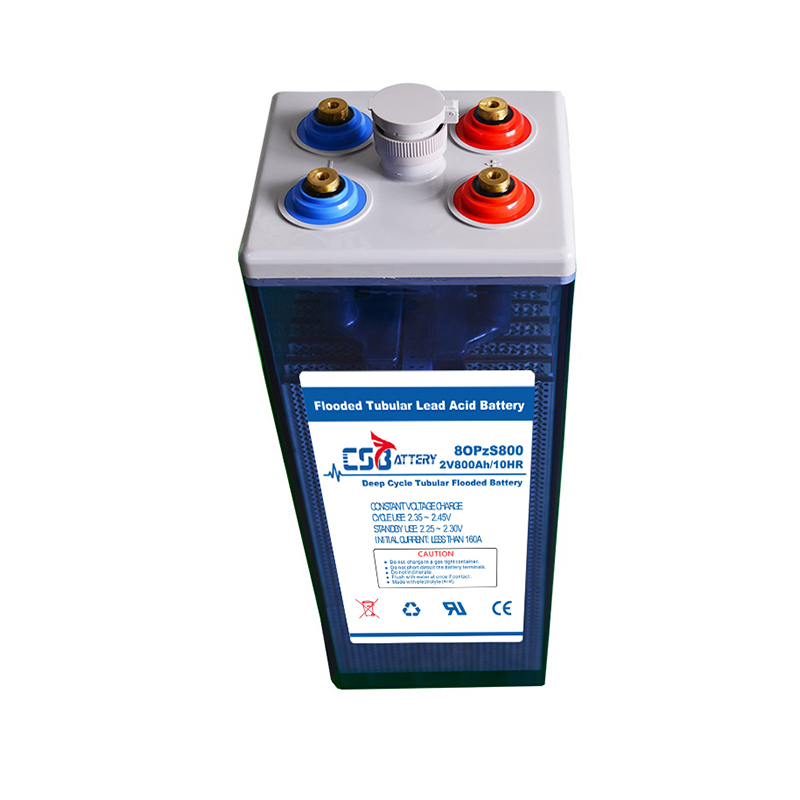

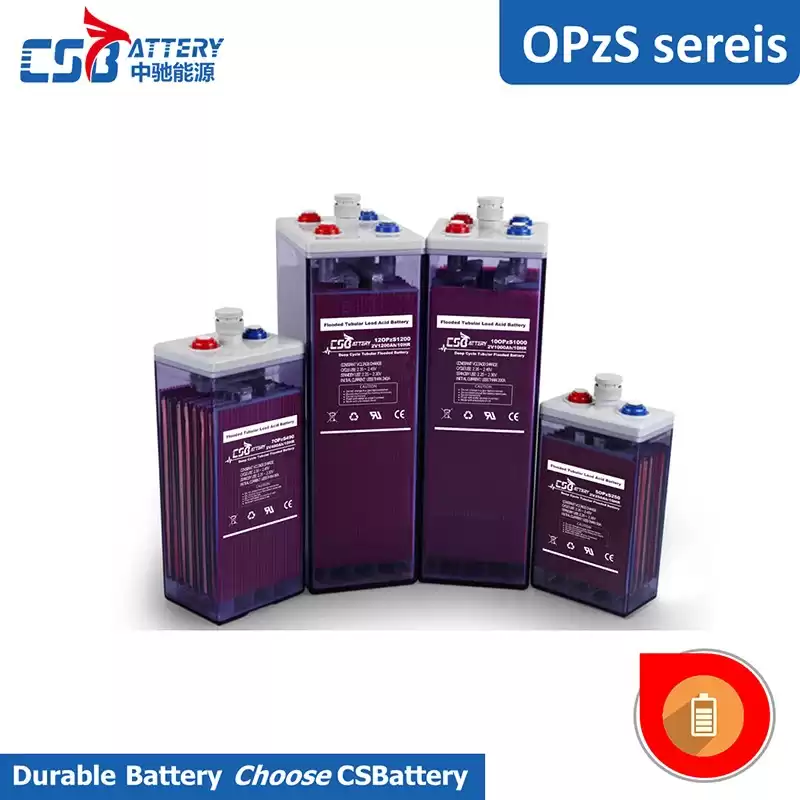

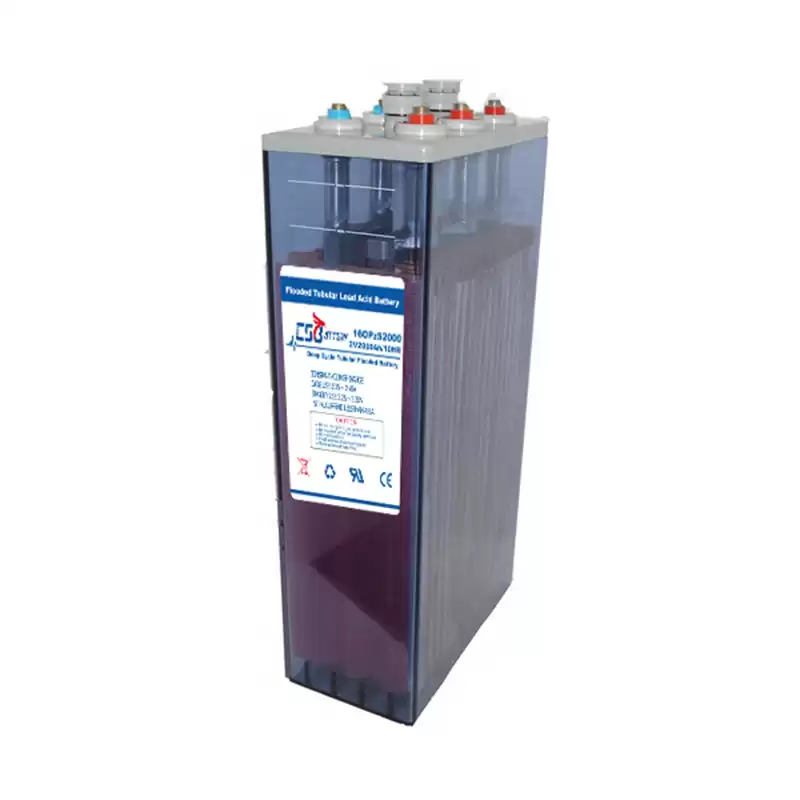

CSBattery OPzS TUBULAR Flooded BATTERY LONGEST LIFE BATTERY FOR SOLAR
- Voltage: 2V
- Capacity: 2V200Ah~2V3000Ah
- Designed floating service life: >20 years @ 25 °C/77 °F.
- Cyclic usage： 80% DOD, >2000cycles
> Summary for Deep Cycle Tubular Flooded OPzS Battery
- By combining the newly developed tubular positive plates , CSBattery created the innovative OPzS(V) range of batteries. The range offers 20 years design life and super high deep cycling capabilities. This range is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.
- OPzS batteries are safer for the environment, and safer to use – they have no water levels to check or terminals to clean, without risks of dangerous acid spills, and can be installed in any position. OPzS Batteries can be recharged much faster than flooded lead-acid batteries.
> Features and Advantages for Deep Cycle Tubular Flooded OPzS Battery
- Over 20 years design life at floating condition @ 25°C
- Wide operating temperature range from -40°C to 60°C
- Tubular positive plate with prolonged cycle life
- Lead Calcium die cast grid with improved corrosion resistance capability
- Low self-discharge rate and long shelf life
- Excellent deep discharge recovery capability
> Construction for Deep Cycle Tubular Flooded OPzS Battery
- Positive Plates：Robust tubular plates consisting of Pb-Ca-Sn alloy, optimized for high corrosion resistance, offer an extreme high cycling expectancy；
- Negative Plates: Grid plate construction consisting of lead calcium alloy；
- Separator: Microporous and robust PVC-SiO2 separator, for positive and negative plates and optmized for low internal resistance；
- Container: ABS (UL94-HB), Flammability resistance of UL94-V1 can be available upon request；
- Terminal Poles: Screw connection for easy and safe assembly and maintenance-free connection with excellent conductivity；
- Valves: Release gas in case of excess pressure and protects the cell against atmosphere, reasonable open and close valve pressure, high reliable on performance.
> Deep Cycle Tubular Flooded OPzS Battery Complied Standards
- Ø IEC 60896-21/22 Ø IEC 61427
- Ø ISO9001, Ø ISO14001, Ø ISO18001
- Ø Eurobat guide, Ø long life, Ø BS6290 part 4
- Ø GB/T 22473, Ø ICE, Ø IATA, Ø IMDG
> Deep Cycle Tubular Flooded OPzS Battery Applications
- Ø Off Grid Solar, Ø Off Grid Wind, Ø Telecom BTS, Ø Date Center, Ø Medical Equipments,
- Ø UPS systems, Ø Railroad Utilities, Ø Photovoltaic Systems, Ø Renewable Energy System and so on.
> OPzS Delivery time
- Normal, 35-40 days for production with injection molding Lead-plate by ourself
- As a OPzS factory we Can Support Urgent project with 20-30days.
- OEM brand is free charge.
