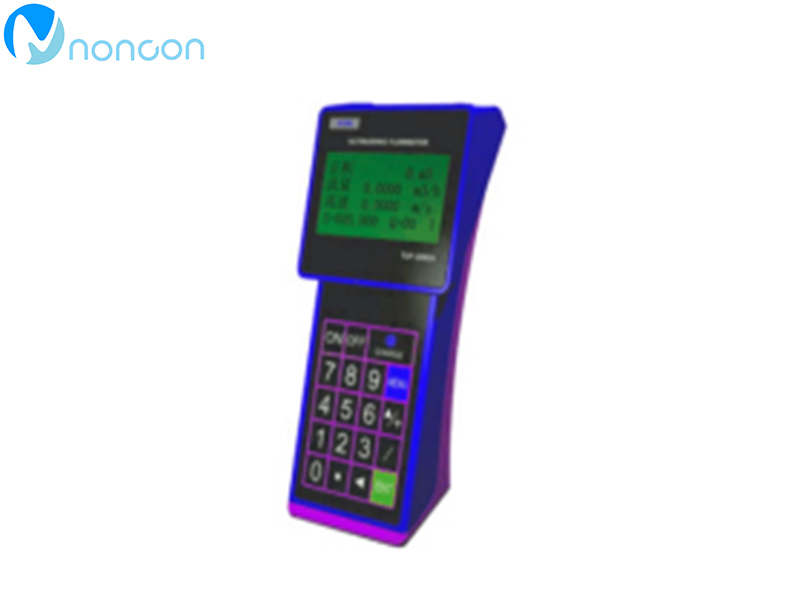

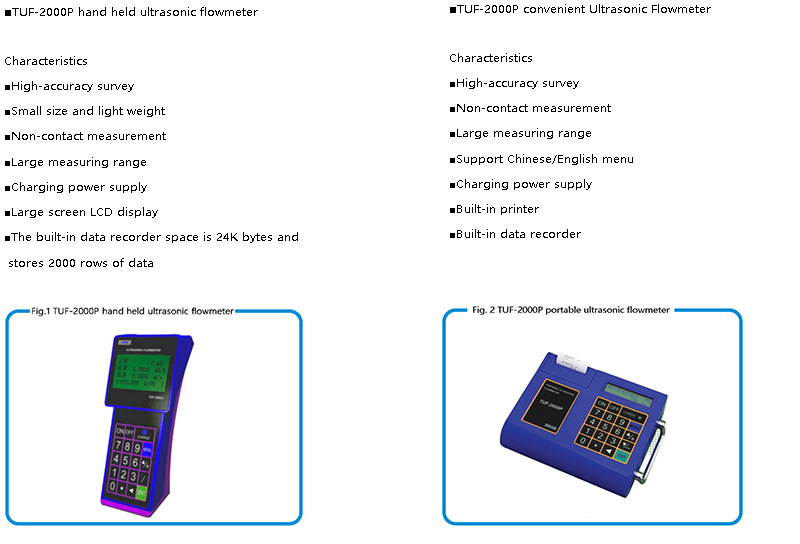

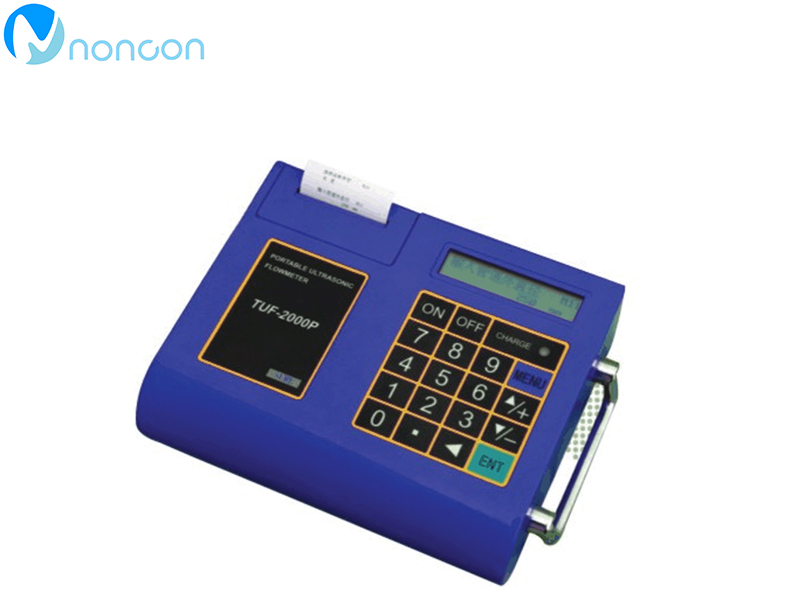

Features
■ High-accuracy survey
The linear excellent degree is better than 0.5%, the repeatability precision is better than 0.2%, and the measuring precision is better than ±1.0%.
■ Non-contact measurement
The flow measurement can be completed by adsorbing the magnetic ultrasonic flowmeter sensor to the outer wall of the pipe.
■ Large measuring range
Different types of sensors can be used to measure the flow of the DN15-DN6000mm pipe.
■ Support Chinese and English menus
Different versions of Flowmeter, can support Chinese or English menus, convenient and fast.
■ Charge power supply
Built-in large-flow Ni-MH rechargeable battery, can support the flowmeter to work continuously for more than 20 hours.
■ Built-in printer
Instant screen printing can be realized, and the measurement results of more than 20 items can be set ahead of time.
■ Built-in data recorder
The measurement results of up to 20 items can be uploaded to the computer or network communication.
Product type
Optional sensors Table 1
|
Optional sensors
|
Model
|
|
Describe
|
Measuring range
|
Temperature range
|
|
Miniature sensor
|
TS-1
|
|
Magnetic
|
DN15-DN100mm
|
-40 - 110℃
|
|
Medium size sensor
|
TM-1
|
|
Magnetic
|
DN50-DN1000mm
|
-40 - 110℃
|
|
Large sensor
|
TL-1
|
|
Magnetic
|
DN300-DN6000mm
|
-40 - 110℃
|
|
High temperature small sensor
|
HTS-1
|
|
|
DN15-DN100mm
|
-40 - 160℃
|
|
High temperature medium sensor
|
HTM-1
|
|
|
DN50-DN1000mm
|
-40 - 160℃
|
|
Optional additional hardware
|
Model
|
|
Describe
|
Measuring range
|
Temperature range
|
|
Ultrasonic thickness gauge
|
TT100
|
|
Accurate Measurement of Pipe Wall thickness and improvement of flow Monitoring accuracy
|
1.2-225.0mm
|
±1%H
±0.1mmH is measured object thickness
|
|
Extension signal cable
|
|
|
Length 10m×2
|
Suitable for measuring the distance of the pipeline from the host
|
|
Lengthening tensioner
|
|
|
Length 6m×2
|
Suitable for sensing fixation of pipes with diameter over 1000mm
|
|
Thermal printer paper
|
|
|
Length 30m
|
|
|
■TUF-2000B (F) fixed ultrasonic Flowmeter Table 2
|
Characteristics
|
Fundamental form
|
Functional form
|
|
External clamping type
■Safe without cut-out, no pressure loss
■Precision±1%
■Easy to install and maintain, users can install by themselves
■Lowest price, independent of measured caliber
■Suitable for environments with good working conditions
|
TUF-2000BNB
|
 TUF-2000BNB
|
|
Plug-in
■Safe without cut-out, no pressure loss
■Precision±1%
■Users need to be trained to use a special hole opener before installation
■High price, independent of measuring caliber
■Good reception signal, long - term stable and reliable operation
|
TUF-2000BNC
|
TUF-2000FNC
|
|
Standard section type
■Safety needs to be broken pipe, cut off flow, no pressure loss
■Precision±0.5%
■Safety maintenance needs to be cut off, users can install by themselves
■The larger the gauge, the higher the price
■Highest accuracy, good receiving signal, stable and reliable long-term operation
|
TUF-2000BNG
|
TUF-2000FNB
|
■TUF-2000F fixed split-type ultrasonic Flowmeter Table 3
|
Optional host
|
|
|
|
|
|

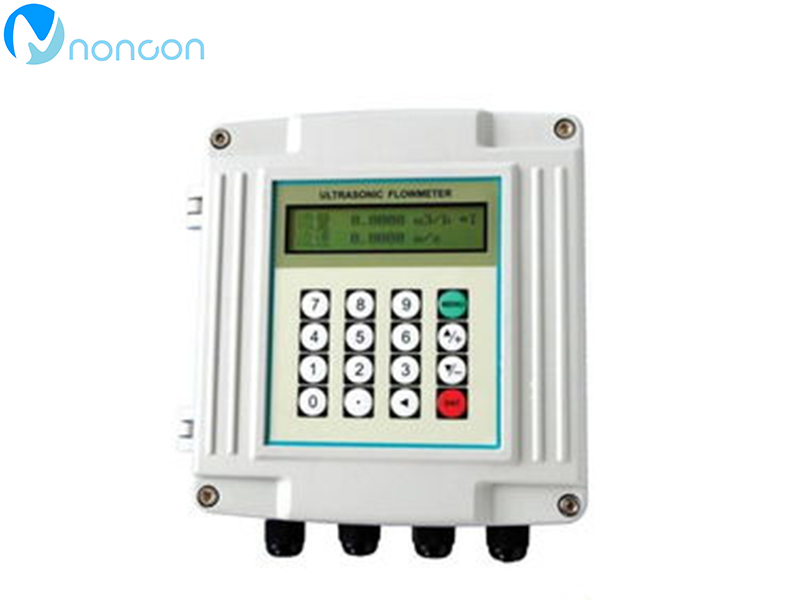

Wall-mounted TUF-2000FB
■Used for wall mounting
■Size：178×165×55mm
|

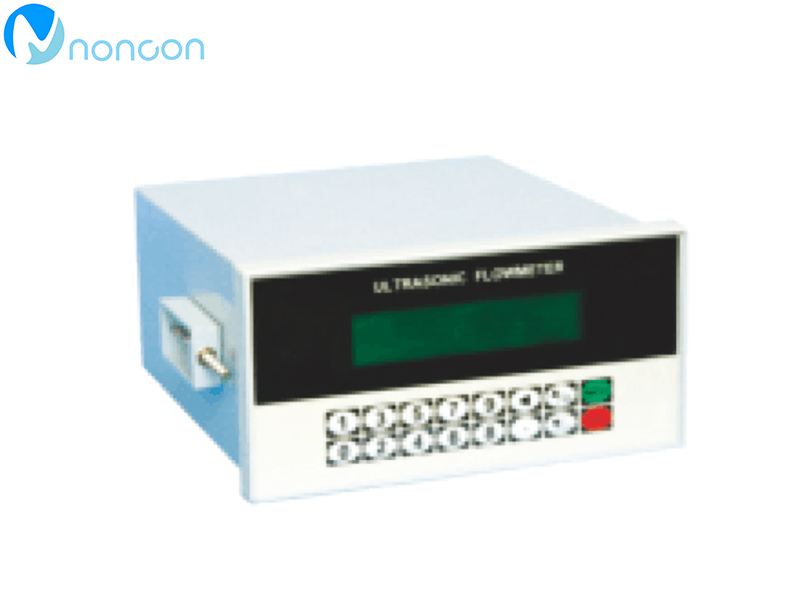

Disk type TUF-2000FS
■For dashboard installation
■Hole size：152mm×76mm
|
Explosion-proof type TUF-2000FD
■Explosion-proof grade D II BT4, used in explosion-proof occasions
■Size：285×265×90mm
|
Table 4
|
Optional sensors
|
|
Optional sensors
|
Basic model
|
Measuring range
|
fluid temperature
|
precision
|
source
|
import
|
export
|
communicating protocol
|
|
External clamping type
|
TS-1（small-sized）
|
TUF-2000BNB1
|
DN15-100mm
|
-30-90℃
|
±1%
|
A table Dc8-36 v
Secondary table
AC220V or DC24V
|
3 channel 4-20ma analog input
2-3 wire Pt100 resistance signal input
|
Isolate RS232/RS485 input
2-way isolated OCT output
1 way isolated 4-20mA output (passive)
|
METER-BUS protocol
MODBUS protocol
Fuji extension protocol
Simple water meter protocol
|
|
TM-1(medium-sized)
|
TUF-2000BNB2
|
DN50-100mm
|
|
TL-1(large-scale）
|
TUF-2000BNB3
|
DN300-6000mm
|
|
High temperature external clamp
|
TH2-1（small-sized）
|
TUF-2000BNB4
|
DN15-100mm
|
-30-160℃
|
|
THM-1(medium-sized)
|
TUF-2000BNB5
|
DN300-1000mm
|
|
Plug-in
|
TC-1(Standard insertion)
|
TUF-2000BNC1
|
DN80-6000mm
|
-40-160℃
|
|
TLC-2(Extended insert)
|
TUF-2000BNC2
|
|
Section type
|
Standard section type
|
TUF-2000BNG
|
DN15-1000mm
|
-40-160℃
|
|
