Product Item: Tune Princess hub + Sapim CX-Ray spoke lightweight disc road carbon wheels
Rim:
Carbonal disc brake carbon rims tubular & clincher tubeless. With
the best blend of lightweight, aerodynamic, high stiffness and great
strength to deliver the highest possible efficiency.

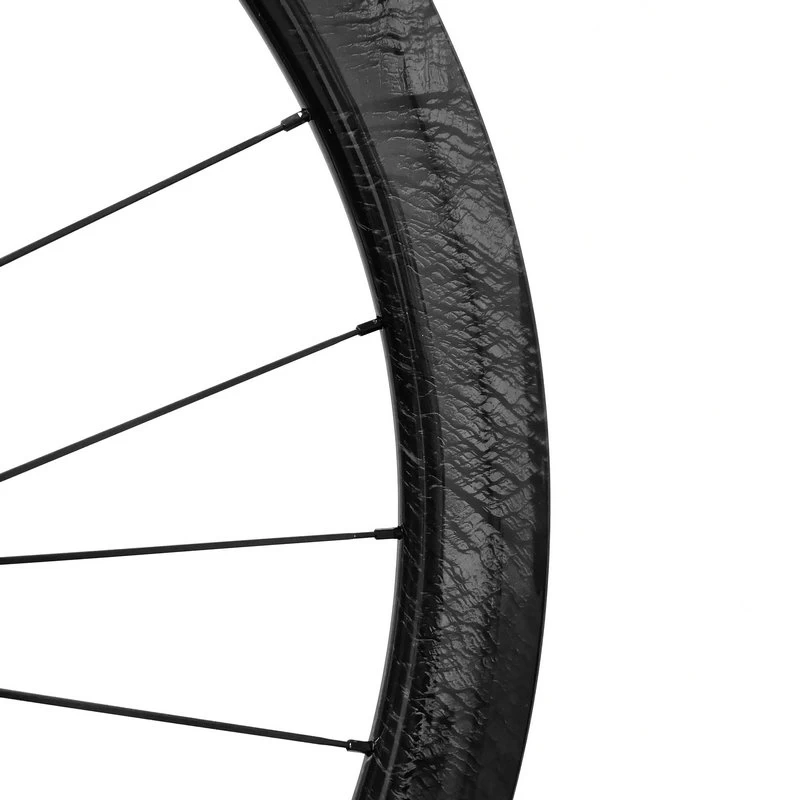

Rim carbon weaves available in: UD, 3k, 3k twill, 6k and marble, see different carbon weaves.

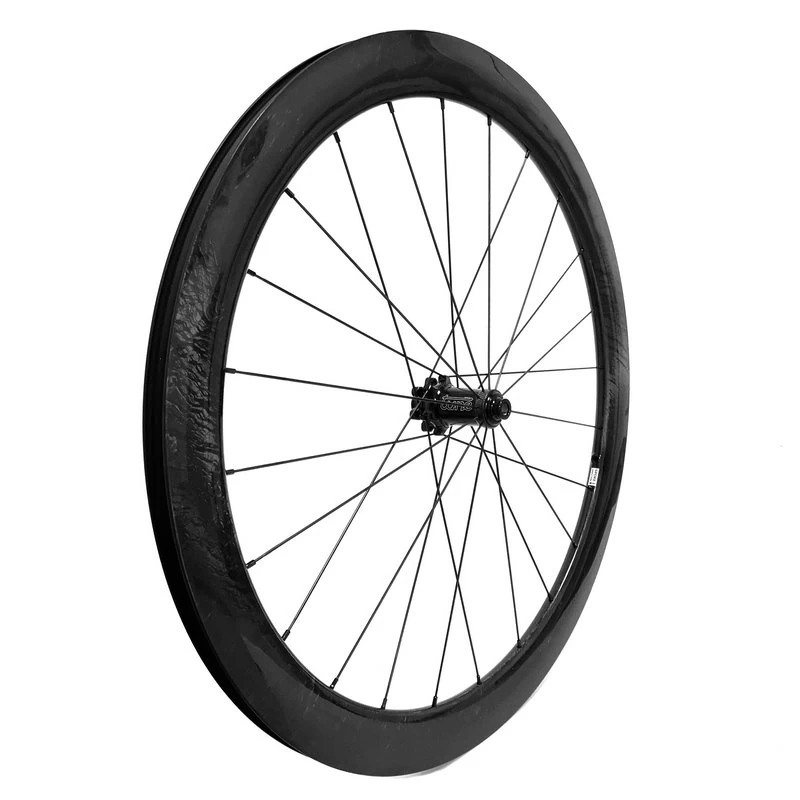

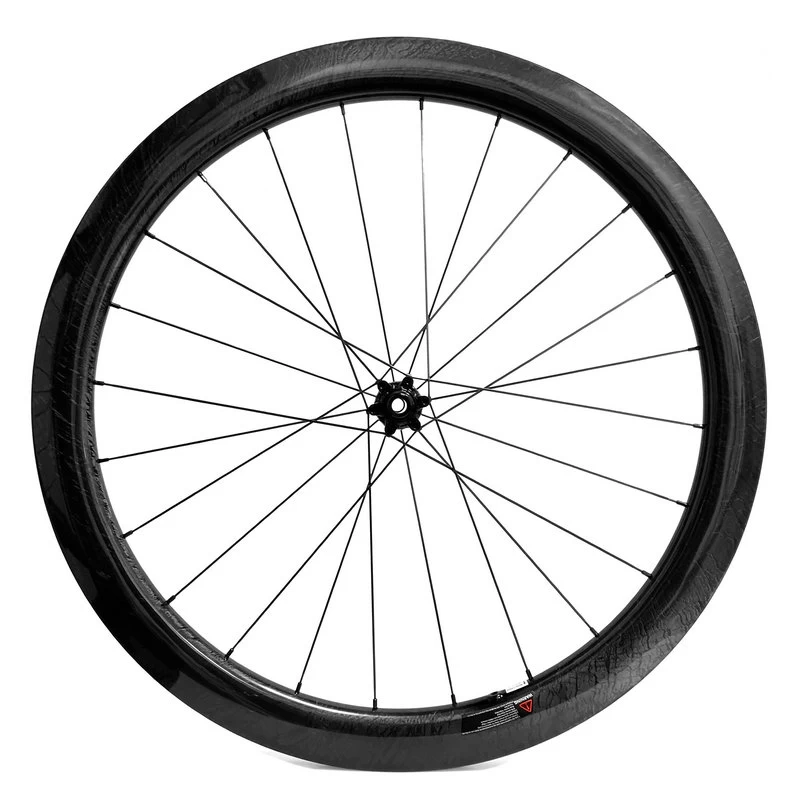

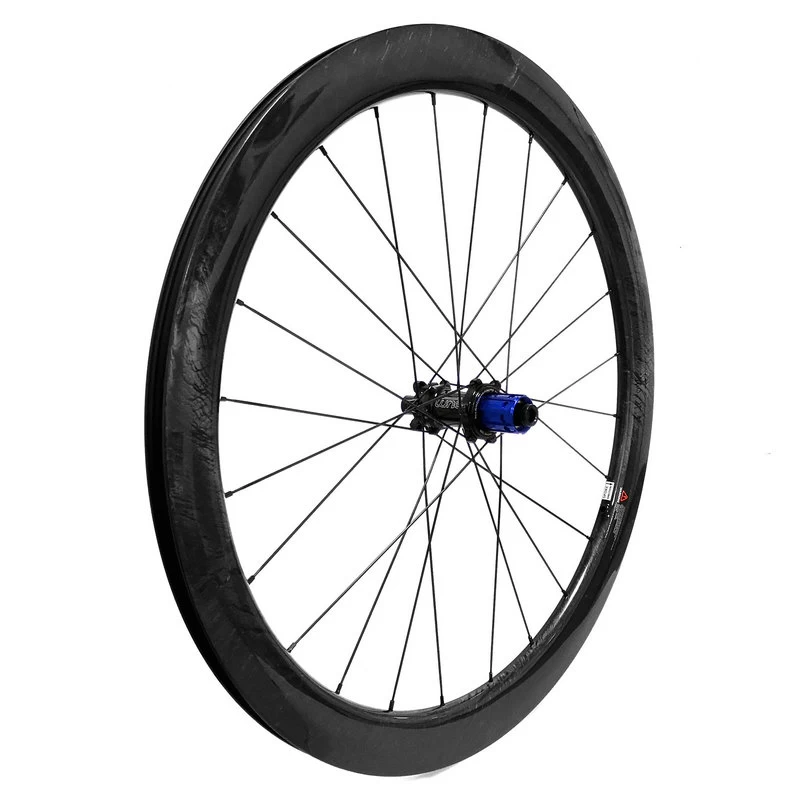

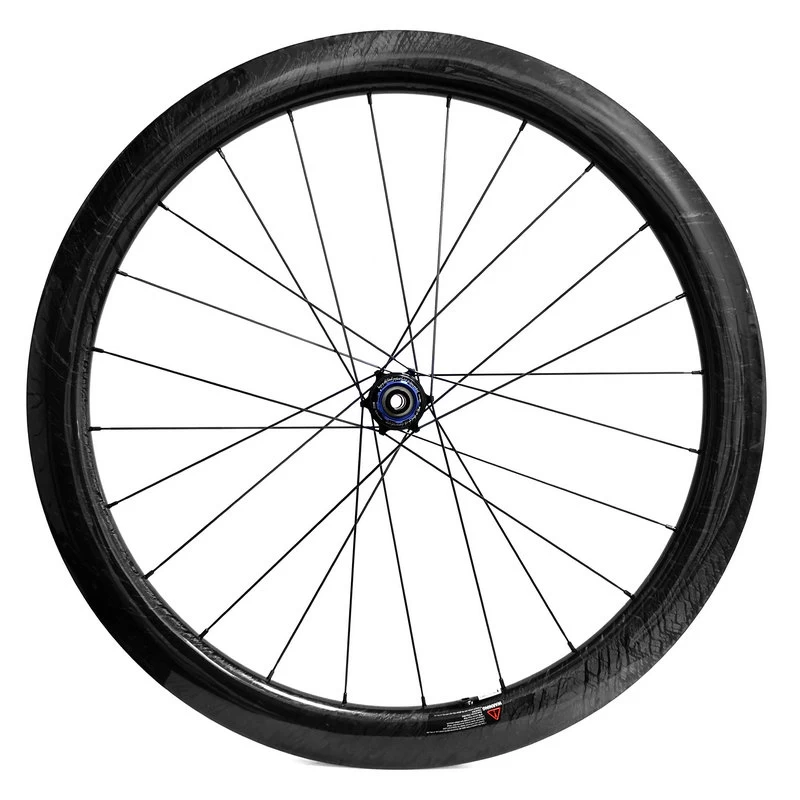

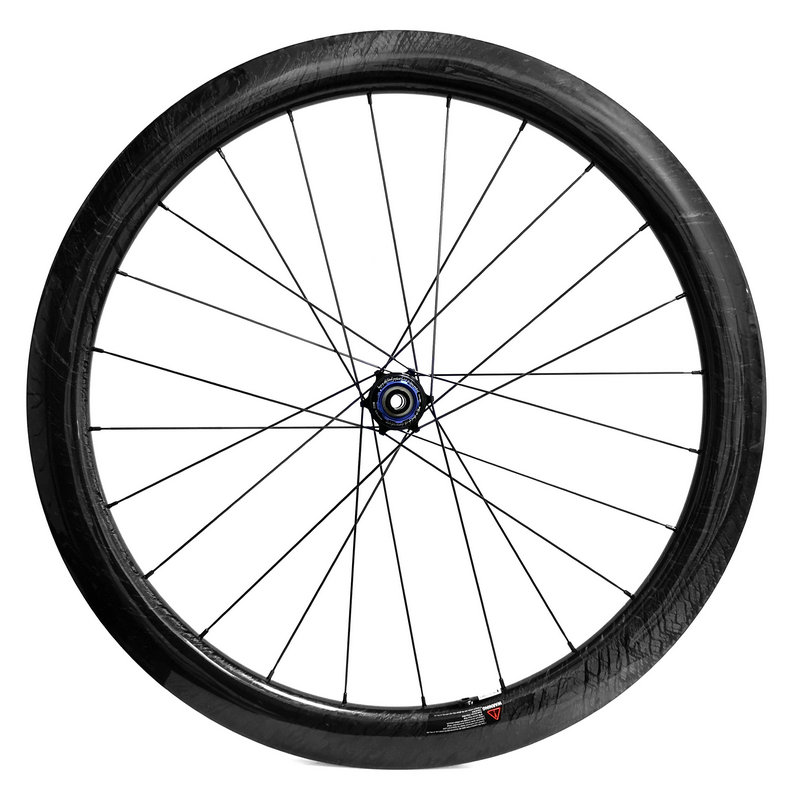

*The photos show wheelset is DX50D with marble weave, gloss finish.
5 years warranty.

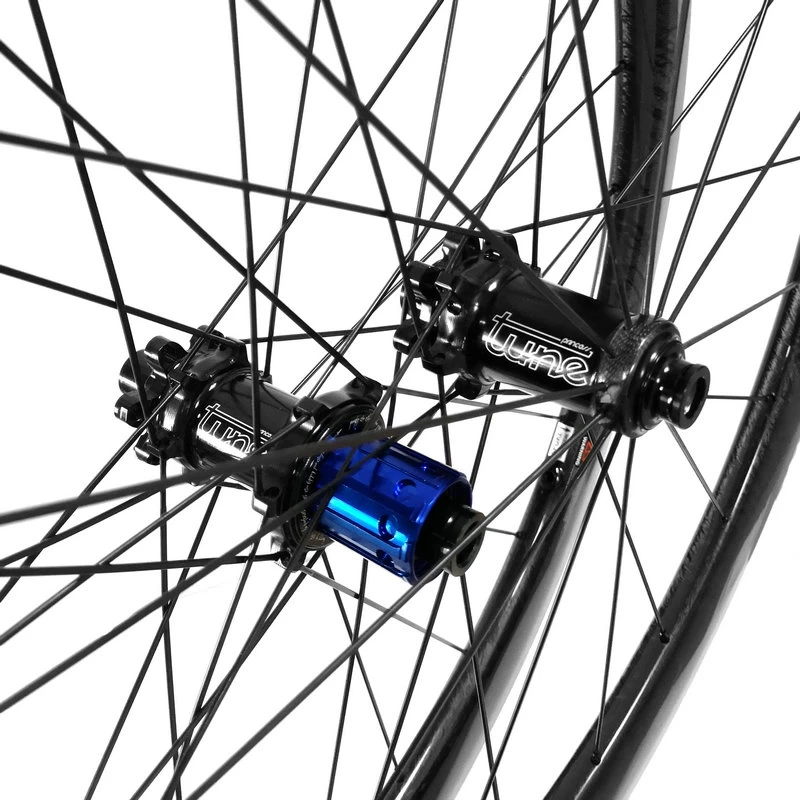

Hub:
Tune princess skyline & prince, straight pull;
Size-axle: Front - 100x12mm or 100x15mm, Rear - 142x12mm;
Driveshell: Shimano Road 11SP;
Brake system: Disc 6 bolts;
Hole: Front 24, Rear 24;
Color: black.
Spoke:
Sapim CX-Ray spoke, straight pull, black;
Nipple:
Sapim alloy, black or red.
Lacing:
Front wheel - disc side 2 cross, non disc side radial;
Rear wheel - 2 cross.
Weight:
Hub: 279g/set;
Spokes + nipples: 218g;
Weight without rims: 497g.
Rim model vs Complete wheel weight:
Model
|
Rim type
|
Rim weight / pc
|
Complete wheel weight (±5%) / set
|
Max weight limit
|
DT30S
|
700c tubular 30x25mm
|
290g
|
1077g
|
115kgs
|
DT38S
|
700c tubular 38x25mm
|
330g
|
1157g
|
120kgs
|
DT38D
|
700c tubular 38x25mm- asymmetric
|
330g
|
1157g
|
120kgs
|
DT50S
|
700c tubular 50x25mm
|
360g
|
1217g
|
125kgs
|
DT50D
|
700c tubular 50x25mm - asymmetric
|
360g
|
1217g
|
125kgs
|
DT60S
|
700c tubular 60x25mm
|
430g
|
1357g
|
130kgs
|
DT88S
|
700c tubular 88x25mm
|
530g
|
1557g
|
135kgs
|
DX30S
|
700c clincher 30x25mm
|
370g
|
1237g
|
115kgs
|
DX38S
|
700c clincher 38x25mm
|
400g
|
1297g
|
120kgs
|
DX38D
|
700c clincher 38x25mm - asymmetric
|
400g
|
1297g
|
120kgs
|
DX45S
|
700c clincher 45x25mm
|
430g
|
1357g
|
125kgs
|
DX50S
|
700c clincher 50x25mm
|
450g
|
1397g
|
125kgs
|
DX50D
|
700c clincher 50x25mm- asymmetric
|
450g
|
1397g
|
125kgs
|
DX60S
|
700c clincher 60x25mm
|
500g
|
1497g
|
130kgs
|
DX88S
|
700c clincher 88x25mm
|
720g
|
1937g
|
135kgs
|
DX38L
|
700c clincher 38x28mm
|
410g
|
1317g
|
120kgs
|
DX50L
|
700c clincher 50x28mm
|
460g
|
1417g
|
125kgs
|
* Complete wheel weights are subject to a ±5% variance.
* Each wheelset will ship with: spare spokes, nipples; freehub spacer for 10 speed cassettes.
* All clincher rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
Choose your favorite rim model, leave a message below to get a best quote for your next carbon road disc wheelset!
