Raw Material
Super material is the basis of the tools. We choose the high performance material with good wear-resistance, high hardeness and high toughness.
Carbide Rod Grade
| Type | Material | Co | Grain size | Flexural Strength |
| HRC45 | YG10X(Zhuzhou） | 10% | 0.7um | 3320N/mm2 |
| HRC55 |
YG10.2&WF25(Taiwan) |
10% | 0.6um |
4000N/mm2 |
| HRC65 | H10F(Sweden) | 10% | 0.5um | 4300N/mm2 |
Coating Grade
| Type | Hardness(HV) | Thickness(UM) | Oxidation Temp | Friction Coefficient | Color |
| AITiN | 3200 | 2.5-3 | 900 | 0.3 | Black |
| TiSiN | 3600 | 3 | 1000 | 0.45 | Copper |
| nACo | 42(GPA) | 3 | 1200 | 0.4 | Blue |
Excellent Coating
Good coating can inprove tools life and production effiency, as well as slove the cutting problems.
|

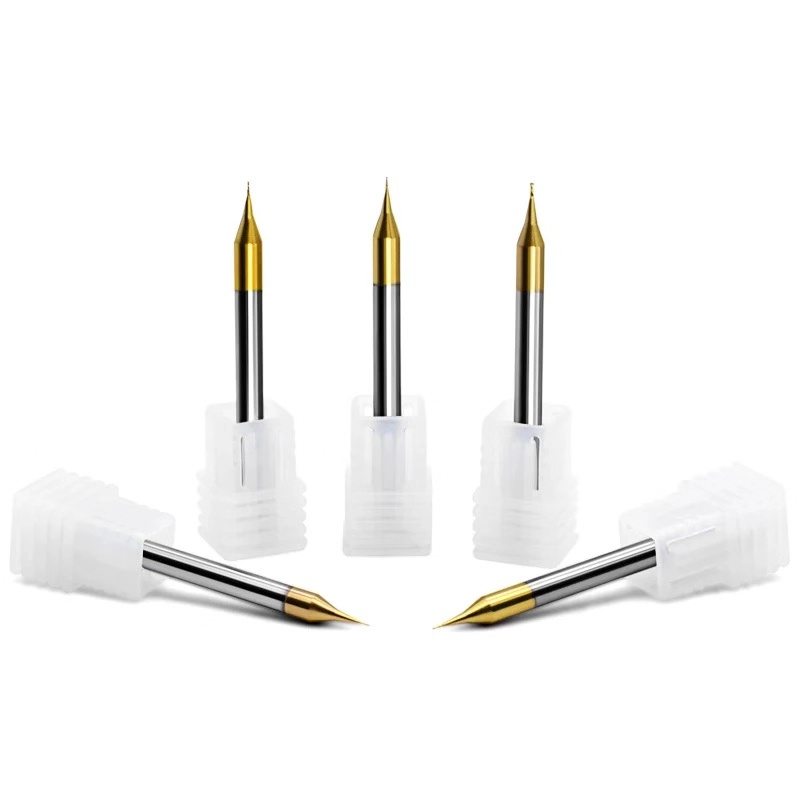

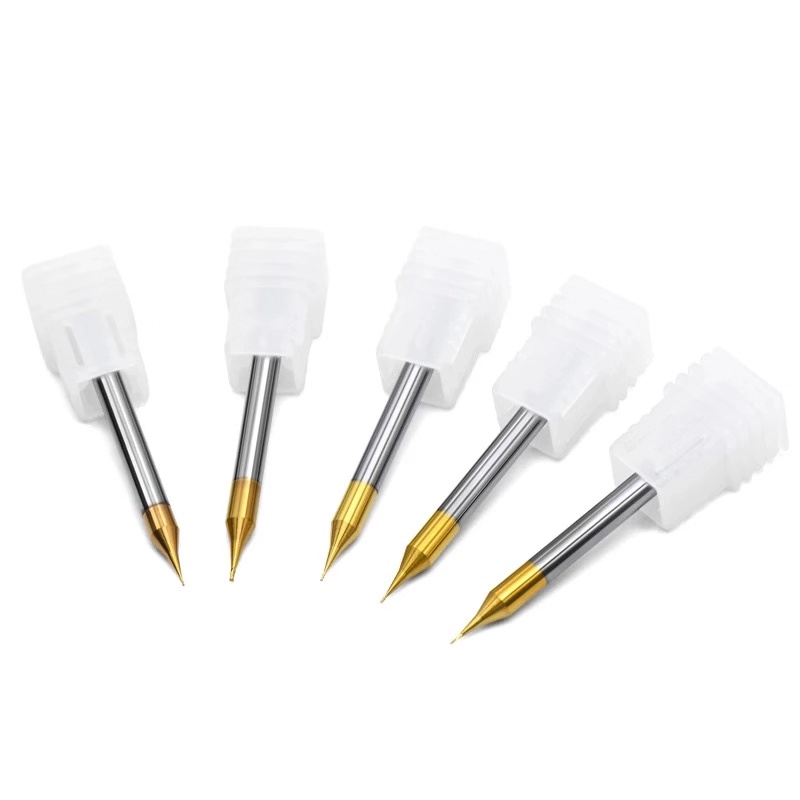

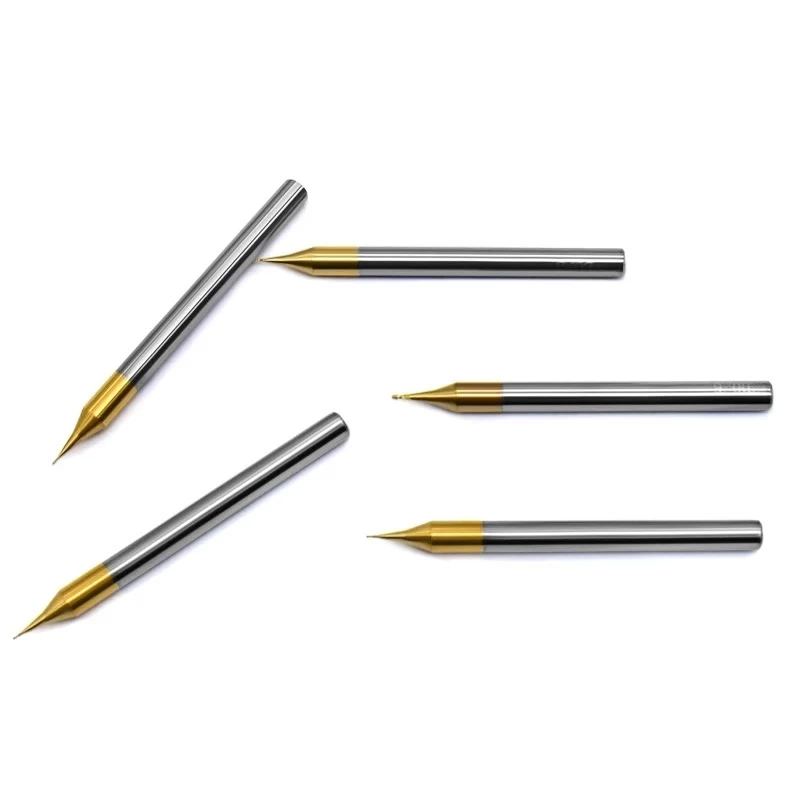

Name |
Solid Carbide End Mill |
|
Material |
Tungsten Carbide |
|
Flutes |
2/4/6 Flute |
|
Hardness |
HRC45, 55, 65 |
|
Helix Angle |
30° 35° 45°30° 35° 45°AlTiN, NACO BLUE, NACO BLACK, TiN etc. |
|
Coating |
AlTiN, NACO BLUE, NACO BLACK, TiN etc. |
|
HRC45, 55, 60, 65, 68 |
Flat end mill, ball nose end mill, corner radius end mill and aluminium processing end mill |
|
Size |
Dia: 1-20 mm, Overal Length:50-150mm |
|
Smooth Finish |
Highly Polished |
|
Feature |
Excellent chip evacuation |
Quality assurance
1. Equiped with world advanced grinding machine and coating machinies
2. Quality control system and inspector
Application
2-flutes tungsten end mill cutter is widely used in slotting, sinking etc. Wide range of use.
3-flutes is usede for slotting, side milling, heavy cutting and finishing.
4-flutes is suitable for shallow slotting, side milling and finishing.
6-flutes uses to machine high hardness material slotting and side milling.
Packaging & Shipping
1.1piece in a plastic pipe ,10pieces per group with air bubble paper in a carton for .
2.other packing can be achieved .Delivery Time :shipped in 5 days after payment
Buyer Feedback
Exhibition
FAQ
Q: Are you trading company or manufacturer ?
A: We are end mill factory.Our factory is located in zhuzhou City, Hunan Province. Welcome to visit our factory!
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we could not offer the sample for free, but we can give you a big discount for big order
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
