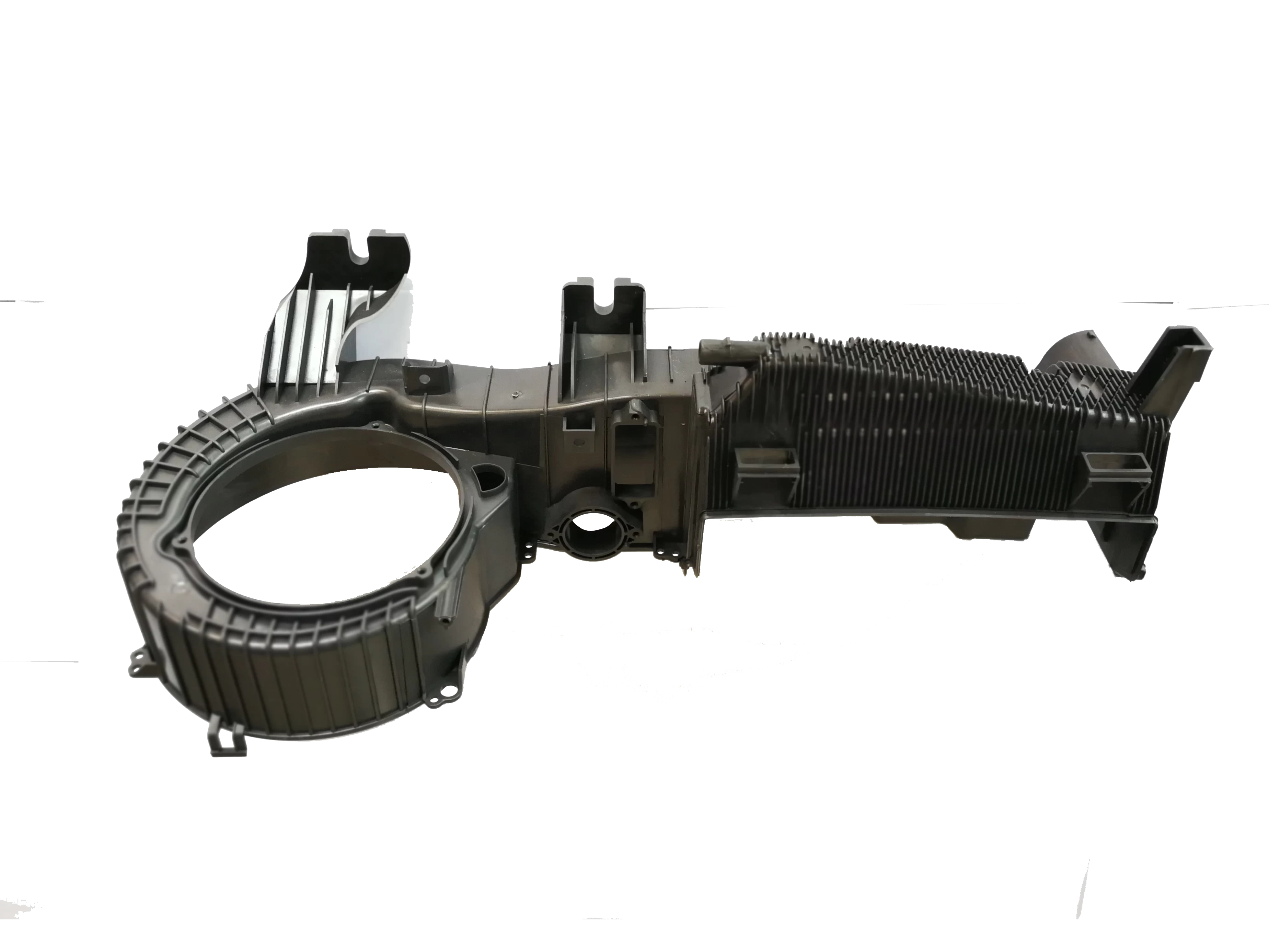

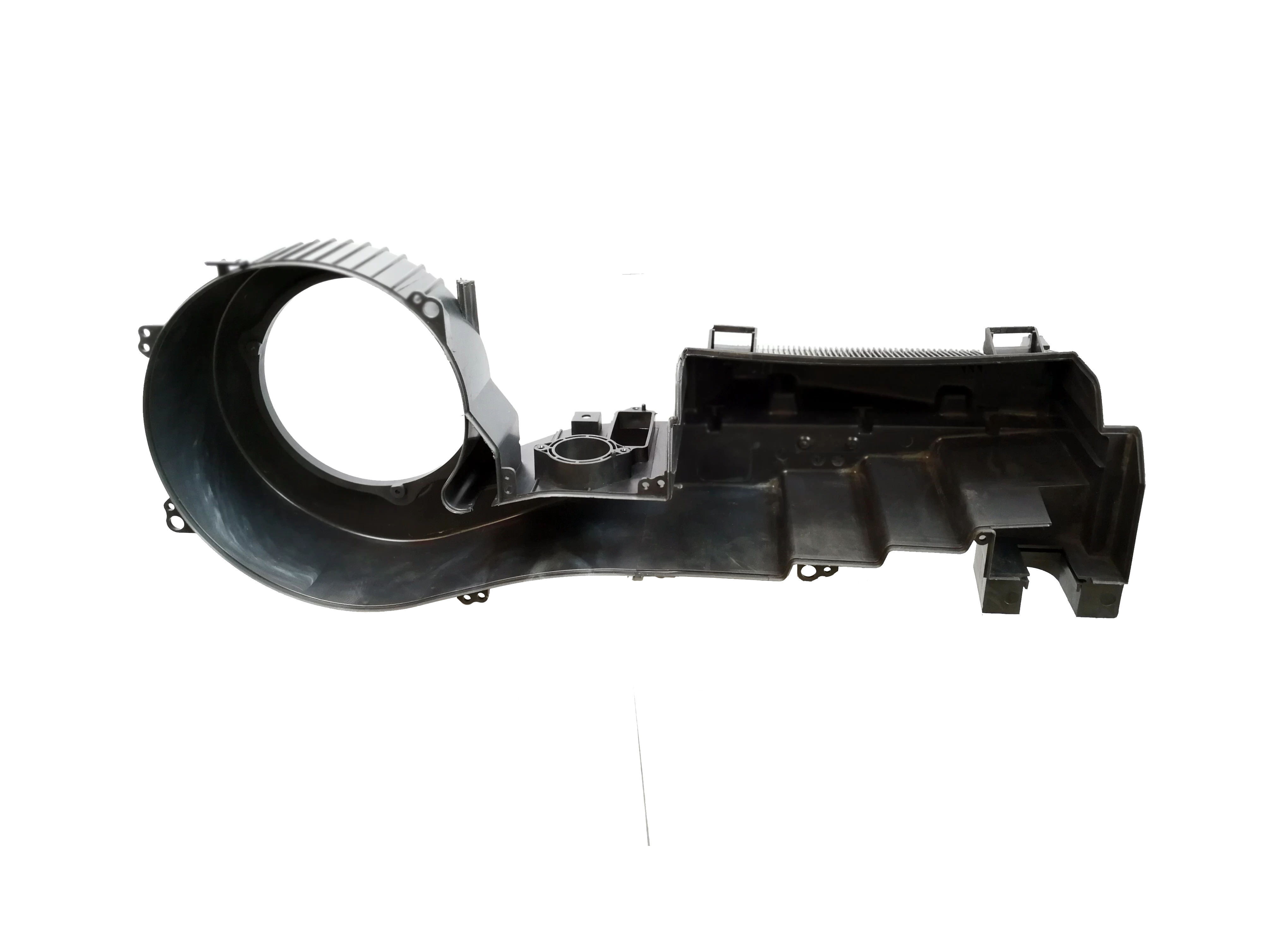

Product introduction: Turbine Montor Of Auto Air Conditioning Bellows is the key part of the air condition in the car, it belongs the temperature adjustment system of the car.
production process: Injection molding with PP T20
Injection tool information: 1+1 family tool, with Groditz 738H core/cavity steel
Major market:North America, Europe
Part size: 667X282X254mm
Plastic material: PP T20
Resin material is compliance with Rohs requirement.
Cavity No: 1+1
Steel material: Groditz 738H
Hot runner: YUDO hot runner 7 drops valve gate

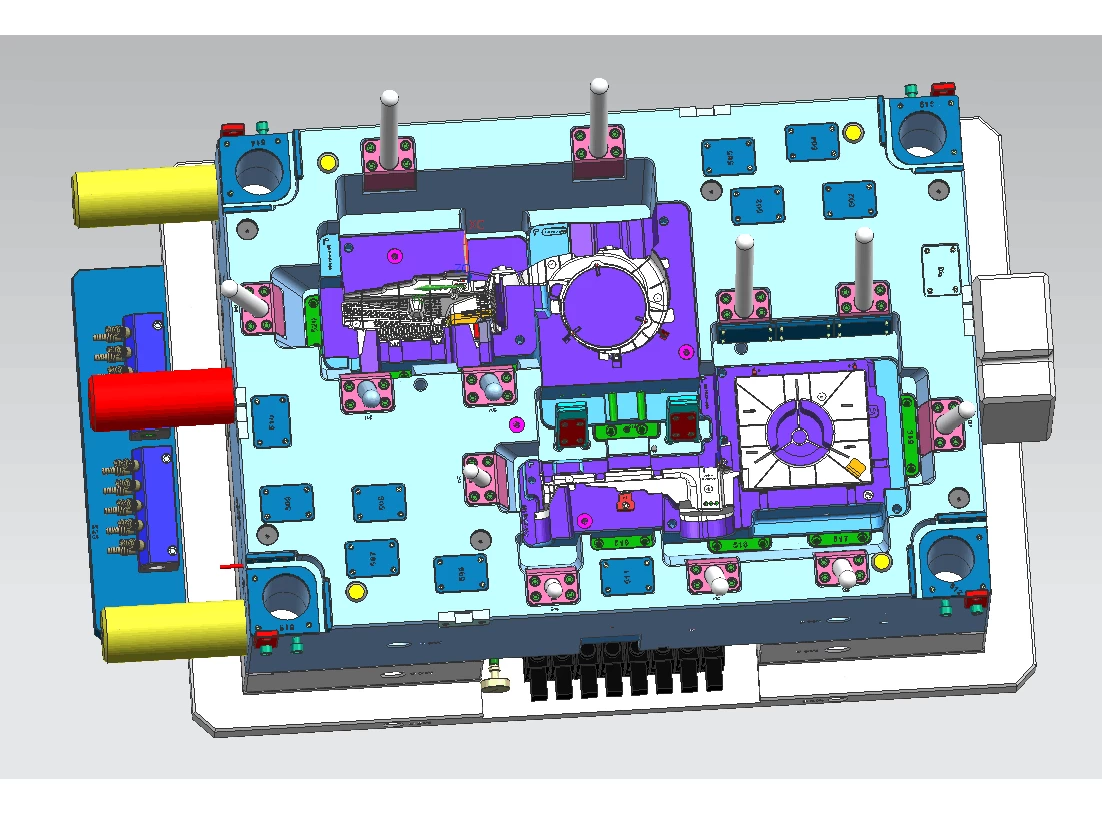

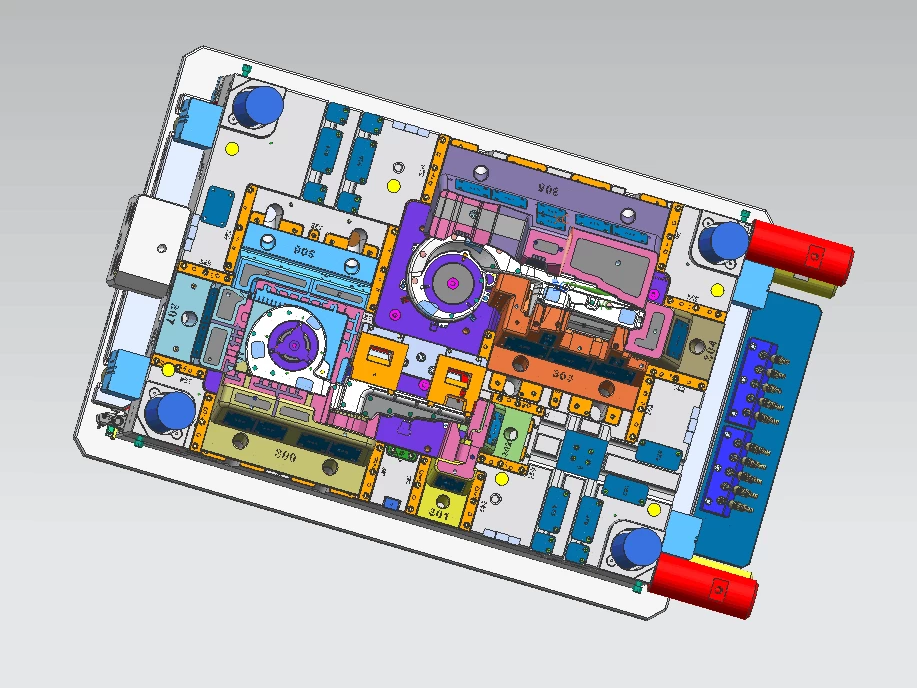

Mold size: 1830X1140X1186mm
Mold weight: 12650 KG
Special Mold structure: Inner pull core, slider in 4 side
what kenmold can do:
kenmold would consider the function of the parts and help customers to perfect the design of tools. kenmold can design specifically for each vehicle model.
