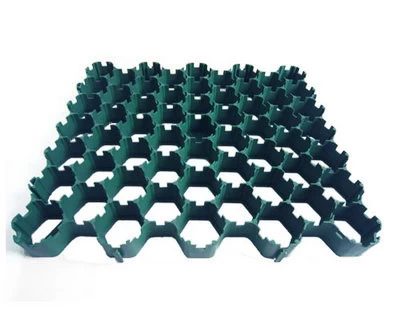

Turf Cell Grass Reinforcement Pavers

Turf Cell Grass Reinforcement Pavers Specification:

Item Code	MZ-450A
Material	HDPE
Size(L x W x H)	465x535x50mm
Color	Green
Compressive Strength	1964KN/sqm (200ton/sqm)
Working Temperature	Dimensionally stable for -40℃ to 90℃
Weight	5.5kg/sqm
Afforests Rate	95%~100%
Porosity	90%
Moisture Absorption	0.1%
Environmental Compatibility	No toxic, harmless to plants, animals, microorganisms, inert material, groundwater neutral
Anti HCL	According to GB4218-1984, 30%x24h, no visible change
Anti NaOH	According to GB4218-1984, 40%x24h, no visible change
Thermal Aging	According to GB/T 7141-1999, 70ICx24h, no visible change
Anti UV	According to GB/T18830, UPE>30 T(UVA)AV<5%, qualified
Packing	Bundle or Carton (or at your request), 8pcs=2sqm=1bundle
MOQ	100sqm
Loading Capacity	1x20ft container=700sqm; 1x40ft container=1420sqm; 1x40HC Container=1628sqm
Shipping	About 20 days after receipt the deposit.  FOB Xiamen, appointed shipping-terms and port accept.

Plastic Grass Grid Application:

• Grass driveways and grass shoulder

• Overflow grass car parking lot

• Fire truck access paths/ fire lanes

• Handicap access routes

• Golf buggy/trolley paths

• Emergency vehicle access roads through fields

• Modern factory building

• Noble living communities

• Truck maintenance and equipment yards

• Construction entrance soil stabilization

• Residential driveways

• Roof Garden greening etc.

Feature and Benefits:

• Manufactured from 100% recycled plastics, eco-friendly grass grids
• Flag plug type overlap joint, very convenient, arbitrarily adjust expansion joint width to fit temperature change
• Perfect greening, provides more than 95% grass area
• High compressive strength and durable, the plastic grass grids is permanent and long lasting
• Fast and easy to install, maintenance with low cost
• Permeability drainage performance, high water culvert

• Anti-UV, resistance to acid and alkali corrosion, anti-wear and pressure
• Grass grids has an open cell structure allowing unrestricted healthy grass root growth

• Allows grass grid to grow with easy and binds firmly

Manufactured from 100% recycled HDPE material, Leiyuan plastic grass grids are an interlocking celluar paving grid system for grass and ground reinforcement applications. Because of its chemically inert and non toxic feature, grass grid allow the drainage of stormwater back into the underground soil. Except for greening, the grass grid is also designed as a sustainable solution for areas of both heavy and light traffic. During installed, the grass grids can be filled with grass or gravel surface and allow full rainwater penetration.

Grass grids provides the pavement strength with the natural beauty of grass, at the same time, it eliminates soil compaction, reduces reflective heat and allowing for all weather accessibility at a very cost effective price.

Plastic Grass Grid Construction:

Leiyuan Plastic Grass Grid: High Strength, Long Life Service !
