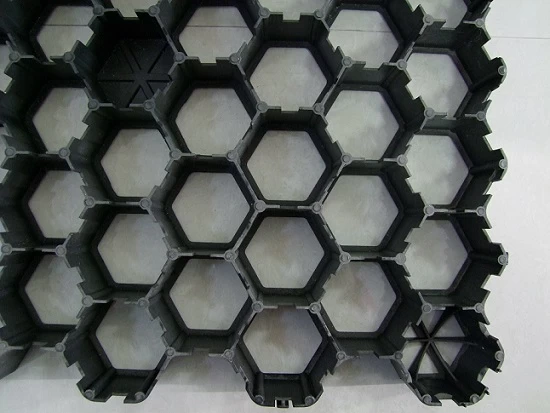

Turf Paver Driveway Gravel Grids Specification:
| Item Code |
MZ-450A3 |
| Material |
HDPE |
| Size(L x W x H) |
465 x 535 x 50mm |
| Color |
Black |
| Grass Grid Details |
 |
| Application |
- Helicopter landing pads;
- Overflow grass car parking lot;
- Fire truck access paths/fire lanes;
- Handicap access routes;
- Erosion control;
- Golf buggy/trolley paths;
- Emergency vehicle access roads through fields;
- Modern factory building;
- Truck maintenance and equipment yards;
- Construction entrance soil stabilization;
- Residential driveways;
- Roof garden greening etc.;
|
| Compressive Strength |
180tons/sqm |
| Working Temperature |
Dimensionally stable for -40℃ to 90℃ |
| Weight |
4.6kg/sqm |
| Afforests Rate |
95%~100% |
| Porosity |
90% |
| Moisture Absorption |
0.1% |
| Environmental Compatibility |
Non toxic, harmless to plants, animals, and microorganisms, inert material, groundwater neutral |
| Anti HCL |
According to GB4218-1984, 30%x24h, no visible change |
| Anti NaOH |
According to GB4218-1984, 40%x24h, no visible change |
| Thermal Aging |
According to GB/T 7141-1999, 70ICx24h, no visible change |
| Anti UV |
According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified |
| Packing |
Bundle or Carton (or at your request), 8pcs=2sqm=1bundle |
| MOQ |
100sqm |
| Shipping |
About 20 days after receipt the deposit.
FOB Xiamen, appointed shipping-terms and port accept.
|
| Installation Guide |
|
Features and Benefits
1. Manufactured from 100% recycled plastics, eco-friendly grass grids;
2. Flat plug type overlap joint, very convenient, arbitrarily adjust expansion joint width to fit temperature change
3. Perfect greening, provides more than 95% grass area;
4. Hight compressive strength and durable,the plastic grass grids is permanent and long lasting;
5. Fast and easy to install, maintenance with low cost;
6. Permeability drainage performance, high water culvert;
7. Anti-UV, resistance to acid and alkaki corrosion, anti-wear and pressure, anti-temperature -40℃ to 90℃;
8. Grass grids has an open cell structure allowing unrestricted healthy grass root growth;
9. The grass grids allow grass to grow with easy and binds firmly;
10. Unique interlocking plastic grass paving grids are chemically inert, non-toxic and rot free.
Manufactured from 100% recycled HDPE material, Leiyuan Driveway Gravel Grids are an interlocking celluar paving grid system for grass and ground reinforcement applications. Because of its chemically inert and non toxic feature, grass grid allow the drainage of stormwater back into the underground soil. Except for greening, the grass grid is also designed as a sustainable solution for areas of both heavy and light traffic. During installed, the grass grids can be filled with grass or gravel surface and allow full rainwater penetration.
Gravel grids provides the pavement strength with the natural beauty of grass, at the same time, it eliminates soil compaction, reduces reflective heat and allowing for all weather accessibility at a very cost effective price.
Plastic Grass Grids Construction:
Leiyuan Plastic Grass Grid: High Strength, Long Life Service !
