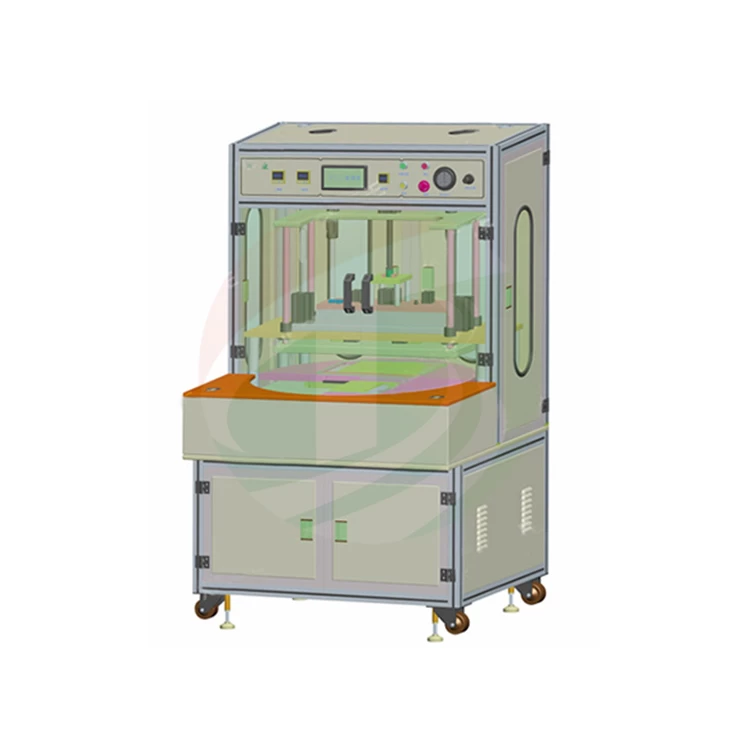

Turntable secondary sealing machine
SPECIFICATIONS
The performance characteristics:
1. The ultimate vacuum sealing equipment for lithium battery after formation;
2. Double-turntable turns rolling work, high production efficiency;
3. Turntable cam splitter drive,segmentation accuracy within 30sec;
4. The upper head and bayonet when machine adjusted can separate from the vacuum chamber,convenient transfer machine and maintenance;
5. The heads with high-strength insulation board insulation protection,to minimize thermal deformation on head parallelism;
6. The head pressure is adjustable;
7. Configure with the electrolyte separator processing mechanism and pollution prevention;
8. Imported PLC, touch screen control display;
9. Imported thermostat components.
The main technical parameters：
|
Power
|
Single phase 220V (± 10%) / 50HZ
|
|
Adaptation Specifications
|
Length ≤350mm, width ≤350mm (including air bags)
|
|
The head length
|
Length ≤350mm
|
|
Head temperature
|
230 ℃, can be set up to compensate, control accuracy ± 2 ℃
|
|
Cavity vacuum degree
|
-98Kpa
|
|
Package time
|
0 ~ 99.9s adjustable
|
|
Equipment production capacity
|
100 ~ 500EA / H (depending on the workers operating proficiency,
small batteries which can encapsulate multiple)
|
PRODUCT DISPLAY
