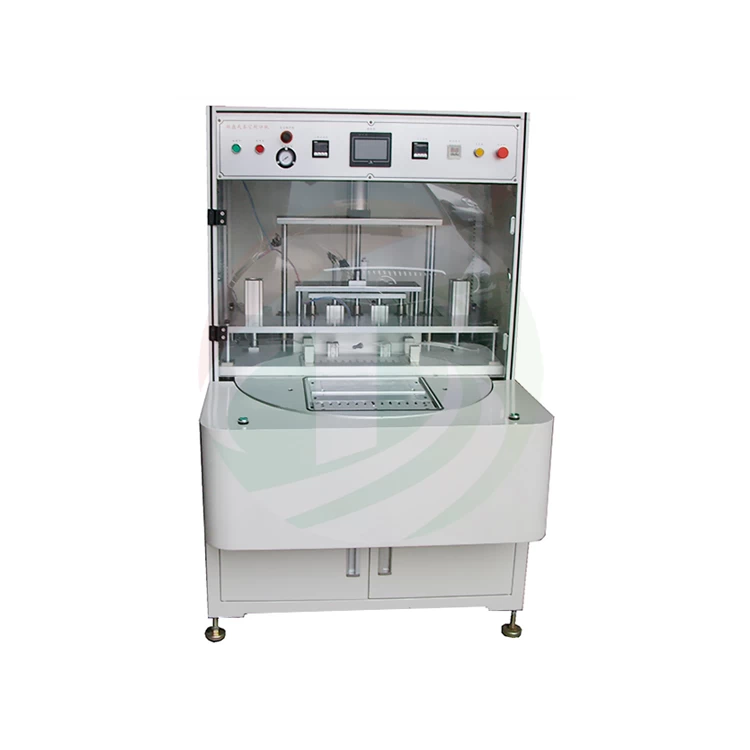

350mm Turntable Type Vacuum Seal Machine For Preparing Lithium Pouch Cell Final Vacuum Sealing
SPECIFICATIONS
1. This Turntable type vacuum sealer machine is used for middle size pouch cell final vacuum sealing after the lithium battery formation.
2. The feed turntable is divided into sealing and loading-unloading positions, firstly put the pouch cell on loading-unloading position, start double point button, the turntable go into sealing position, up and down chamber close, form a sealing cavity, finish vacuum, puncture and hot press sealing, start again, sealed pouch cell is send out by the turntable.
3. The double working position rotary cam drive.
4. The turntable, cavity with corrosion resistant material .
5. Can preset temperature, extraction time and sealing time.
6. Upper and lower head independent temperature control, with low and high temperature alarm function.
7. Digital vacuum degree display, clear and easy to adjust the settings.
9. Adopt programmable controller PLC to realize automatic control, touch screen man-machine conversation, convenient operation and setting.
|
Model
|
TOB-JD-EF-350
|
|
Type
|
Turntable type
|
|
Source voltage
|
AC 220V, 50HZ, Customized as request
|
|
Power
|
1800W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Air compression
|
0.6-0.7MPa
|
|
Vacuum degree
|
≤-0.095MPa
|
|
Size (L*W*H)
|
900*1000*1600mm
|
|
Weight
|
About 700kg
|
|
Suitable battery size with air bag
|
350*250*15mm
|
|
Sealing head length
|
≤350mm
|
|
Sealing stamp width
|
6mm (customized)
|
|
Sealing thickness
|
0.1-0.35mm
|
|
Sealing temperature
|
RT-250℃ adjustable, Accuracy ±2°
|
|
Sealing time
|
1-99s, adjustable
|
|
Vacuum sealing time
|
1-99s,adjustable
|
|
Depth of parallelism
for sealing head
|
±0.01mm
|
Product display

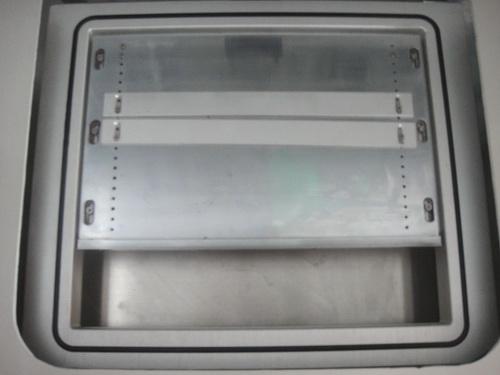

Sealing box for vacuum seal machine

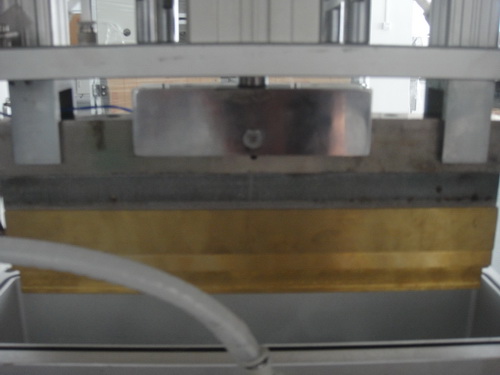

Copper sealing head for vacuum seal machine
