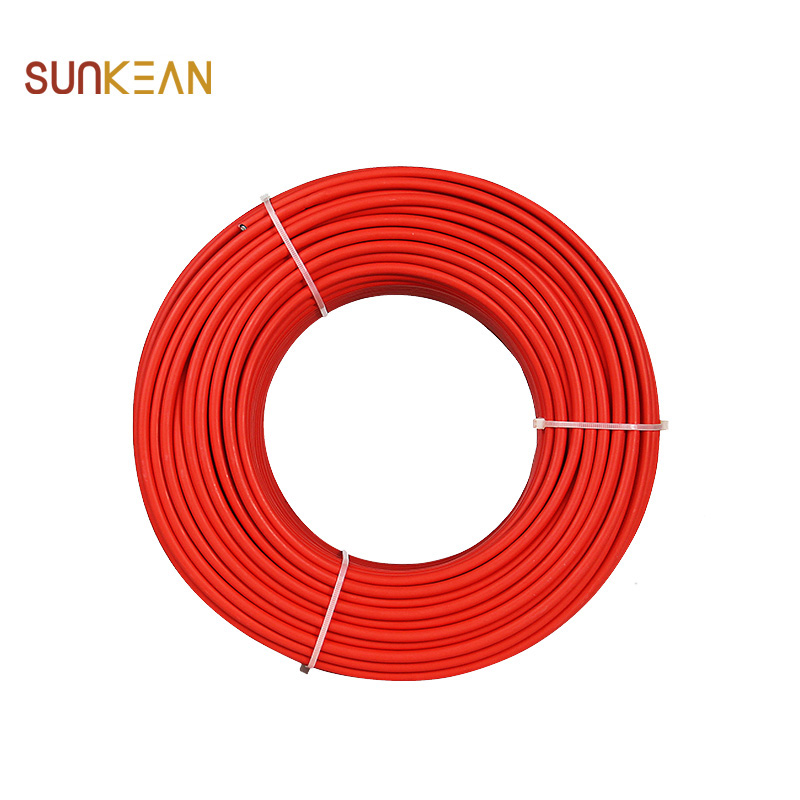

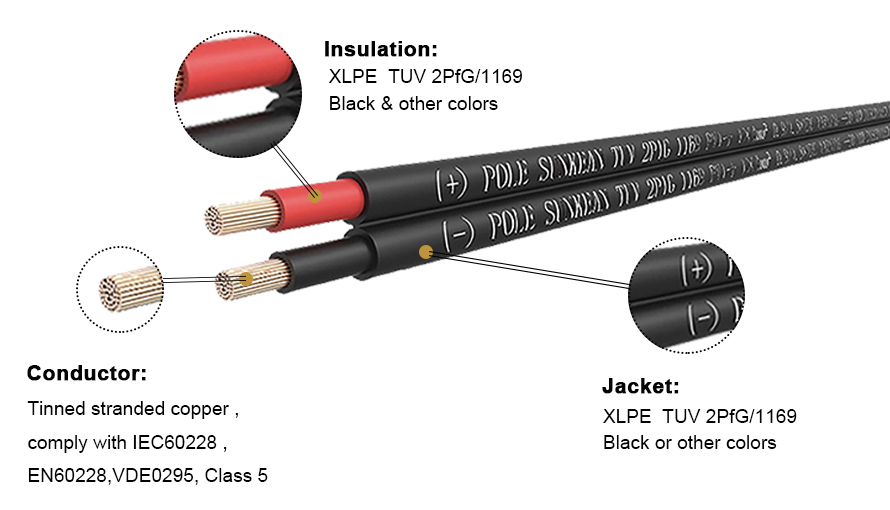

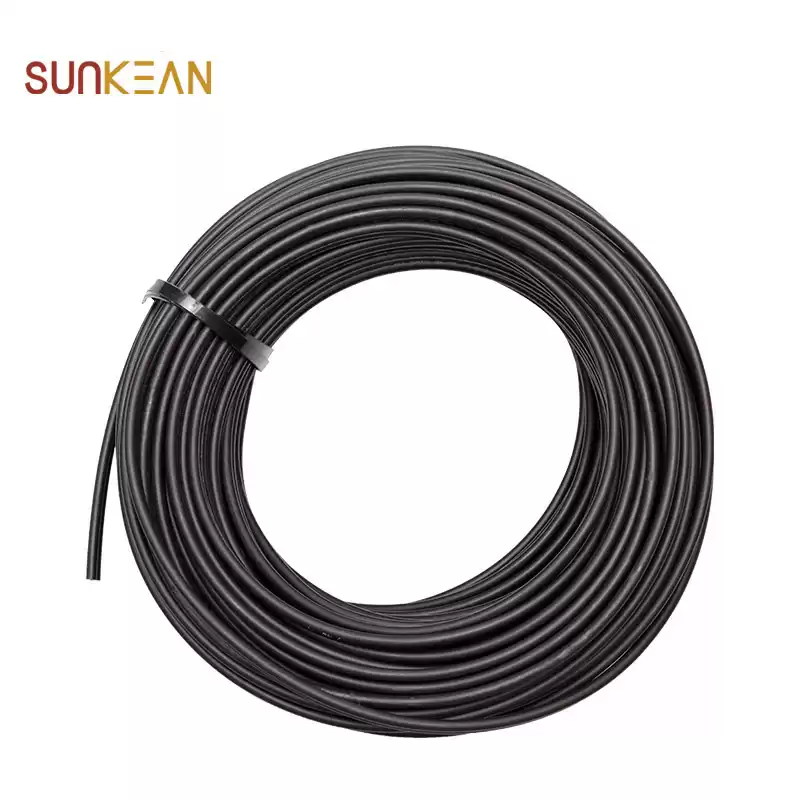

TUV 2PfG/1169 PV1-F Twin Core Solar Cable
In a solar power system of rated voltage U0=0.6KV,PV cables are used to connect between solar panels and inverters.
Twin Core Solar Cable are widely used for electrical installation of indoor and outdoor solar installation equipment.
Product description:
|
Voltage Rating (Uo/U)
|
AC:600/1000V
DC: 1000V
|
Test Voltage
|
6500V AC
|
|
Temperature Rating
|
Rated: -40°C to +90°C
Max.conductor temp: +120°C
Short Circuit: +250°C
|
Minimum Bending Radius
|
Ø≤12mm 4 x overall diameter
Ø>12mm 10 x overall diameter
|
|
Testing Standard
|
Flame Test : IEC60332-1-2 ,EN60332-1-2
Halogen Free : EN50627-2-1 , EN60684-2
|
|
|
Cable Name
|
Cross Section
(mm²）
|
Construction
(No./mm)
|
Conductor
Stranded O.D.
(mm)
|
Conductor resistance
Max (Ώ/km)
|
Cable O.D.
(mm)
|
Max.DC Voltage
(V)
|
|
PV1-F Twin core
TÜV 2PfG/1169
|
2*1.5
|
30/0.24
|
1.51
|
13.7
|
4*0.82
|
1000
|
|
2*2.5
|
49/0.24
|
1.93
|
8.21
|
4.4*9.0
|
|
2*4.0
|
52/0.3
|
2.46
|
5.09
|
4.6*9.4
|
|
2*6.0
|
78/0.3
|
3.06
|
3.39
|
5.3*10.9
|
|
2*10
|
77/0.4
|
4.05
|
1.95
|
7.1*14.5
|
|
2*16
|
126/0.4
|
5.6
|
1.24
|
10.2*20.7
|
|
2*25
|
196/0.4
|
7
|
0.795
|
12.2*24.7
|
|
2*35
|
276/0.4
|
8.3
|
0.565
|
13.8*27.9
|
Advantages:
(1)Electron-beam cross-linked compounds;
(2)UV, ozone and hydrolysis resistant;
(3)High temperature resistant, the materials do not melt or flow;
(4)Good cold flexibility;
(5)Very long service life > 25 years at 90°C;
(6)Compatible to all popular connectors.

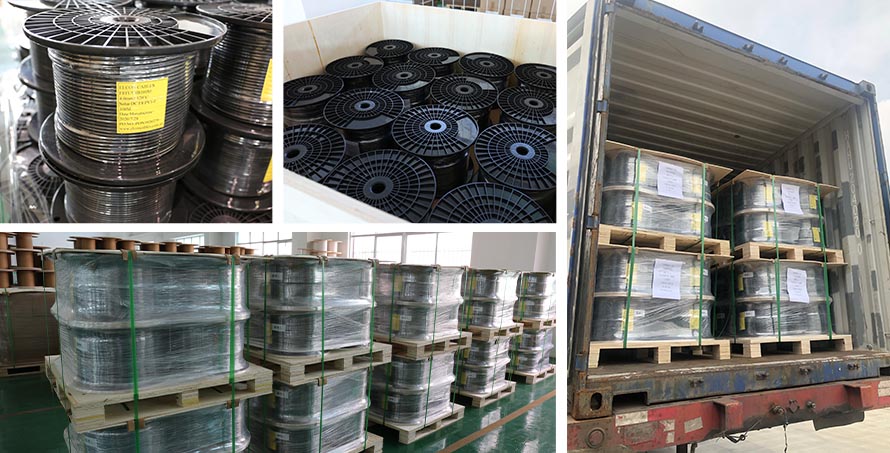

Packing & Delivery:

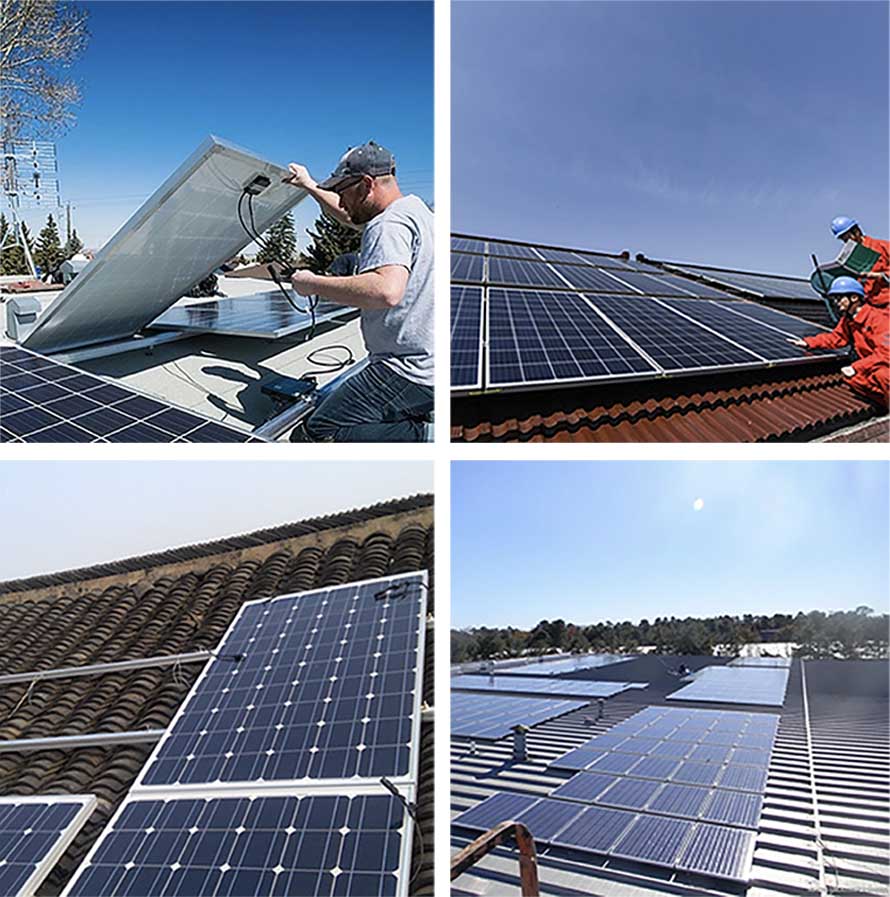

Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, solar cables, solar extension cables , PV connectors, fence, inverters etc solar products .
SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
