TUV&UL approved Single Core Panel Cable DC AWG14 Solar Cable 6mm2
*Electron beam cross-linked.
*Resistance to UV, water, ozone, fluids, salt, general weathering.
*Halogen free, flame, retardant, low toxicity.
*Flexibility and stripping performance.
*TUV and CE approved.
*High voltage and current carrying capacity.
*Resistance to abrasion.

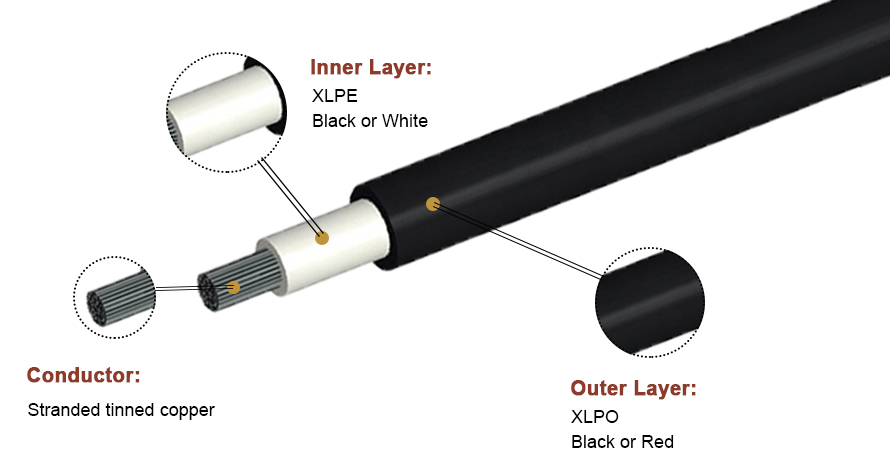

Product description:
Voltage Rating(Uo/U)
|
DC: 1500V
|
|
Test Voltage
|
6500V DC
|
Temperature Rating
|
Rated: -40°C to +90°C
|
Testing Standard
|
Smoke Density Test : transmittance≥60% EN50618
Cold Bending Test : -40°C±2°C no crack EN60811-504
Flame Test:VW-1
|
Cable Name
|
Cross Section
(mm²/AWG）
|
Construction
(No./mm)
|
Inner Layer O.D.
(mm)
|
Cable O.D.
(mm)
|
Conductor resistance
Max (Ώ/km)
|
|
H1Z2Z2-K/PV
|
2.5/14
|
49/0.25
|
4.35
|
6.00
|
8.21
|
|
4/12
|
56/0.285
|
4.80
|
6.50
|
5.09
|
|
6/10
|
84/0.285
|
5.40
|
7.10
|
3.39
|
Packing & Delivery:
Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover panel solar system, solar cables, solar extension cables , home energy solar systems, Solar power fence, three phase inverters etc solar products .
SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
