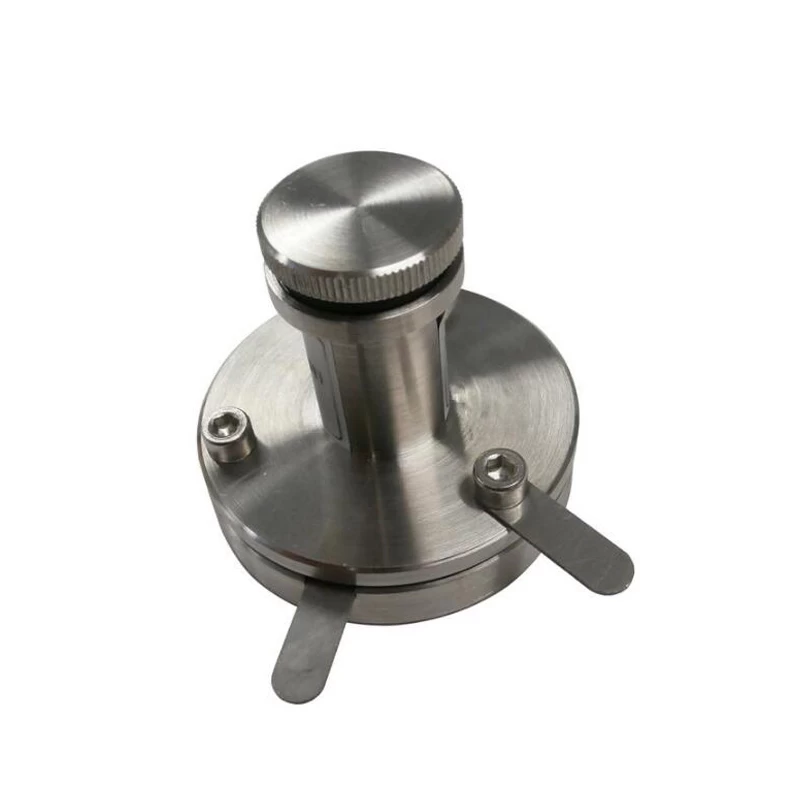

Two Electrode Split Test Cell for Lab Coin Cell Battery Research
AOT-STC-2split-able test cell is designed for R&D of rechargeable battery material. It can accept various sizes of (19, 20, and 24mm diameter) electrodes and separators and test the electrodes easily and quickly.
SPECIFICATIONS
|
Structure
|
Full stainless steel
|
|
Max. Cell Thickness
|
6mm (cathode+separator+anode)
|
|
Features
|
1.A 6mm height spacer inside the test cell to press down on the electrode and prevent the electrode from curling
2.Sealed by electrolyte corrosive-proof PTFE O-rings
3.Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 200 ºC
4.Easy to separate after testing
5.Small enough to be put in and taken out from a glove box
6.Same functionality to "Swagelok Coin Cell" but with more size options for electrode and separator and also the proper dimensions for glove box compatibility
|
|
Max. Working
Temperature
|
200 ºC ( continuous )
280ºC ( for < 1 minute )
|
|
Optional
|
Please select the insert size in the Product Options. 19, 20, and 24 mm diameter inserts are available.
|
