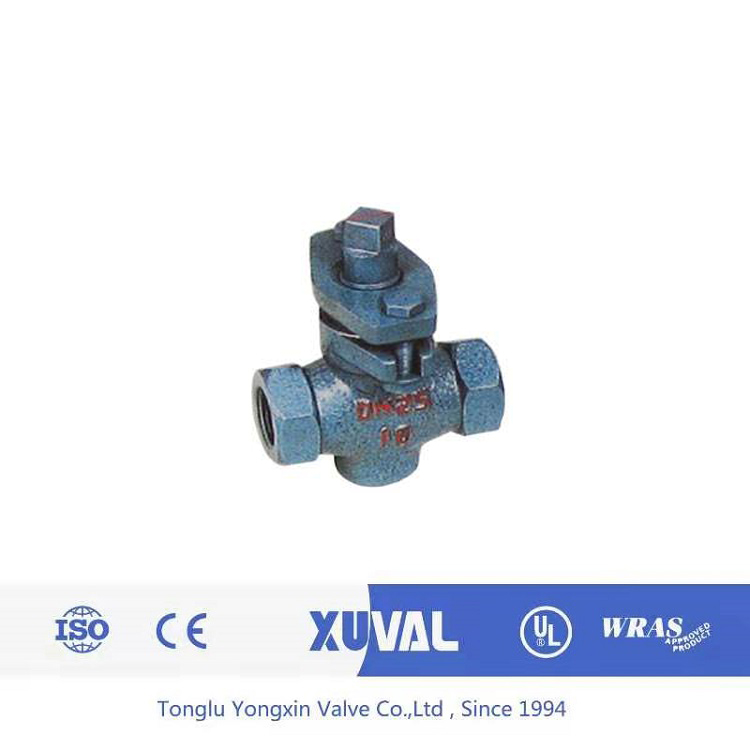

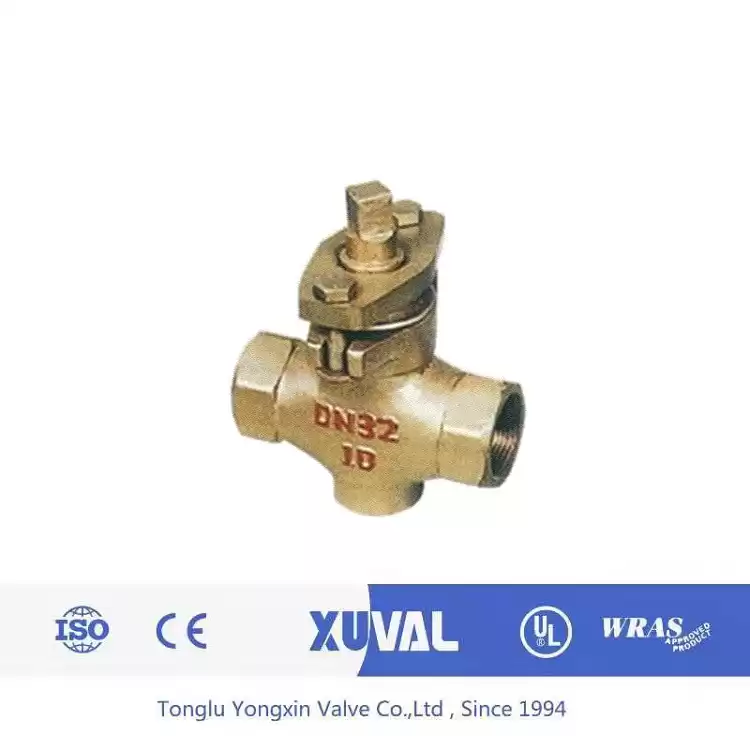

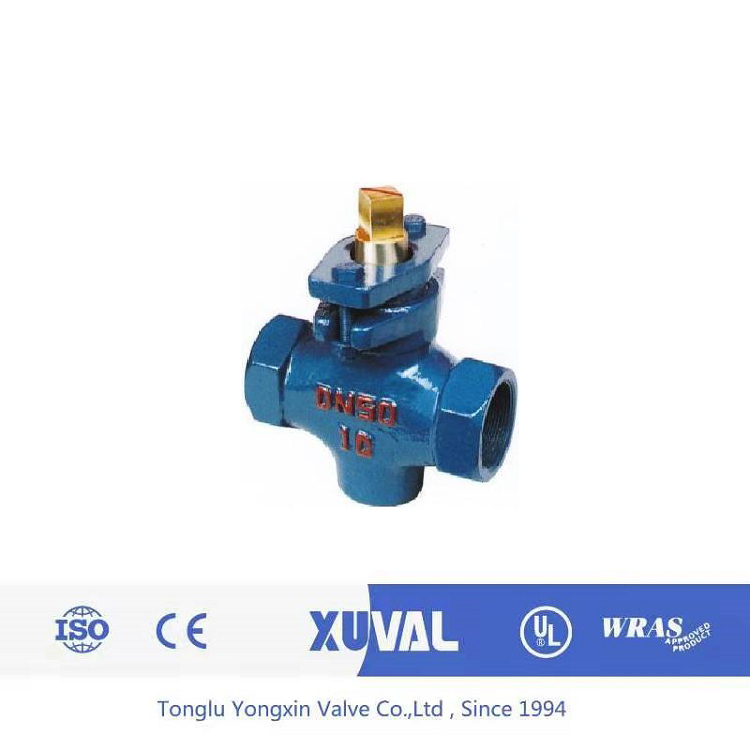

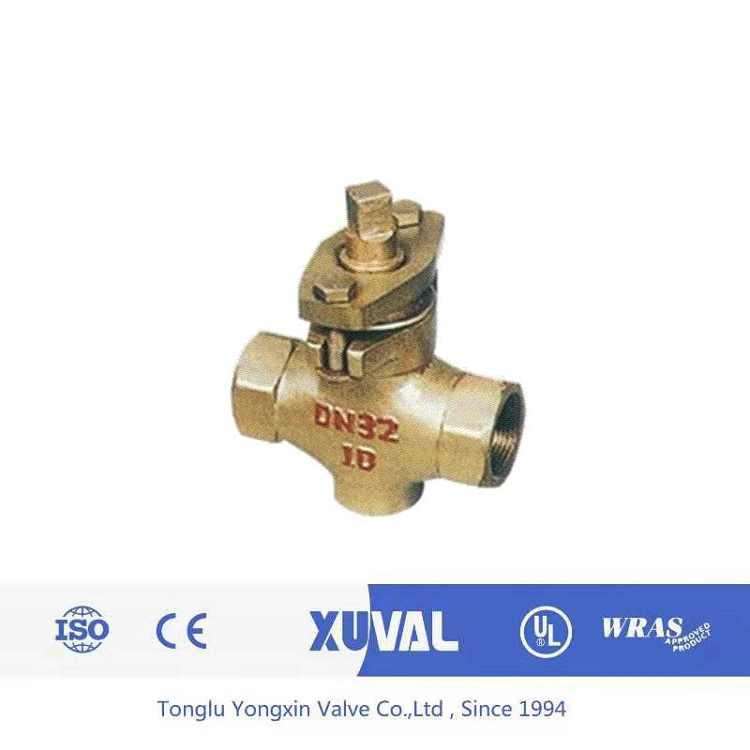

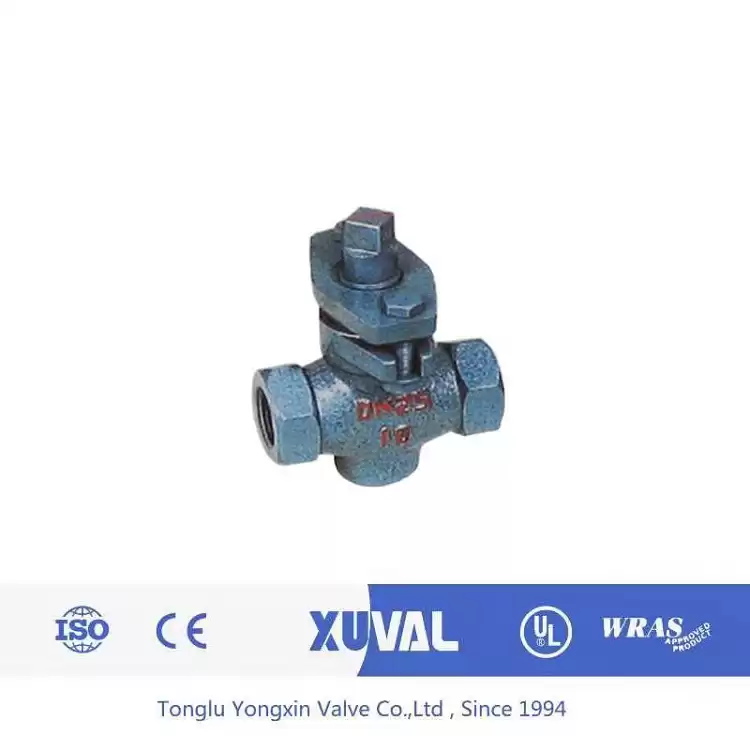

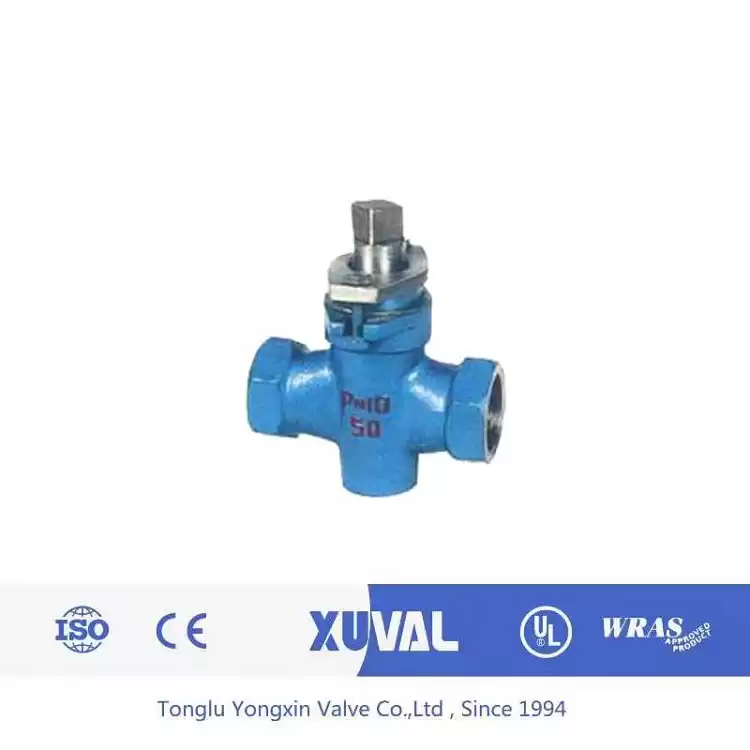

Two - way internal thread plug valve:
Main performance specification:
Model
|
Nominal pressure
PN(Mpa)
|
Test pressure(Mpa)
|
Applicable medium
|
Working temperature
(℃)
|
|
Shell
|
Seal
|
|
X13W-1.0
|
1.0
|
1.5
|
1.1
|
Gas,Oil
|
≤100
|
|
X13T-1.0
|
1.0
|
1.5
|
1.1
|
Water,Steam,Oil
|
|
X13W-1.0T
|
1.0
|
1.5
|
1.1
|
Water,Steam,Oil
|
|
X13W-1.0P/R
|
1.0
|
1.5
|
1.1
|
Nitric acid,Axetic acid
|
≤250
|
Main dimensions:
|
Nominal diameter
DN(mm)
|
Pipe thread
G
|
Size(mm)
|
|
L
|
□S
|
□S1
|
h1
|
H
|
|
15
|
1/2
|
85
|
30
|
12
|
26
|
99
|
|
20
|
3/4
|
90
|
36
|
16
|
34
|
124
|
|
25
|
1
|
110
|
46
|
18
|
38
|
133
|
|
32
|
1 1/4
|
130
|
55
|
18
|
45
|
152
|
|
40
|
1 1/2
|
150
|
60
|
26
|
55
|
212
|
|
50
|
2
|
170
|
75
|
28
|
74
|
260
|
|
65
|
2 1/2
|
220
|
90
|
32
|
82
|
295
|
|
80
|
3
|
250
|
105
|
36
|
125
|
327
|
|
100
|
4
|
300
|
140
|
46
|
135
|
425
|
Main parts and materials:
|
Part name
|
Body
|
Plug
|
Packing gland
|
Packing
|
|
X13W-1.0
|
Cast iron
|
Cast iron
|
Cast iron
|
Oil-soaked asbestos packing
Flexible asbestos
|
|
X13T-1.0
|
Cast iron
|
Cast iron
|
Cast iron
|
|
X13W-1.0T
|
Cast copper
|
Cast copper
|
Cast copper
|
|
X13W-1.0P
|
Stainless steel
|
Stainless steel
|
Stainless steel
|
|
X13W-1.0R
|
1Cr118Ni12Mo2Ti
|
1Cr118Ni12Mo2Ti
|
1Cr118Ni12Mo2Ti
|
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.
