U-1000 R2V XLPE Insulated YJV Power Cable
PRODUCTS NAME
U-1000 R2V XLPE Insulated YJV Power Cable.
PRODUCTS KEYWORDS
YJV, R2V, R02V, U-1000, power cable, copper wire, XLPE insulated cable, electric cable, electrical wire and cables.
PRODUCTS APPLICATION
U-1000 R2V XLPE Insulated YJV Power Cable, these power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.
PRODUCTS STRUCTURE

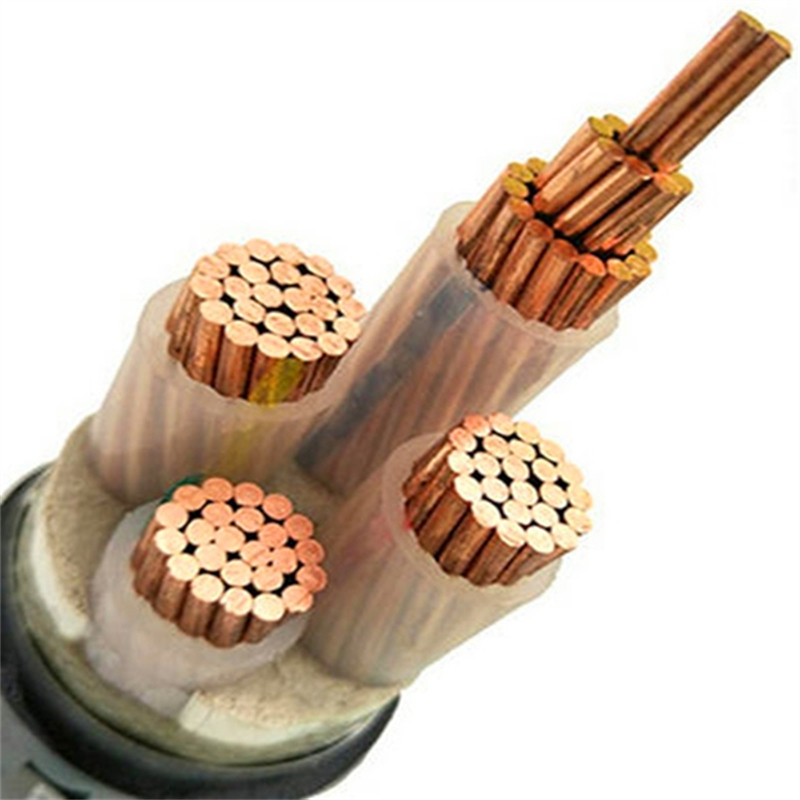

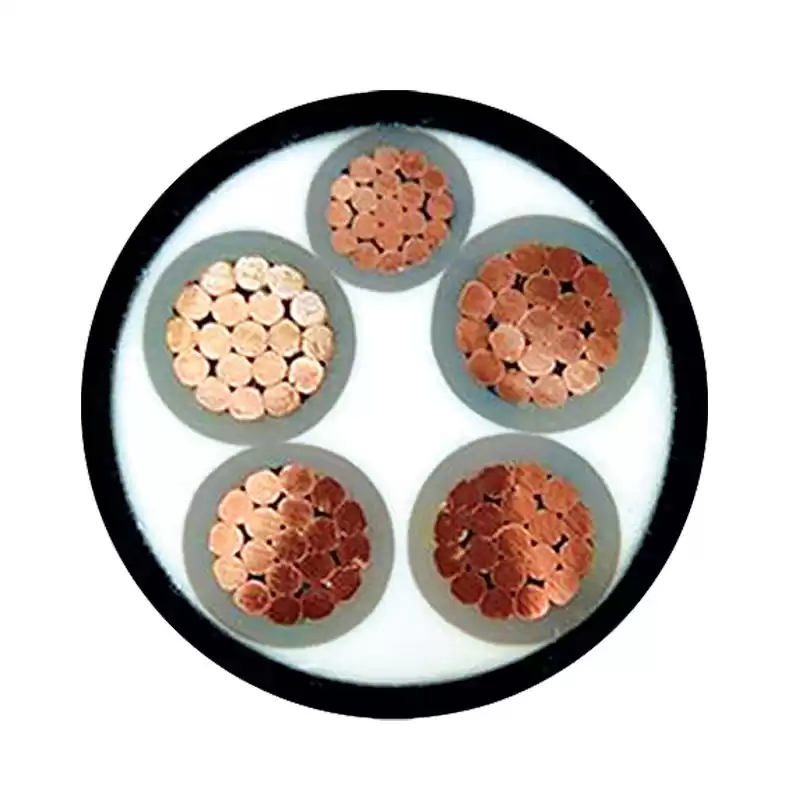

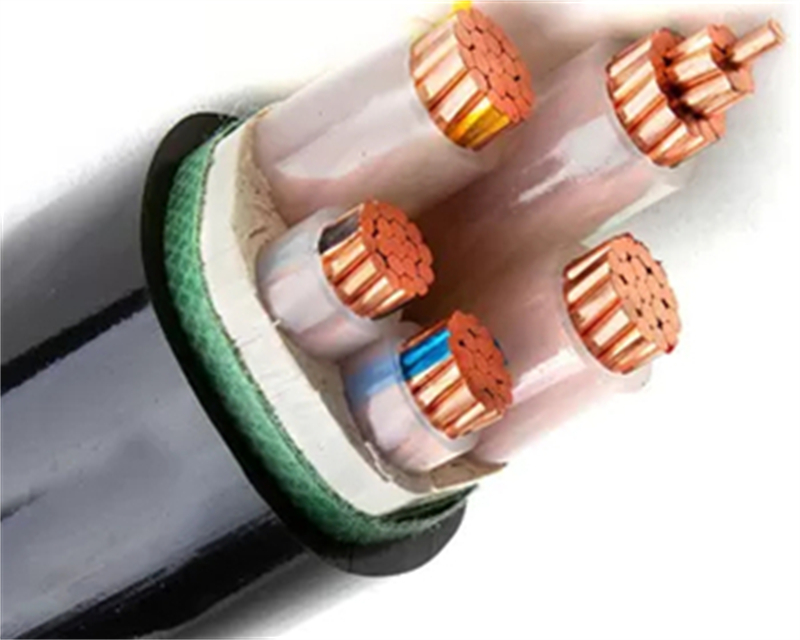

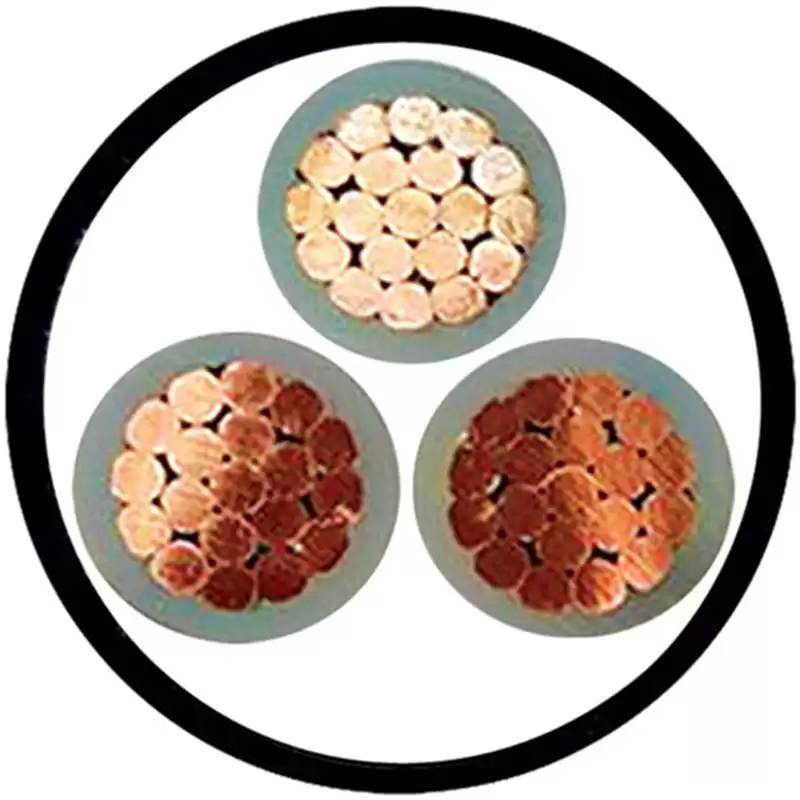

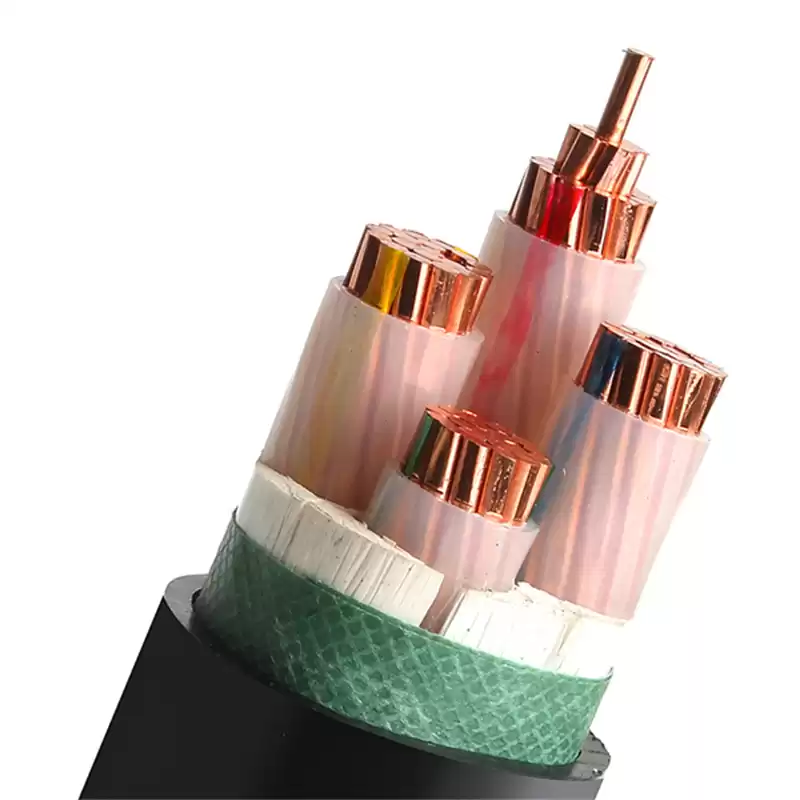

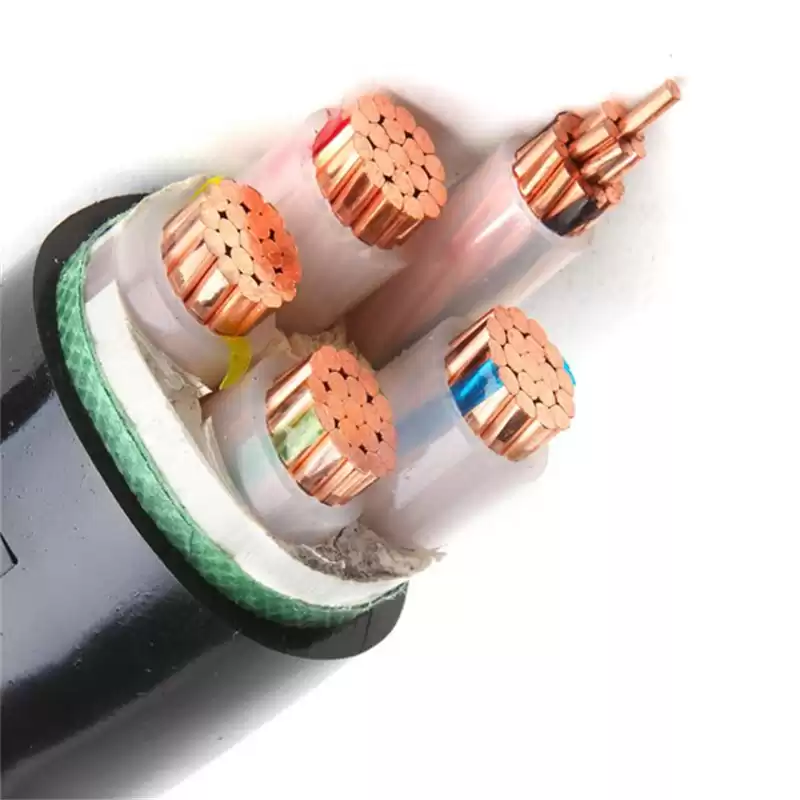

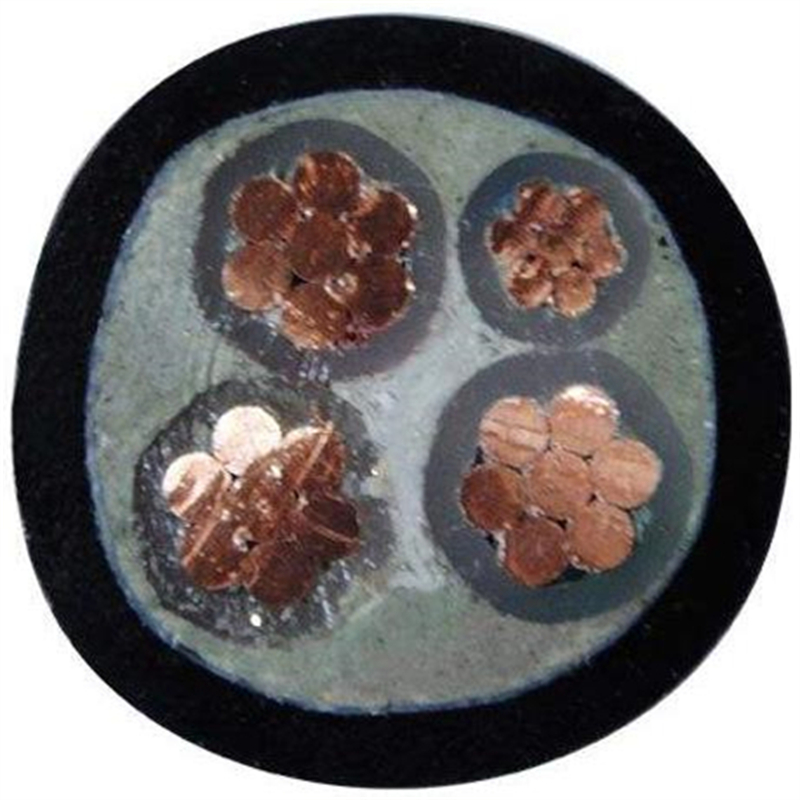

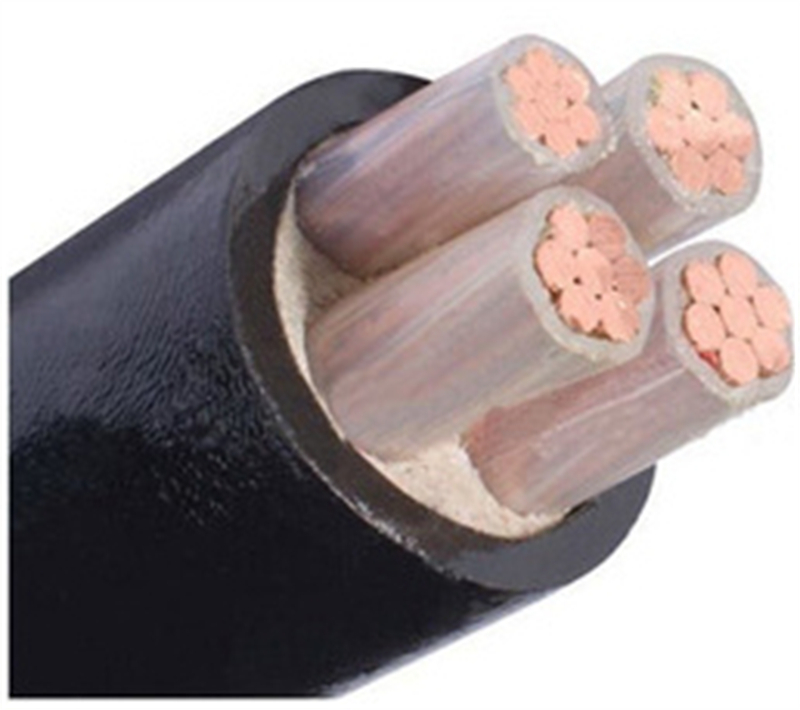

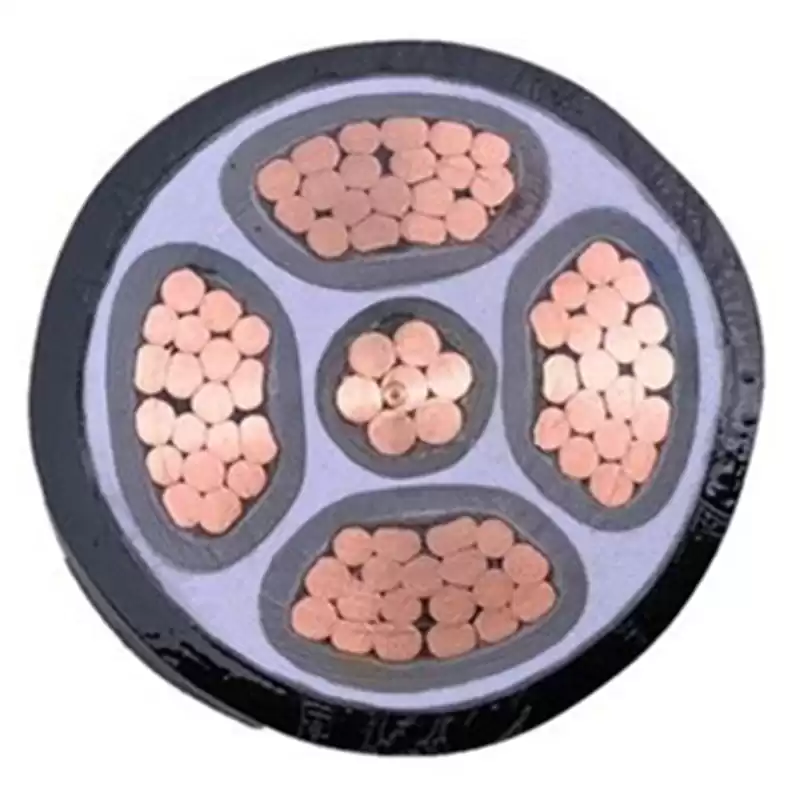

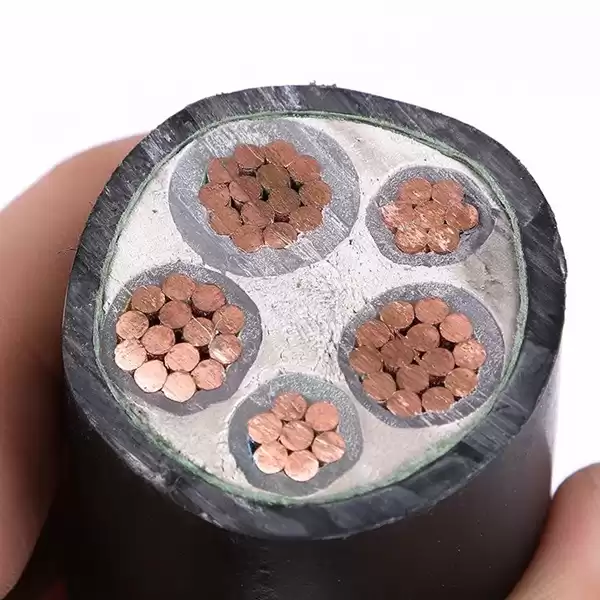

U-1000 R2V XLPE Insulated YJV Power Cable, the structure as below:
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
---Insulation Material
XLPE (cross-linked polyethylene).
---Sheath Material
PVC (polyvinyl chloride).
a
PRODUCTS DIMENTIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
U-1000 R2V XLPE Insulated YJV Power Cable.
|
|
Conductor Material
|
Plain annealed copper wires, stranded Class 2.
|
|
Conductor Structure
|
3C x 7/2.14 mm.
|
|
Insulation Material
|
XLPE (cross-linked polyethylene).
|
|
Insulation Thickness
|
0.9 mm.
|
|
Insulation Colour
|
Brown, blue, yellow/green; or others.
|
|
Sheath Material
|
PVC (Polyvinyl Chloride).
|
|
Sheath Thickness
|
1.8 mm.
|
|
Sheath Colour
|
Black, red, orange, or others.
|
|
Conductor Cross-section
|
3 x 25 mm2.
|
|
Core Number
|
Three cores, 3 cores, 3C.
|
|
Out Diameter
|
23.5 mm.
|
|
Voltage Rate
|
600/1000V, 0.6/1kV (U0/U).
|
|
About Net Weight
|
1080 kg/km.
|
|
Production Standard
|
GB/T 12706-2020, IEC 60502.
|
|
Max. Conductor DC
Resistance at 20℃ in Air
|
0.727 Ω/km.
|
|
Max. Ampacity
at 25℃ in undergroun
|
144A.
|
