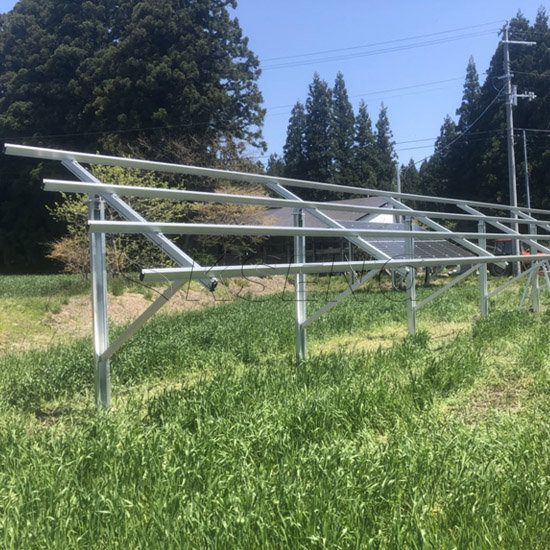

U or C Type Pile Foundation Solar Ground Mounting System
Benefits of the C or U type pile ground mounting system:

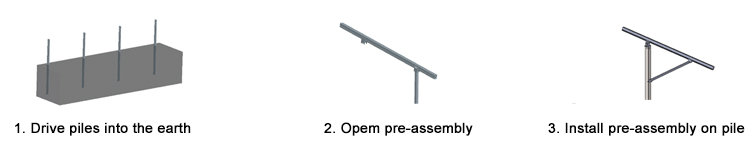

1.U or C type piles are installed using a piledriver that pushes them directly into the earth.
2.The U or C type piles can be mounted in clay and black soils, and work best when the site is rock-free, the soil’s friction keeps the piles in place.
3.Lightweight, easy transportation and installation.
4.High corrosion resistance, salt tolerance.
5.The piles and solar brackets are the maximum pre-assembly that can save construction time and larbor cost.
6.U or C type piles have stronger load bearing .
Material:
|
AL 6005-T5 High Strength Aluminum Alloy, Q235B Carbon Steel
|
|
Foundation:
|

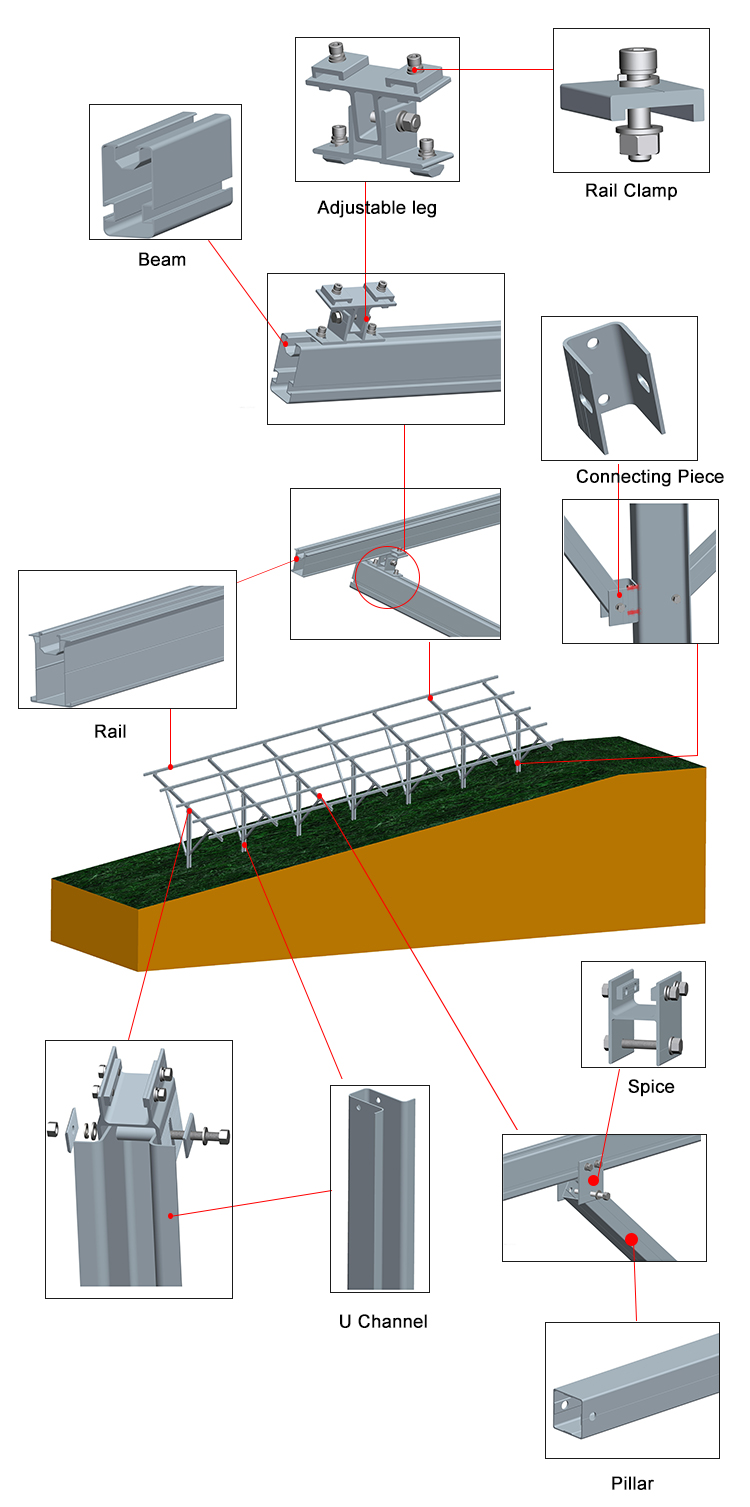

U Type Pile & C Type Pile
|
|
Standard:
|
JISC 8955-2017 Design Guide on Structures for Photovoltaic Array
|
|
Certification:
|
ISO9001/CE /SGS/TUV etc
|
|
Surface Treatment:
|
Anodized
|
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
Snow Load:
|
1.4KN/M2
|
|
Max Wind Speed:
|
60M/S
|
|
Applicable Module:
|
Framed or Frameless
|
