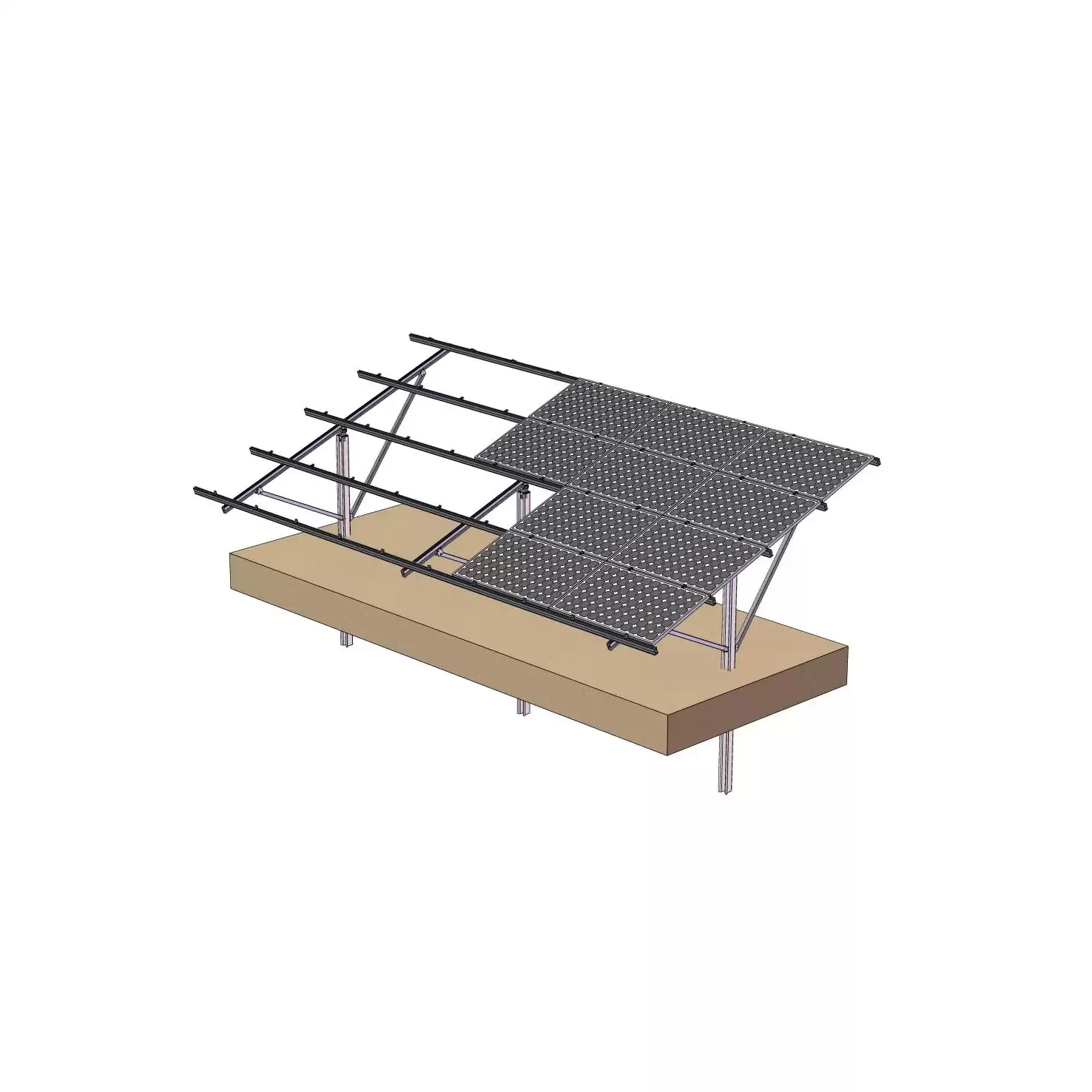

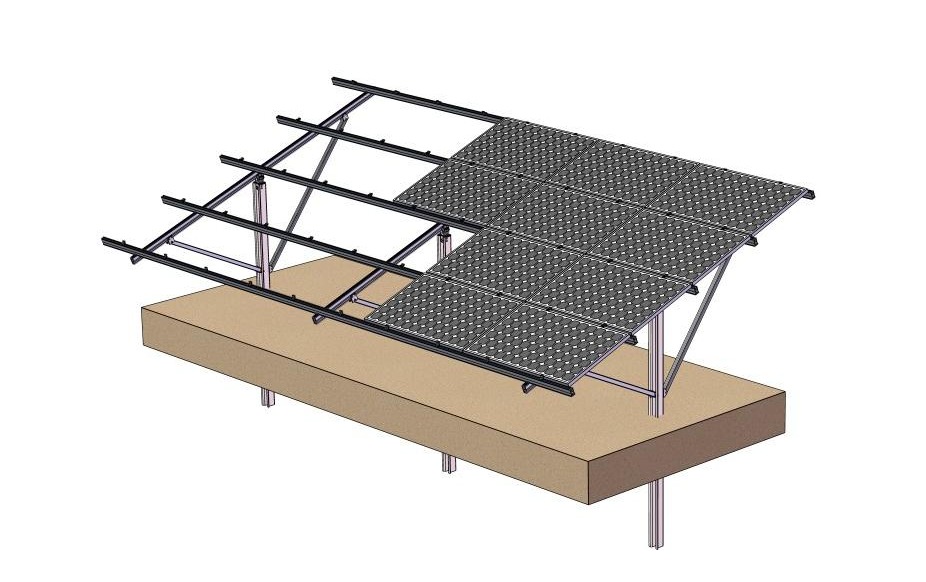

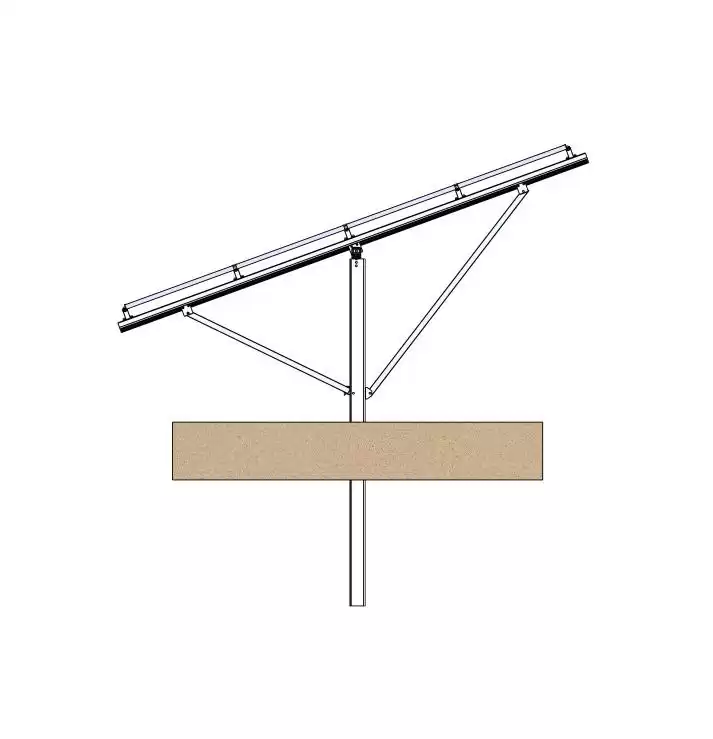

The U pile ground solar mounting system is an economical and easy-to-install option for residential and commercial solar projects. It also can be used on flat roofs or sloped roofs, depending on the specific requirements of the project. The system is flexible in terms of tilt angle, making it ideal for areas with different terrain or where the tilt angle of the panels needs to be adjusted. We can provide an economic and effective solution based on the project's wind and snow load and requirements.
Technical features:
| Product name |
U pile ground mounting system |
| Application |
Open terrain |
Inclination
|
Customized
|
| Material |
AL6005-T5, SUS304, Q235 |
| Finish |
AL 6005-T5 Anodized, Q235 Hot-dip galvanizing |
| Module orientation |
Landscape or Portrait |
The U type pile ground mounting system has been folded into a rectangular shape before shipment. Easy to transport.

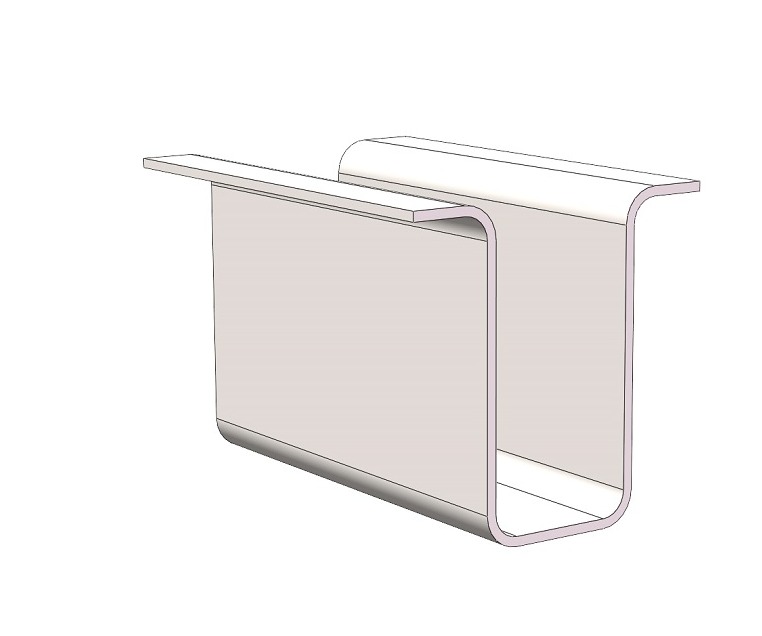

Ground mounting U pile (POW-GUP)

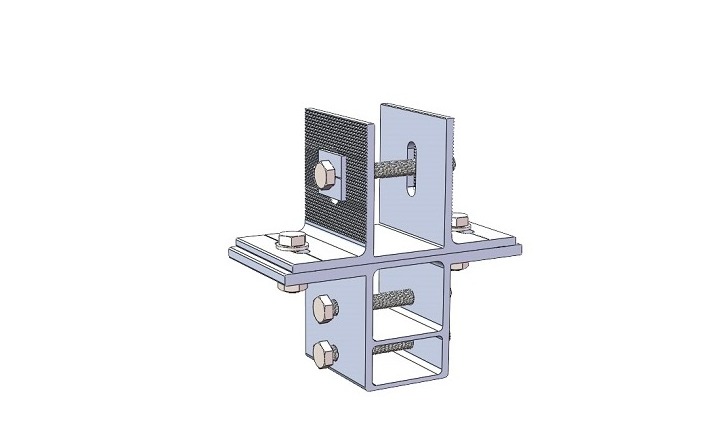

Ground mounting holder (POW-GUH)
Ground mounting 60mm H support (ERK-CH2-01)

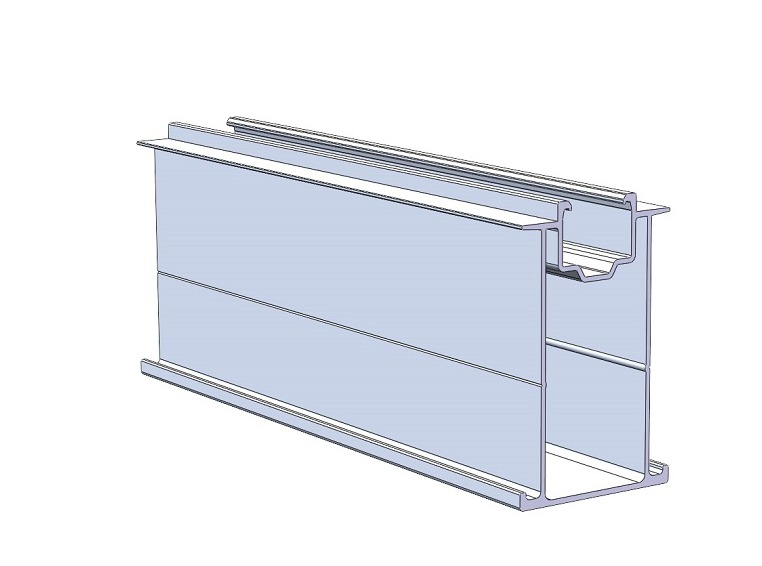

Ground mounting 80mm rail (POW-R80)

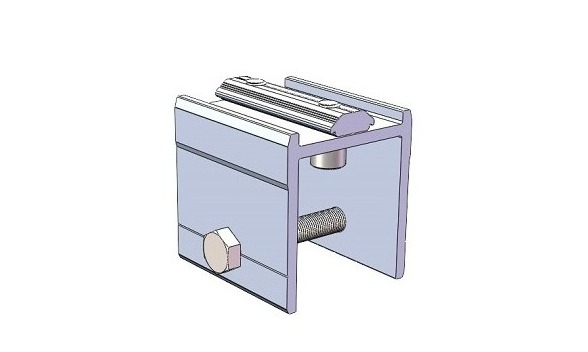

Rail clamp (POW-GRC)

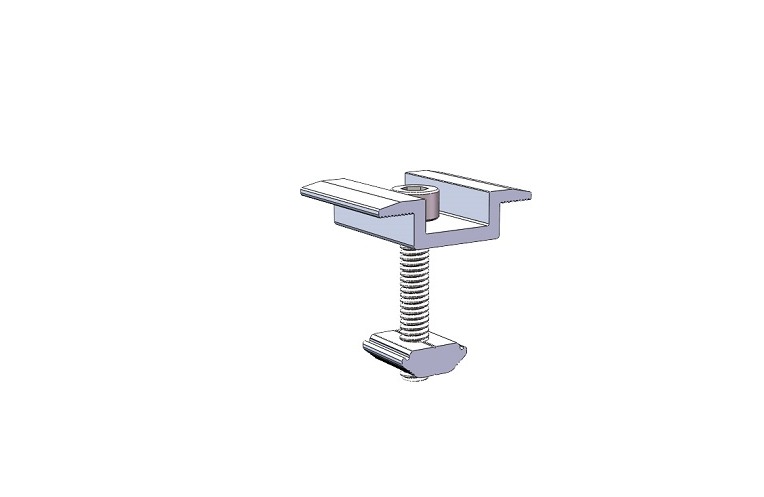

Mid clamp (POW-GIC)

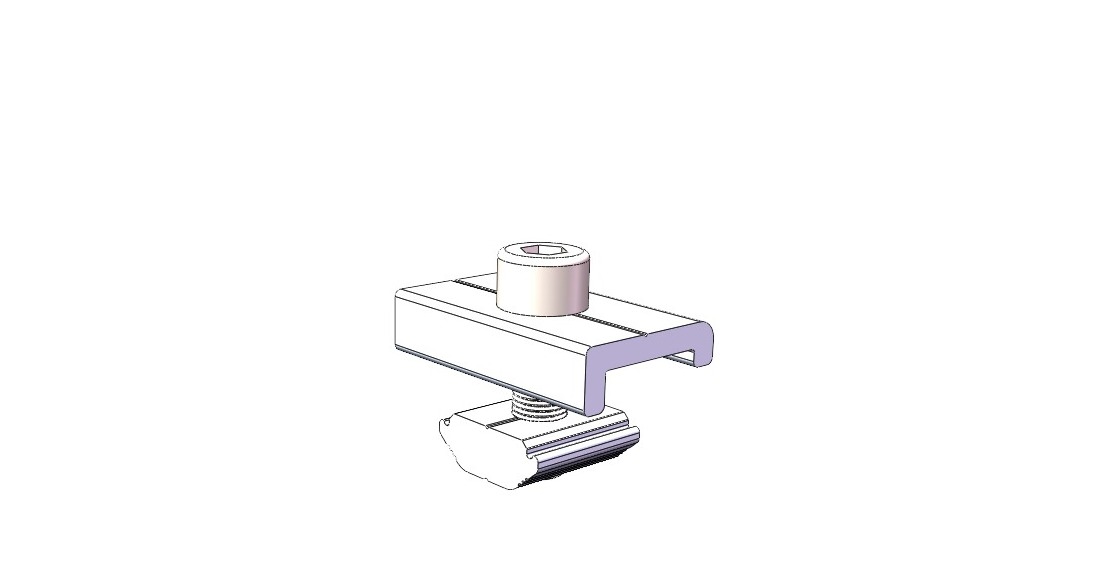

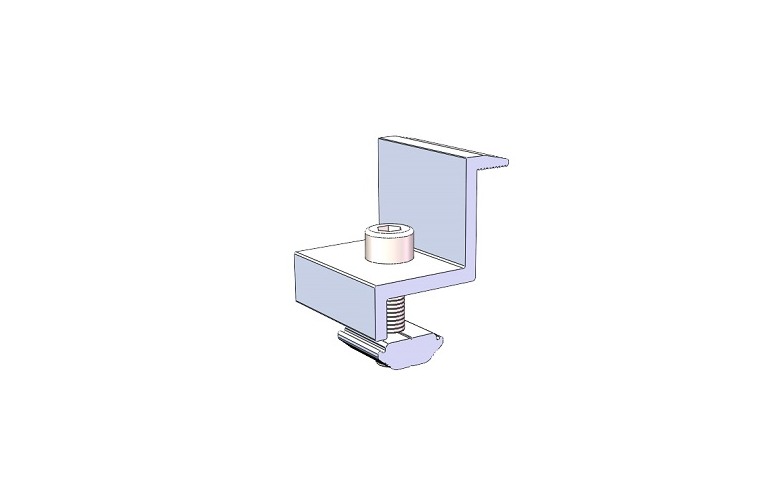

End clamp (POW-GEC)
