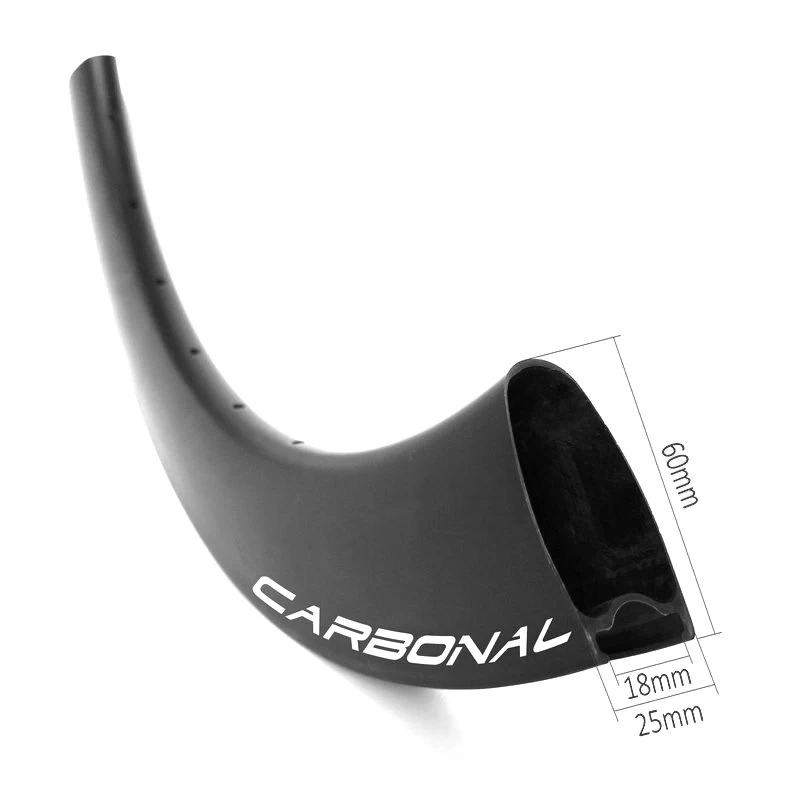

Product Item: U shape 60mm deep 25mm wide clincher tubeless carbon disc rim
U aerodynamic shape makes this carbon 60mm deep 25mm wide road disc clincher tubeless rims lightweight but still stiff, durable enough for training, road racing, triathlon.
Specification:
Item:
|
DX60S
|
Use:
|
road, tt, triathlon
|
Rim type:
|
700C clincher - disc brake
|
Material:
|
Toray T700 & T800 carbon fiber
|
Tubeless ready:
|
Yes
|
Weight:
|
500g±20
|

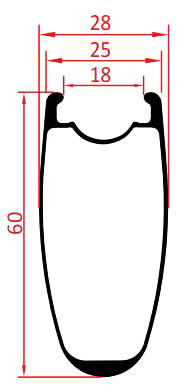

External/Internal width:
|
25mm / 18mm
|
ERD:
|
525mm
|
Depth:
|
60mm
|
Weight limit:
|
130kgs
|
Weave:
|
UD, 3k, 3k twill, 6k, marble
|
Finish:
|
Matte, glossy
|
Spoke hole count:
|
16 - 36
|
Assemble hole diameter:
|
8.5mm
|
Spoke hole diameter:
|
4.5mm / 2.5mm or customized
|
Valve hole diameter:
|
6.5mm
|
Max spoke tension:
|
140kgf (recommended 110~130kgf)
|
Max tire pressure:
|
125psi / 8.6bar
|
Decal:
|
None or Customized
|
Min tire pressure:
|
80psi / 5.5bar
|
TG resin temperature:
|
130°C
|
Standard:
|
EN standard
|
Features:
-
U aerodynamic shape makes this 60mm deep 25mm wide road tubeless clincher rims lightweight but still stiff, durable.
-
Super
lightweight, rim constructed with premium Toray T700 & T800 carbon
fiber, best strength to weight ratio with no expense spared.
-
Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
-
Carbon Strip Reinforcement. Use unique
carbon strip to strengthen the spoke tension and stabilize rim structure
and reduce the rim weight.
-
Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.
-
Angled
spoke holes allows the nipple to pull straight in line with the spoke
for reduced stress, this results in fewer broken spokes and nipples.
Manufacturing process:
Our
Engineering team creates a unique fiber orientation which amplifies the
desired riding characteristics for a given rim. And each rim carries
its own layup schedule documents which are followed meticulously by the
layup workers, it ensures the accuracy of each rim in the production
process.
Our carbon rims are made in one piece molding,
each rim is made by one piece long carbon fiber, no wrinkles, to make
the strength of rim is the strongest. And we use a unique process to
remove the air bladder from the valve hole, so that the rim does not
have to be patched like traditional manufacturers use.
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
More information about our Warranty Policy.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
More about Carbonal carbon rim Quality Control.
