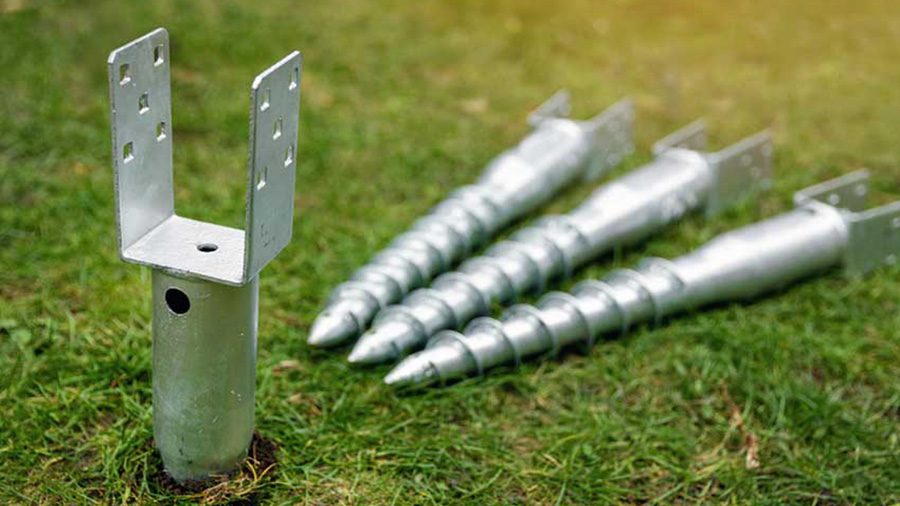

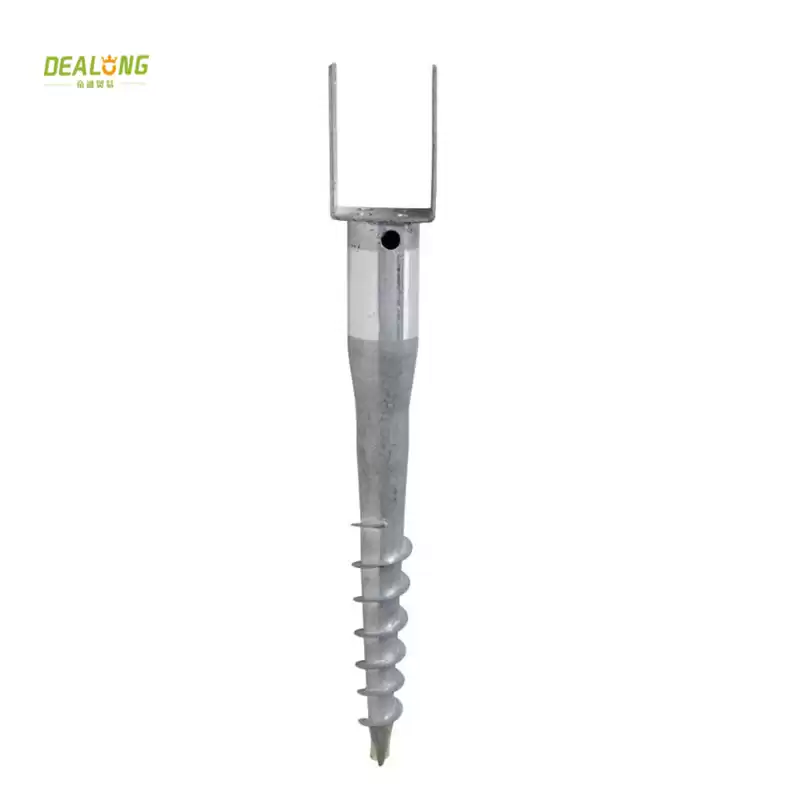

U Shape Flange Ground Screw Anchor Helical Pier Foundation for Garden Rooms Sunrooms Walkways

U shape flange ground screw is the preferred foundation in many applications, such as timber-frame housing, timber decking, garden rooms, walkways and fence construction, temporary site accommodation, bill board / advertising signs and many more applications.

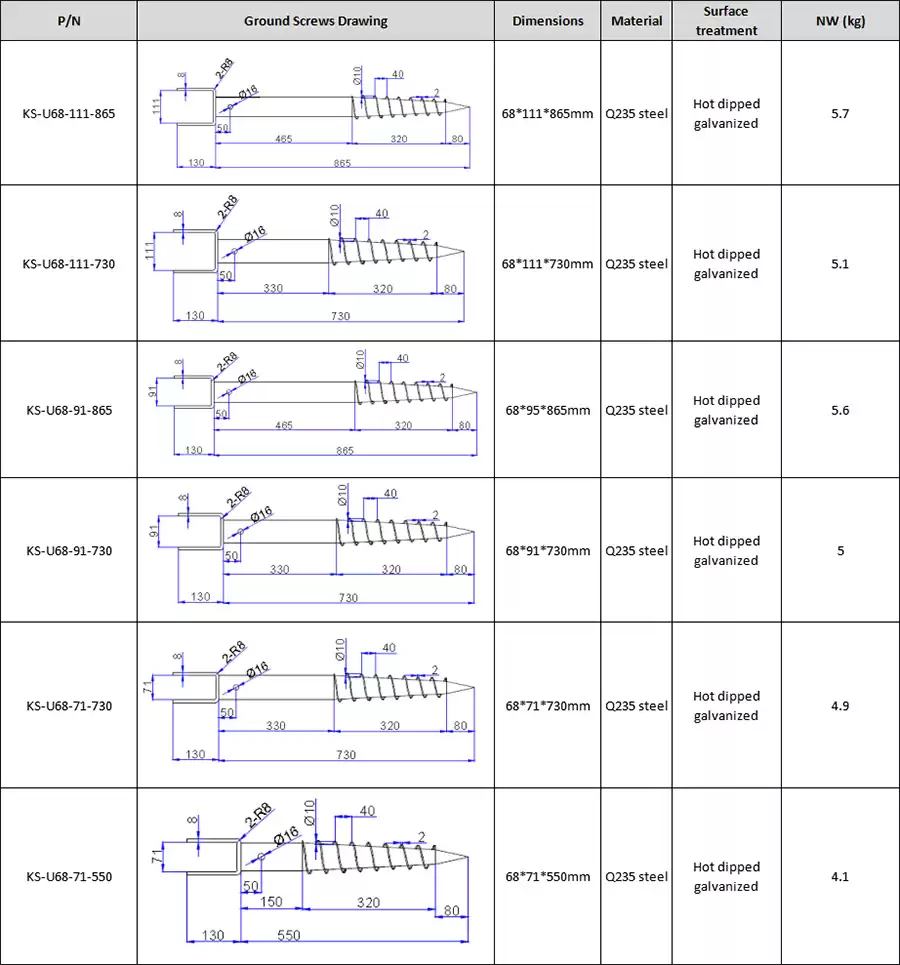

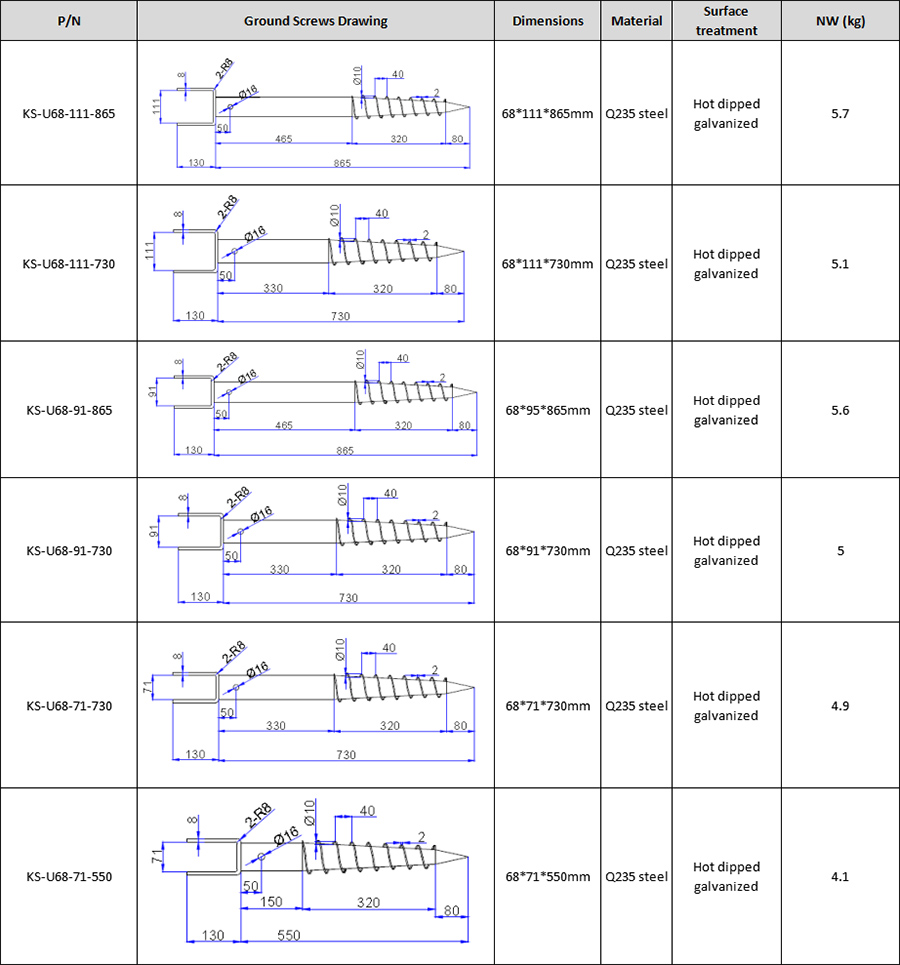

Specifications

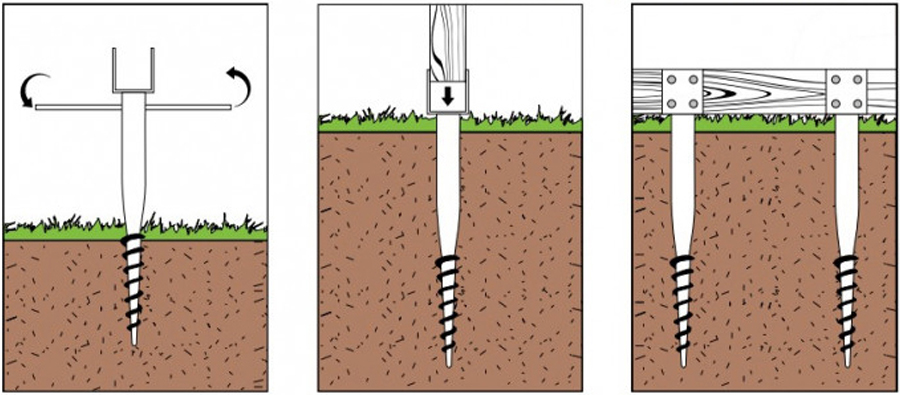

Installation instructions

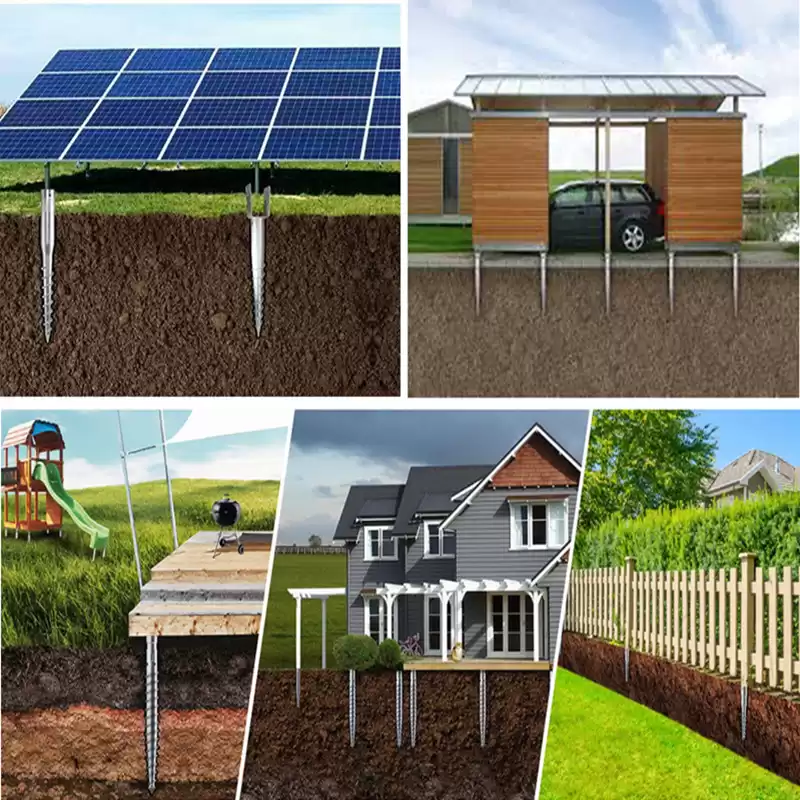

Where to use: helical piers are Suitable for fencing, gazebos, decking, cubby houses, sheds and carports. The ground screw stimup can be for both horizontal and vertical timber applications.
Step1:
Insert the earth anchors, twisting helical pile fence post until the striup base is level with the ground. Ensure all stirmups are secure and level construction.
Hint: In drought conditions,drive a Y-Post into the ground first. Remove it, then dampen the small hole with water to make the soil softer to make

screwing the stimp into the ground easier.

Step2:
Insert timber beam into the U-Braket,leaving a 10-20mm gap.
Hint: use a spacer to keep the gap uniform
Step3:
Fix team to U-Braket with one screw,ensure the beam is level and fasten all remaining screws.
Step4:
For pemanent fixation it is recommented that a bolt is inserted through the centre hole of the U-Braket.

U shape flange ground screw's advantages:

1.Ground screws are faster and cheaper to assembly then normal ground digging.

2.Using ground screws requires no excavation or concrete pouring and raves the landscape and vegetation untouched, they are

   easy to dismantle and relocate for temporary projects.

3.Many solutions to meet different customers requirements.

4.Ground screws are environmently friendly.

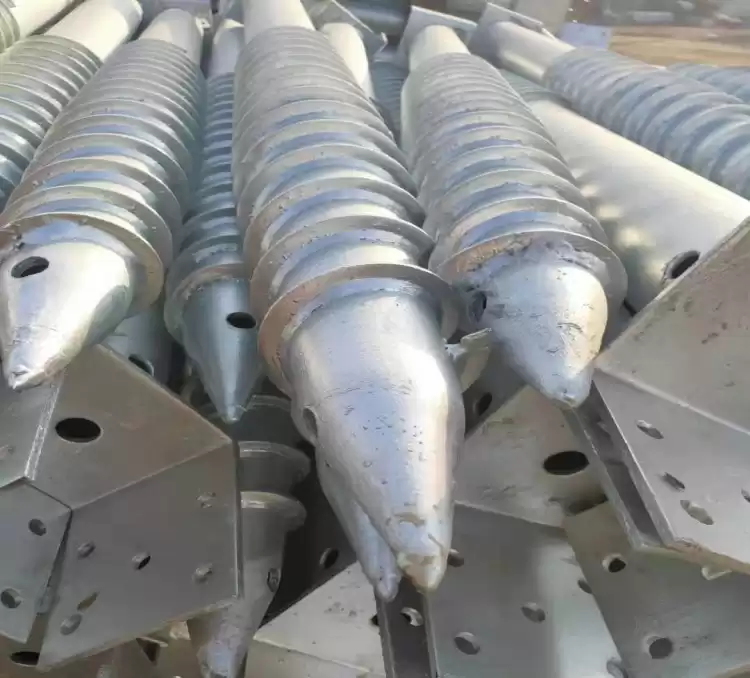

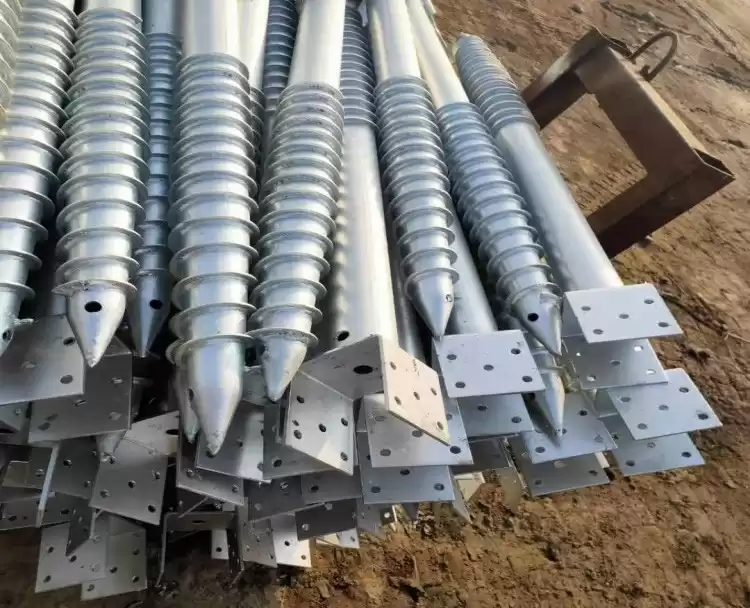

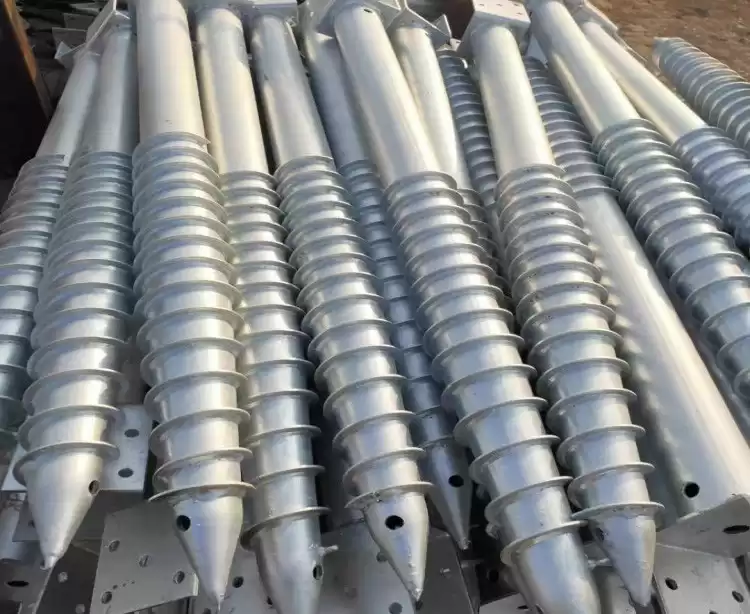

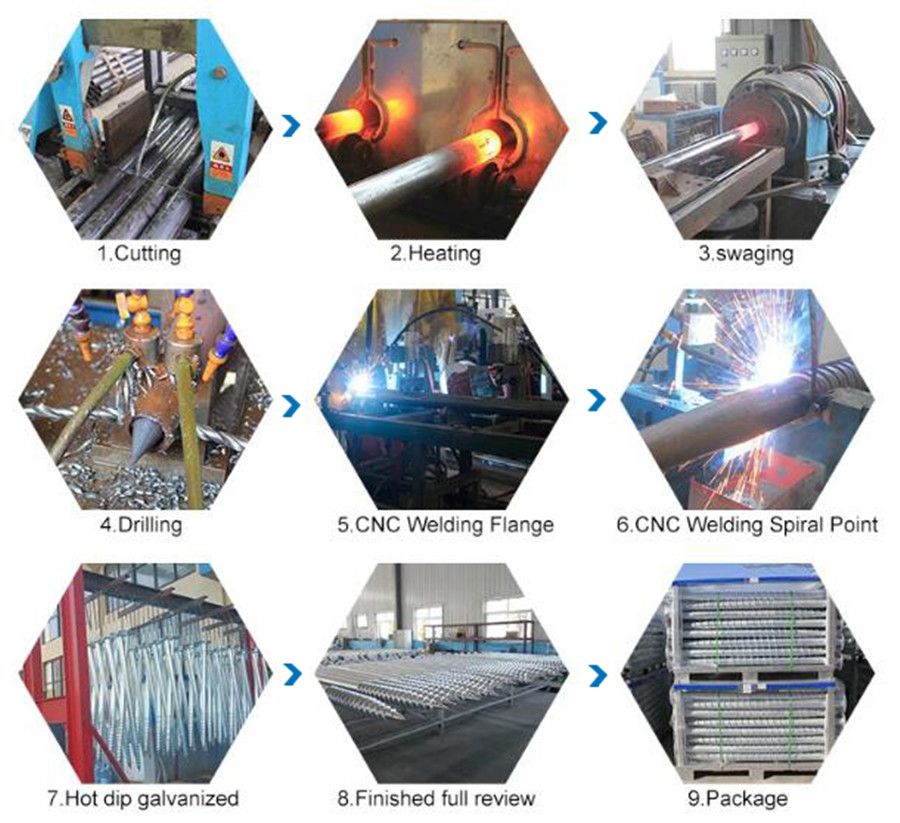

Production process of ground screws

Company certifications
