UC201 Bearing Technical Data:
Inside Diameter :12mm
Outside Diameter:47mm
Width :17mm
Bi : 31
Rows Of Balls:single row
Shaft Fastening:Grub Screws
Grub Screw: M6
Extended Inner Ring:both sides
Seal: 2-peace sealing system
Ring Material:Chrome Steel
Rolling Element Material Chrome Steel
Cage Material: Sheet Steel
Max. Tightening Torques (Nm) For Bearing Insert:5.5
Product weight: 0,210 Kg

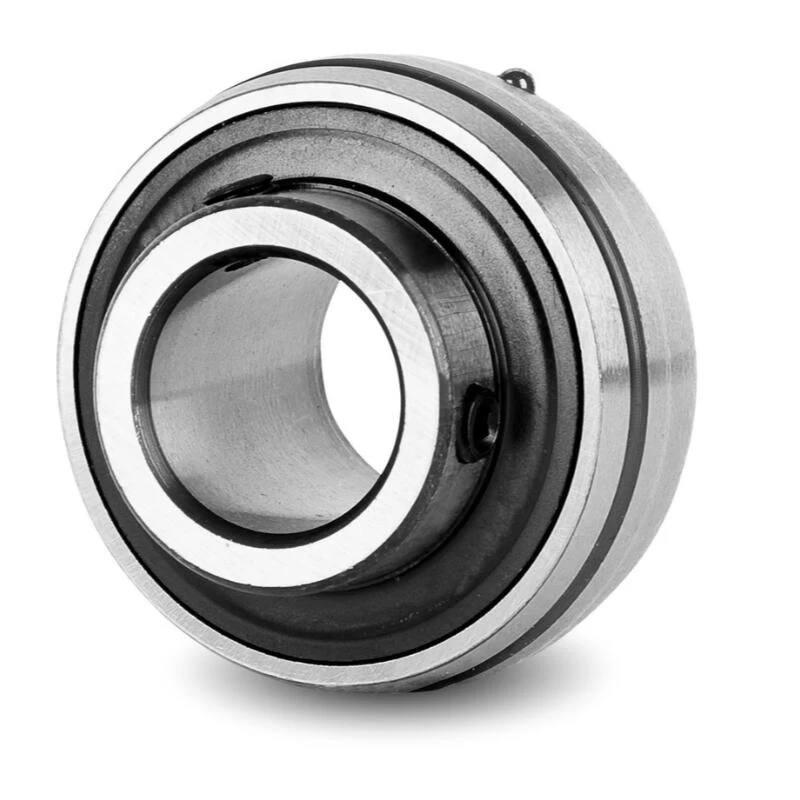

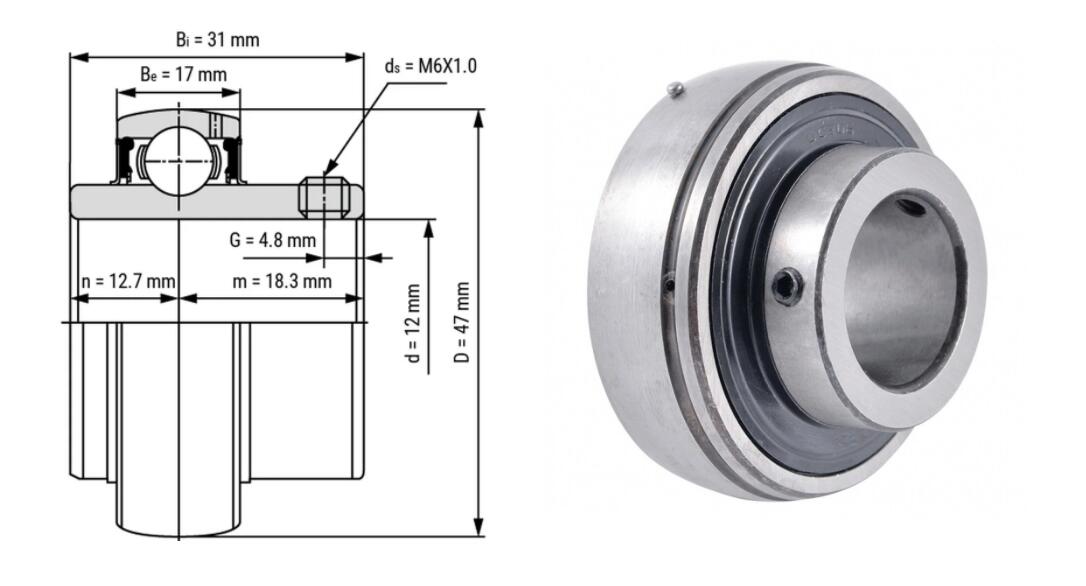

Bearing Picture:
We can produce other UC bearings ,for more infomations pls contact us free at seven@mklbearing.com
|
Typ
|
Shaft-Ø
|
Dimensions in mm
|
|
|
|
|
|
|
Weight
|
|
|
in mm
|
D
|
Bi
|
Be
|
n
|
m
|
G
|
ds
|
(kg)
|
|
UC201
|
12
|
47
|
31
|
17
|
12,7
|
18,3
|
4,8
|
M6X1.0
|
0,21
|
|
UC202
|
15
|
47
|
31
|
17
|
12,7
|
18,3
|
4,8
|
M6X1.0
|
0,19
|
|
UC203
|
17
|
47
|
31
|
17
|
12,7
|
18,3
|
4,8
|
M6X1.0
|
0,18
|
|
UC204
|
20
|
47
|
31
|
17
|
12,7
|
18,3
|
4,8
|
M6X1.0
|
0,16
|
|
UC205
|
25
|
52
|
34
|
17
|
14,3
|
19,7
|
5,5
|
M6X1.0
|
0,2
|
|
UC206
|
30
|
62
|
38
|
19
|
15,9
|
22,2
|
6
|
M6X1.0
|
0,32
|
|
UC207
|
35
|
72
|
42
|
20
|
17,5
|
25,4
|
6,5
|
M8X1.0
|
0,46
|
|
UC208
|
40
|
80
|
49
|
21
|
19
|
30,2
|
8
|
M8X1.0
|
0,62
|
|
UC209
|
45
|
85
|
49
|
22
|
19
|
30,2
|
8
|
M8X1.0
|
0,68
|
|
UC210
|
50
|
90
|
51,6
|
24
|
19
|
32,6
|
9
|
M10X1.25
|
0,8
|
|
UC211
|
55
|
100
|
55,6
|
25
|
22,2
|
33,4
|
9
|
M10X1.25
|
1,11
|
|
UC212
|
60
|
110
|
65,1
|
27
|
25,4
|
39,7
|
10,5
|
M10X1.25
|
1,54
|
|
UC213
|
65
|
120
|
65,1
|
28
|
25,4
|
39,7
|
12
|
M12X1.5
|
1,86
|
