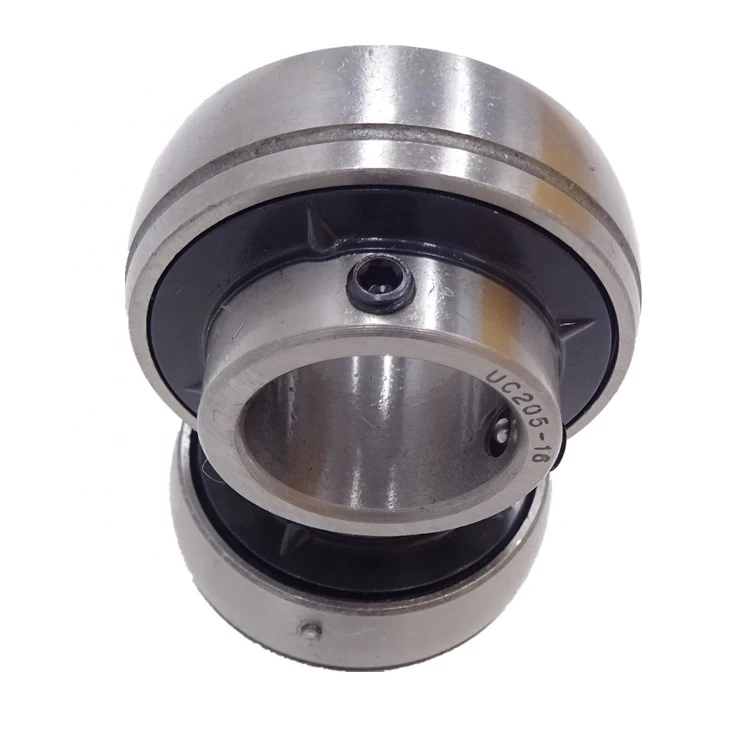

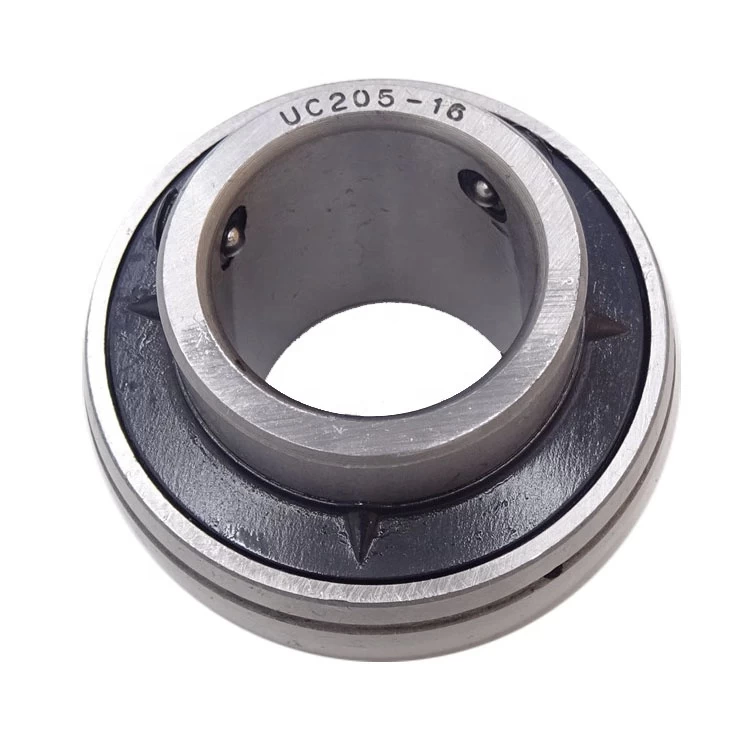

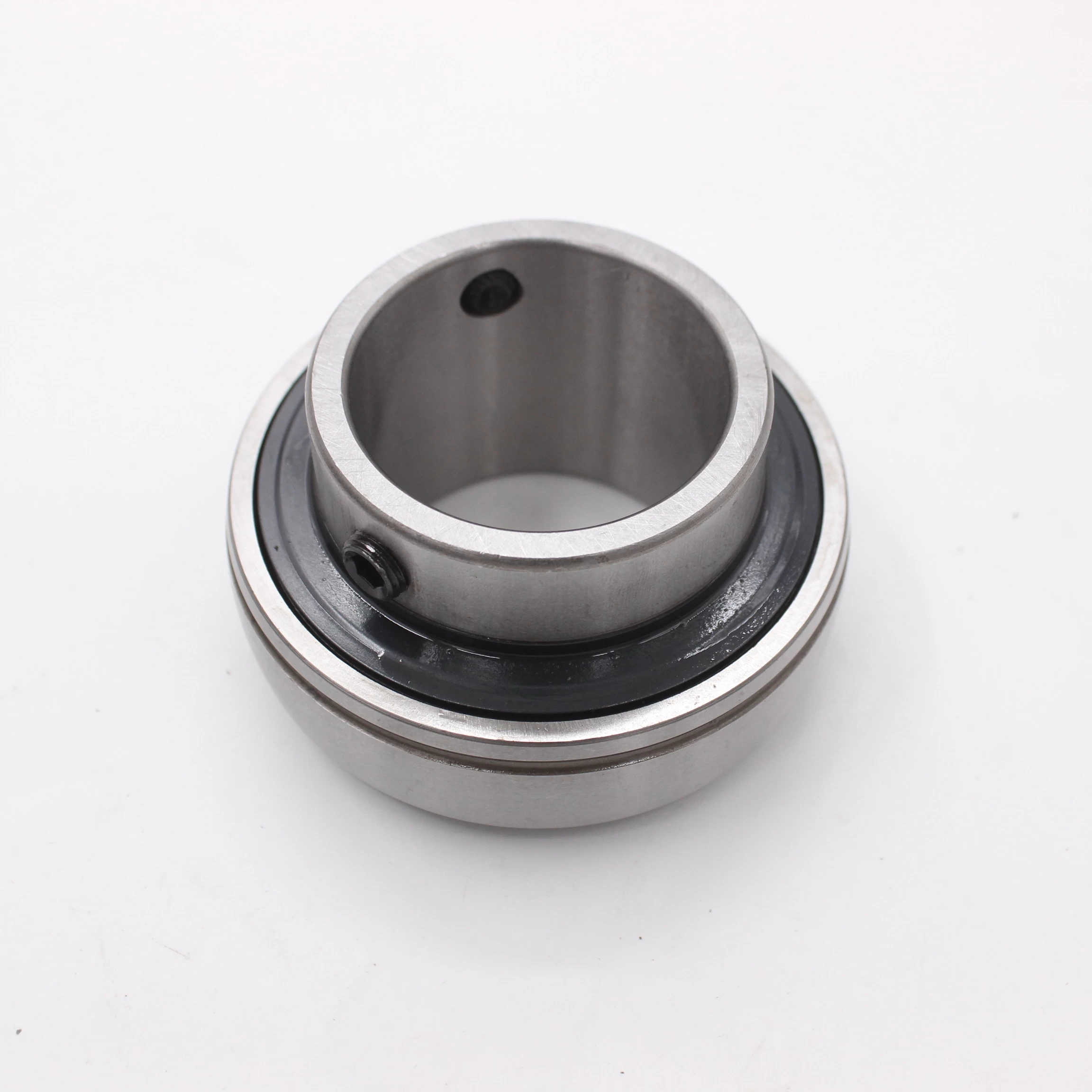

UC205-16 Insert Ball Bearing



1.0000 inner diameter*  2.0472 in Outer diameter *1.3390 Width UC205-16 insert bearings are produce with round bore ,and set screw,we have this bearings in stock now .


Facebook Twitter Pinterest LinkedIn 分享





1"  UC205-16 Mounted Bearing Description:


Round bore type

Inner Diameter: 1" inch(25.4mm)

Outer Diameter: 52mm

Inner Ring Width: 34.1mm

Outer Ring Width: 16mm

Material :Chrome steel Gcr15


Dynamic load rating Cr: 13967 N

Static load rating Cor: 7784 N


OEM Number :VS-216,INS-SC-100,GY1100KRRB,YW250-1,UC205-16,UG216NL,UC205-100D1,YAR205-100,2-1 INSERT




We can produce bearings with UC205,UC205-13,UC205-14,UC205-15,UC-205-16.
