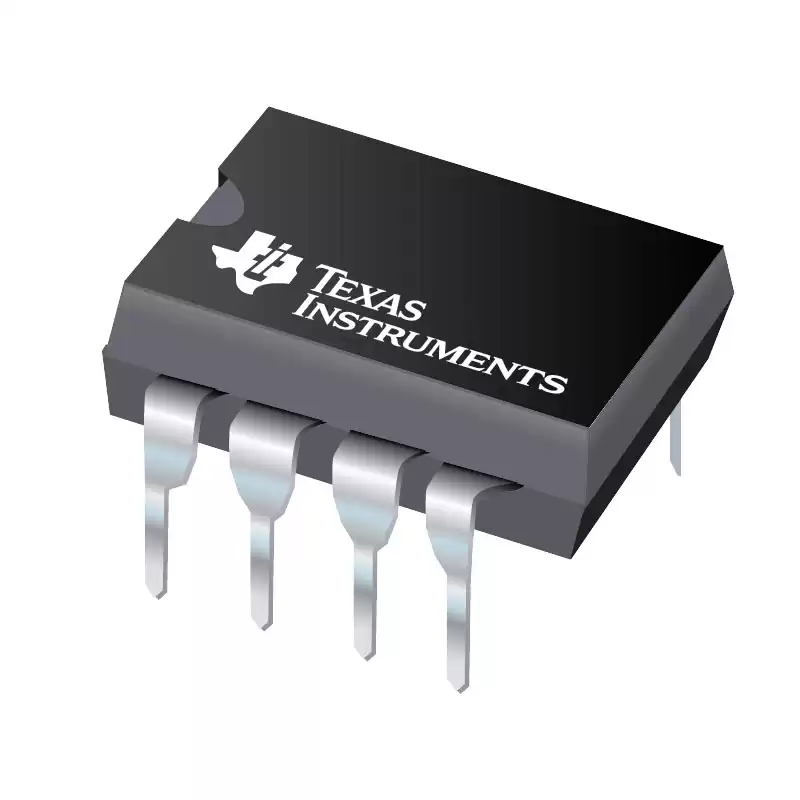

UC3846DWTR TI Switching Controllers
Parameter
| Manufacturer |
Texas Instruments |
| Product Category |
Switching Controllers |
| Mounting Style |
SMD/SMT |
| Package / Case |
SOIC-16 |
| Number of Outputs |
2 Output |
Series
|
UC3846 |
Input Voltage
|
40 V
|
Output Voltage
|
5.1 V |
Minimum Operating Temperature
|
0 C
|
Maximum Operating Temperature
|
+ 7 C
|
Packaging
|
Reel/Cut Tape
|
Factory Pack Quantity
|
2000 |
Introduction
The UC3846DWTR is a high-performance current-mode PWM controller chip designed for use in various power supply applications, including AC/DC and DC/DC converters. This chip features an operating frequency range of up to 500kHz and can provide precise control of the output voltage and current. It includes a built-in error amplifier, a current-sense amplifier, a voltage reference, and a high-speed output driver. Other features include soft-start, shutdown, and overcurrent protection. The UC3846DWTR is available in a small, space-saving 16-pin TSSOP package, making it suitable for use in compact power supply designs.
